BRE.MA. VEKTOR 25-13 R

Description

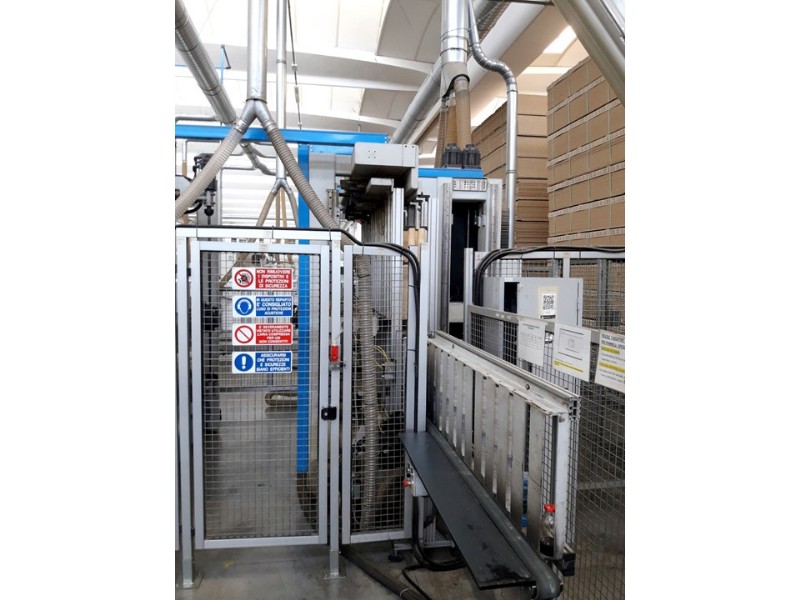

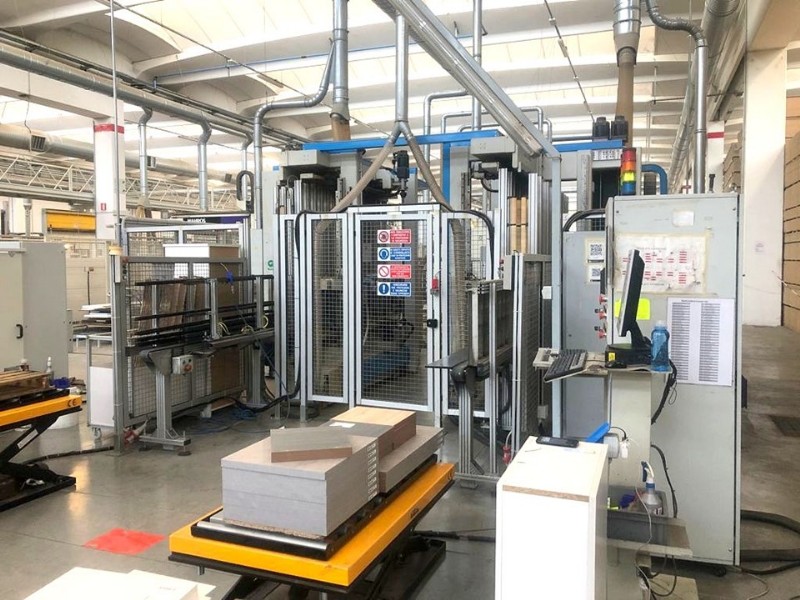

Drilling cell complete of nr. 2 BRE.MA. VEKTOR 25-13 R + Lateral Rototranslator

CONTROL SYSTEM
• Numerical control ALBATROS
TECHNICAL FEATURES
• Useful working area in “X” (min – max): 300 – 3.000 mm
• Useful working area in “Y” (min – max): 40 – 1.300 mm
• Useful working area in “Z” (min – max):  8 – 48 mm
PANEL MOVEMENT
• Preloading conveyor L=2.000 mm
• Connecting conveyor L=2.000 mm
• Lateral rototranslator L=3.200 mm (stroke 2.500 mm)
• Unloading conveyor L=2.000 mm
OPERATING UNIT 1° MACHINE
• Nr. 1 Boring head complete of:
– Nr. 10 + 10 independent spindles for vertical boring in “X”
– Nr. 10 independent spindles for vertical boring in “Y”
– Nr. 3 + 3 independent spindles for horizontal boring in “X”
OPERATING UNIT 2° MACHINE
• Nr. 1 Boring head complete of:
– Nr. 7 independent spindles for vertical boring in “X”
– Nr. 13 independent spindles for vertical boring in “Y”
– Nr. 2 + 2 independent spindles for horizontal boring in “X”
• Nr. 1 Revolver tool changer with nr. 10 positions
PREDISPOSITIONS AND ACCESSORIES
• Barcode reader
NORM AND OPTIONAL FOR SECURITY
• Copy of original EC declaration of Conformity
• Lateral protection grids
