Description

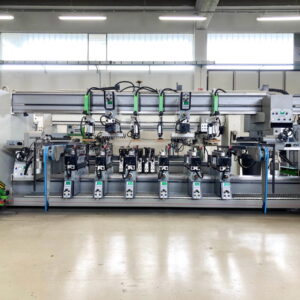

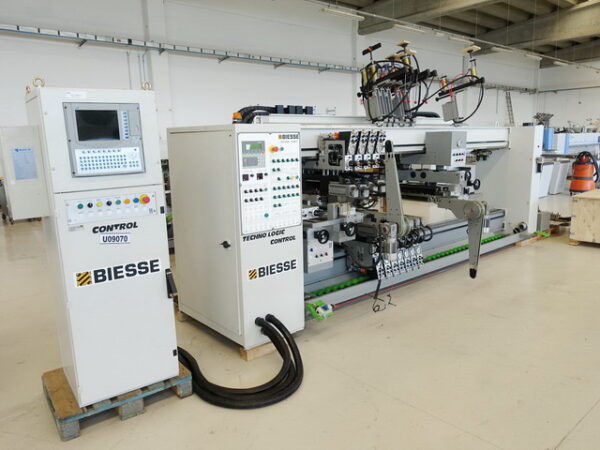

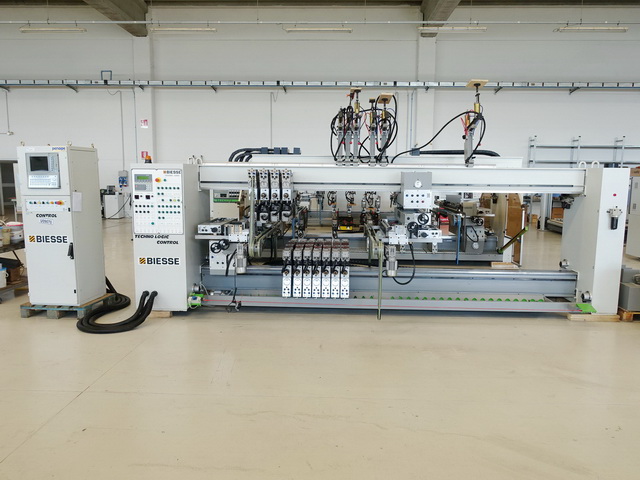

Electronic machine, controlled by N.C.
Numerical Control Type CNI IPC 500 + Electronic Programmer RT 483
Software Tooling System + Woodmaster
Through-feed motorized conveyoring belts (No. 2), Feeding speed (m/min) 35 – 80
Horizontal units/supports (No.) 2
Drilling heads for each horizontal unit (No.) 1
Splindles for each horizontal drilling head (No.) 21
Max. working width (mm) 3200
Min. working width (mm) 220
Bottom vertical units/supports (No.) 7
Drilling heads/blocks for each bottom vertical unit (No.) 2 x Kw 1,5
Top vertical units/supports (No.) 4
Drilling heads/block for each top vertical unit (No.) 2 x Kw 1,5
Vertical top pressure clamps (No.) 6
Motorized endless screws to evacuate wastes/chips (No.) 2
The CNC controls the movement (X axe) of the mobile horizontal unit
The CNC controls the movement (X axe) of all the vertical units
The CNC controls the movement (Y1 and Y2 axes) of the boring heads
The CNC controls the movement (Y axe) of the stops
The CNC controls the movement (X axe) of the conveyor belts
The CNC controls the vertical movement (Z axe) for the drilling depth of the drilling units
