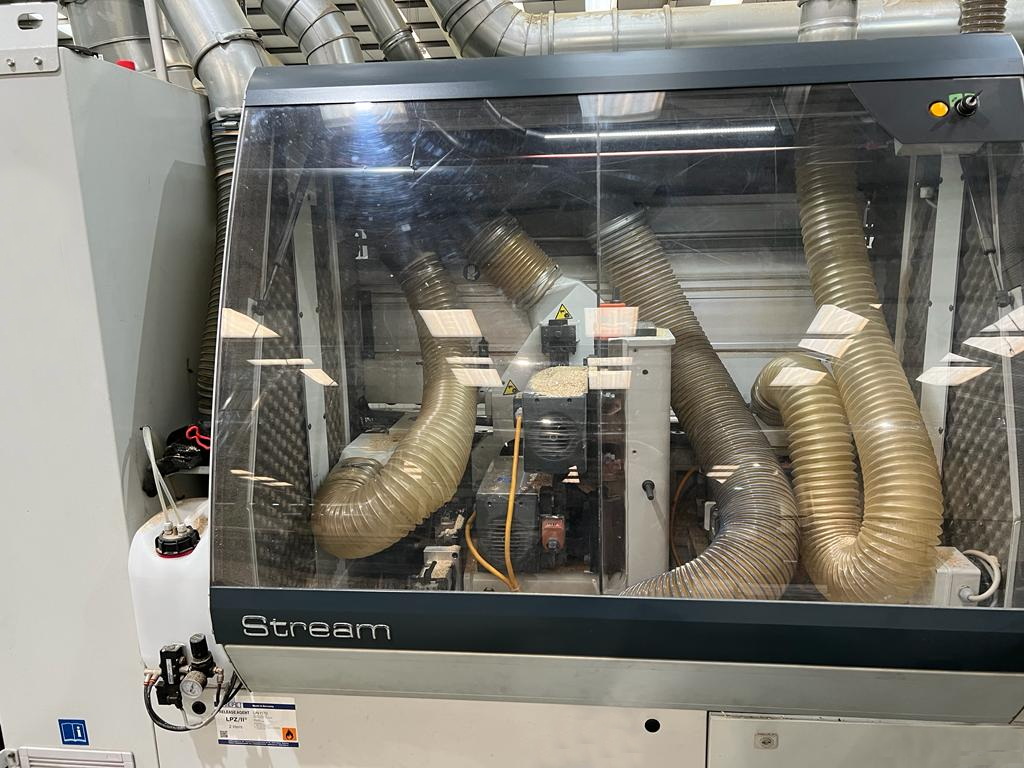

Universal DOUBLE-SIDE SIZING & EDGE BANDING MACHINE (for both 1st and 2nd pass)
Edges (tape) thickness in rolls (min/max) mm 0,3 – 3
Panels thickness (min/max) mm 10 – 60 + Working width (min/max) mm 240 – 3000
Numerical Control /Software SINITRA
Adjustable feeding speed (m/min ) 10 – 40 (ca.)
Safety and sound-proof enclosures/cabins. Distance of the Disappearing Dogs (mm) 500
SIZING PART (for each side):
Anti-chipping Milling Unit AS 10 PNEU (Kw 5,8)
N° 2 Hogging Units (1 Top + 1 Bottom) DT 10 (Kw 5,8 x 2)
Pre-milling Unit (vertical joint trimmers) by N.C. RT 20 (Kw 3,5 x 2)
Spraying unit (Anti-sticking liquid)
EDGE-BANDING PART (for each side):
Glueing Unit (P.U.R. Glue + Quick Melt unit) PURBlue EC
Height adjustment of the band by N.C. (Z AXIS)
Band Pressure zone (N.C. adjustment) . Edge coils supporting unit (No. 6 reels)
Snipping (end-cutting) unit IT 90-X (Kw 0,65 x 2) 36 m/min – 0° – 25°
Rough Trimming unit RS 10 (Kw 2 x 2) + PRO NESTING
Fine Trimming unit (Multi-profile, by N.C.) RF 40 (Kw 1 x 2) + PRO NESTING
Multi-Profile Copying unit by N.C (fine and contour trimming) AR 80 (Kw 0,65 x 2) – 32 m/min. ROTAX (fast release)
Milling grooving Unit – FB 30 (Kw 5 x 1) 0 – 90°
Profile Scraping unit (Multi-profile, by N.C.) RB 40 + PRO NESTING
Glue scraping unit RC 20 + Spraying Unit (for polishing liquid) + Buffing unit SZ30 (2 x Kw 0,37)
OPTION: Hot Air Heater (to reactivate the color of plastic tape) PH 10
