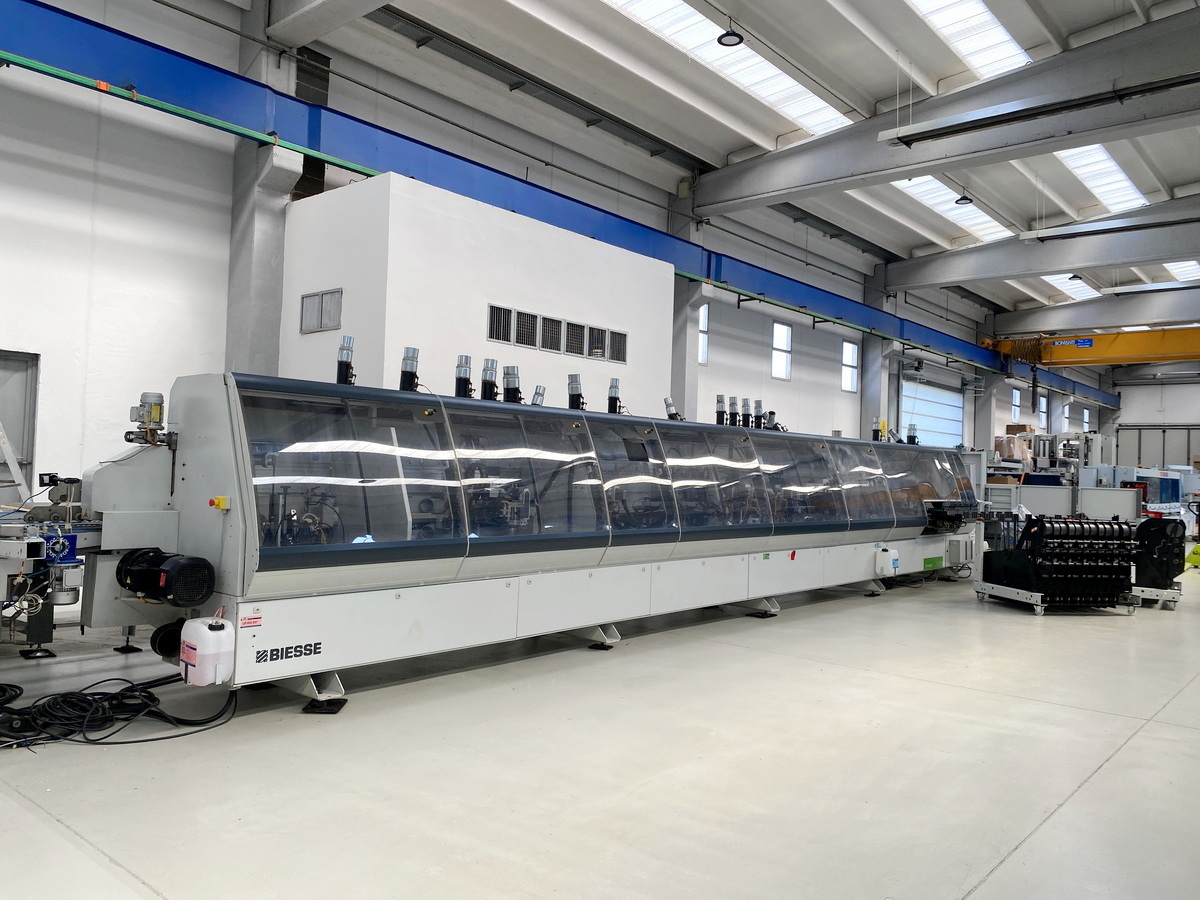

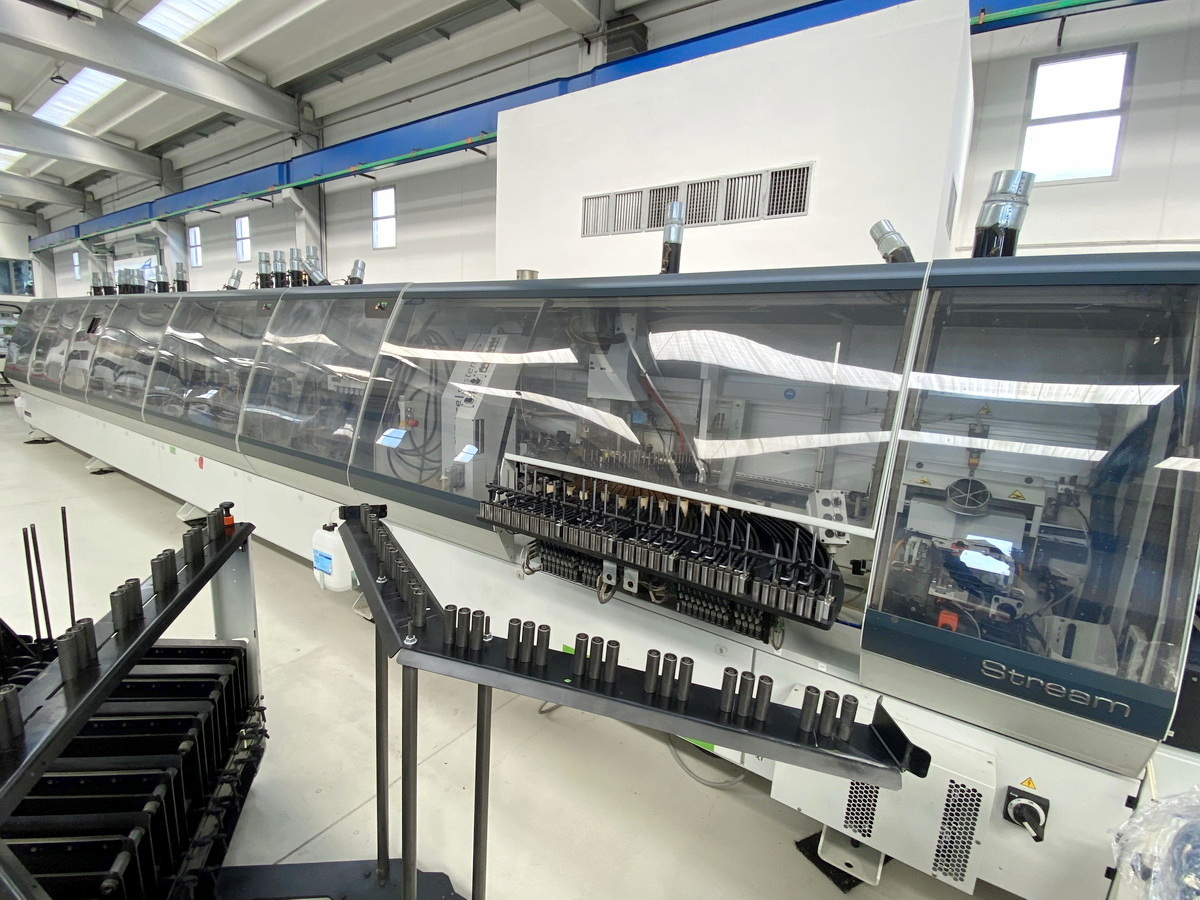

SINGLE-SIDE SIZING and EDGE BANDING MACHINE (LEFT-side machine)
Edges (tape) thickness in rolls (min/max) mm 0,4 – 3
Panels thickness (min/max) mm 10 – 60
Numerical Control PC with Sintra Software
Professional Feeding chain (like the one of the industrial Sizing and Edge banding machines)
Spraying unit (Anti-sticking liquid)
Panels in-feed system
Milling Unit (vertical Joint Trimmers) RT 20
Glueing Unit SP 30 (P.U.R. Glue + Quick Melt unit) Kit PUR Blue 4
Glueing Unit (Thermofusion with hot air) AirForce System P4Con
Edge coils supporting unit (No. 24 reels)
Snipping (end-cutting) unit IT 90-S (pneu)
Rough Trimming unit Duo System (RS 10)
Fine Trimming unit RF 10 (minimum panel thicknees mm 4)
Fine Trimming unit (Multi-profile, adjustable by N.C.) RF 40
Spraying Unit (for sliding liquid)
Multi-Profile Copying unit (adjustable by N.C) for fine and contour trimming (AR 80)
Profile edge scraping unit RB 40 (Multi-profile, adjustable by N.C.)
Glue scraping unit RC20
Buffing unit SZ40 (speed adjustable by NC)
Milling grooving unit EB 60 FW (tool changer with 5-folds magazine)
Hot Air Heater (to reactivate the color of plastic tape) PH10
