C.N.C. WORKING CENTER 3 axes (X-Y-Z) – Goose-neck type
– Movable panel (workpiece), static working head – Horizontal position of the panel (workpiece)

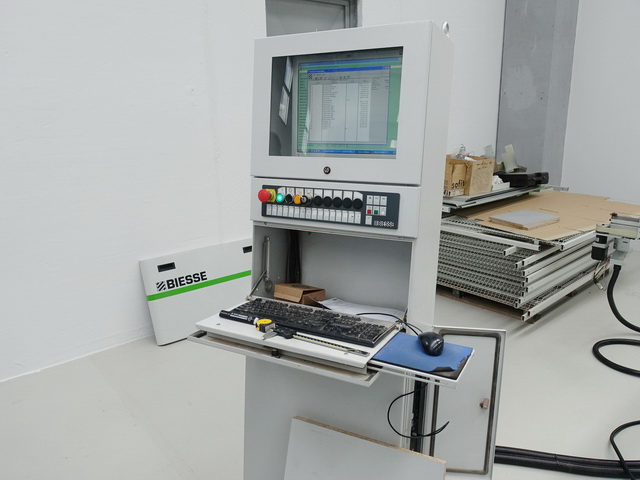

– Numerical Control with Software Biesse Works
– Safety cabin (enclosure) of the working head – Front emergency carpets
– No. 1 In-feeding table (with motorized belts) SX
– No. 2 Workpieces fixing clamps (for the panels introduction in the working area)
– No. 1 Out-feeding table (with motorized belts) DX
– Max. useful working area (X – Y – Z) mm 3000 x 1000 x 60
– Minimum workpieces dimensions (X – Y – Z) mm 200 x 70 x 8
(for longer panels than mm 2000, minimum thickness is mm 13)
– Maximum workpieces dimensions (X – Y – Z) mm 3000 x 1000 x 60
– Total installed power Kw 20

BOTTOM WORKING UNITS:
– No. 1 Vertical electro-spindle HSK D-50 (power HP 4.8) with Inverter
– No. 1 Circular Grooving Saw (on X axe) dia. mm 150, power HP 2,3 with Inverter
– No. 29 Vertical drilling spindles
– No. 10 Horizontal drilling spindles (8 in X axe + 2 in Y axe)
TOP WORKING UNITS:
– No. 1 Vertical electro-spindle HSK D-50 (power HP 4.8) with Inverter
– No. 1 Circular Grooving Saw (on X axe) dia. mm 150, power HP 2,3 with Inverter
– No. 29 Vertical drilling spindles
– No. 10 Horizontal drilling spindles (8 in X axe + 2 in Y axe)
