C.N.C. WORKING CENTER (POINT TO POINT) with 4 axis (X-Y-Z-C)
Goose-neck type
Numerical Control XP 600, with Software BiesseWorks

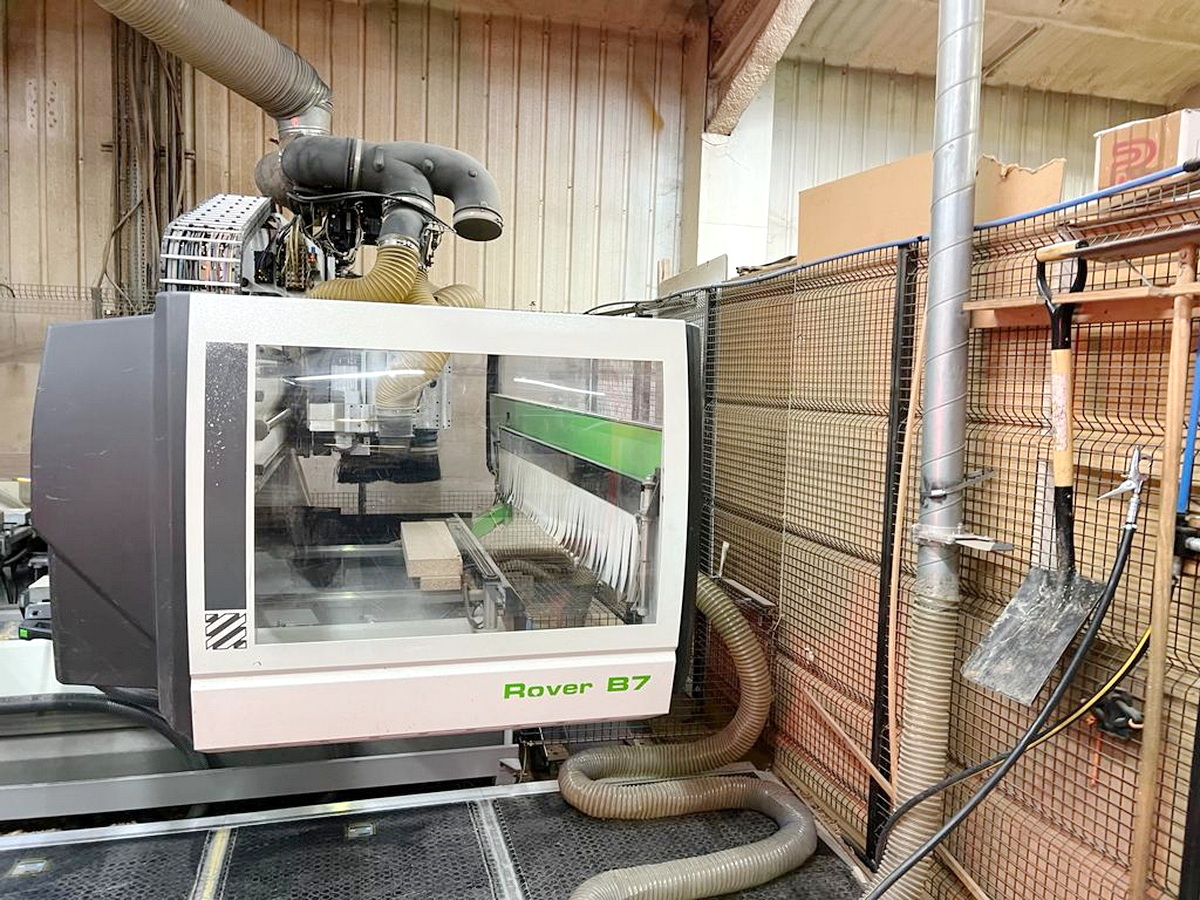

Safety cabin (enclosure) of the working head
Front emergency carpets

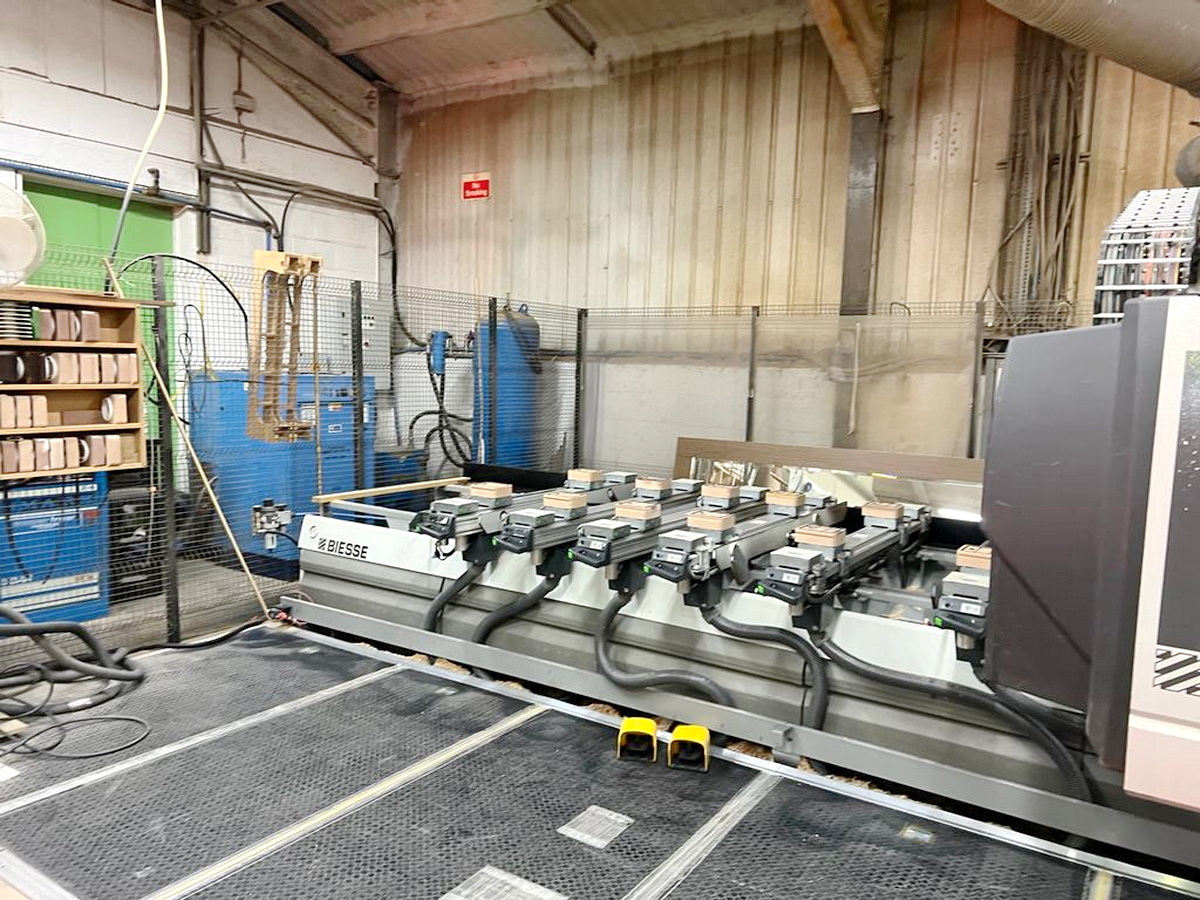

Working table with pods and rails
No. 6 Supports rails ATS (mm 1525 long)
Automatic Tools Changing System – Tools storage plate (No. 12 folds -positions) revolver type
Max. useful working area (X – Y – Z) mm 3390 x 1552 x 180

No. 2 Working areas
Vacuum pump (capacity 250 m3/h)
Motorized carpet to evacuate chips and wastes
Separate electric and command cabinet

WORKING GROUPS (TOP):
– Independent vertical boring spindles (No.) 14
– Independent horizontal boring spindles (No.) 8 (4 in x + 4 in Y)
– Circular Saw (on X axis) dia. (mm) 120
– Vertical electro-spindle HSK F63 (Peak Power)
