“NESTING” CELL with 4-axes (X-Y-Z-C) CNC working Center, composed by:

K09040A) AUTOMATIC LOADING/IN-FEEDING SYSTEM (type B) also for thin panels, with scissor
table, movable arm (Sweeping Arm) with vacuum suction cups,

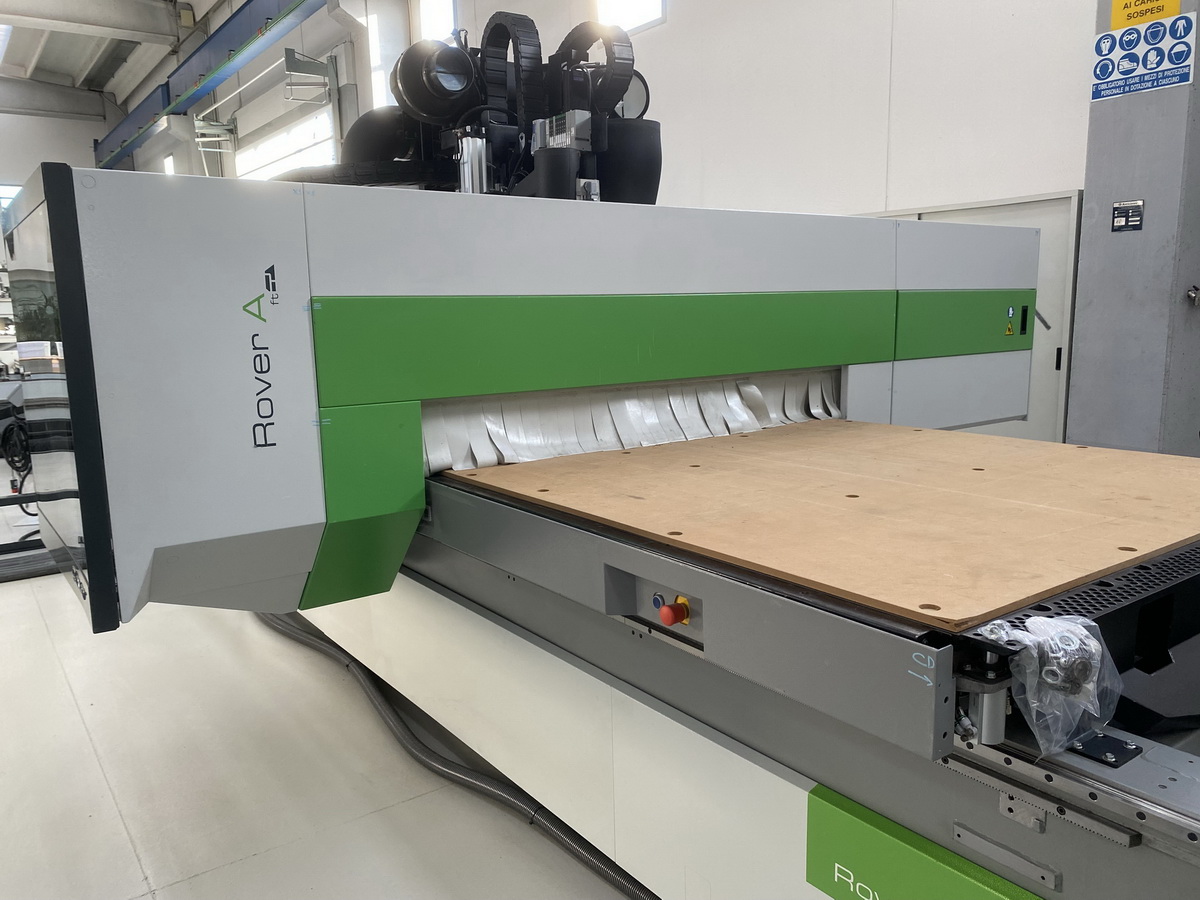

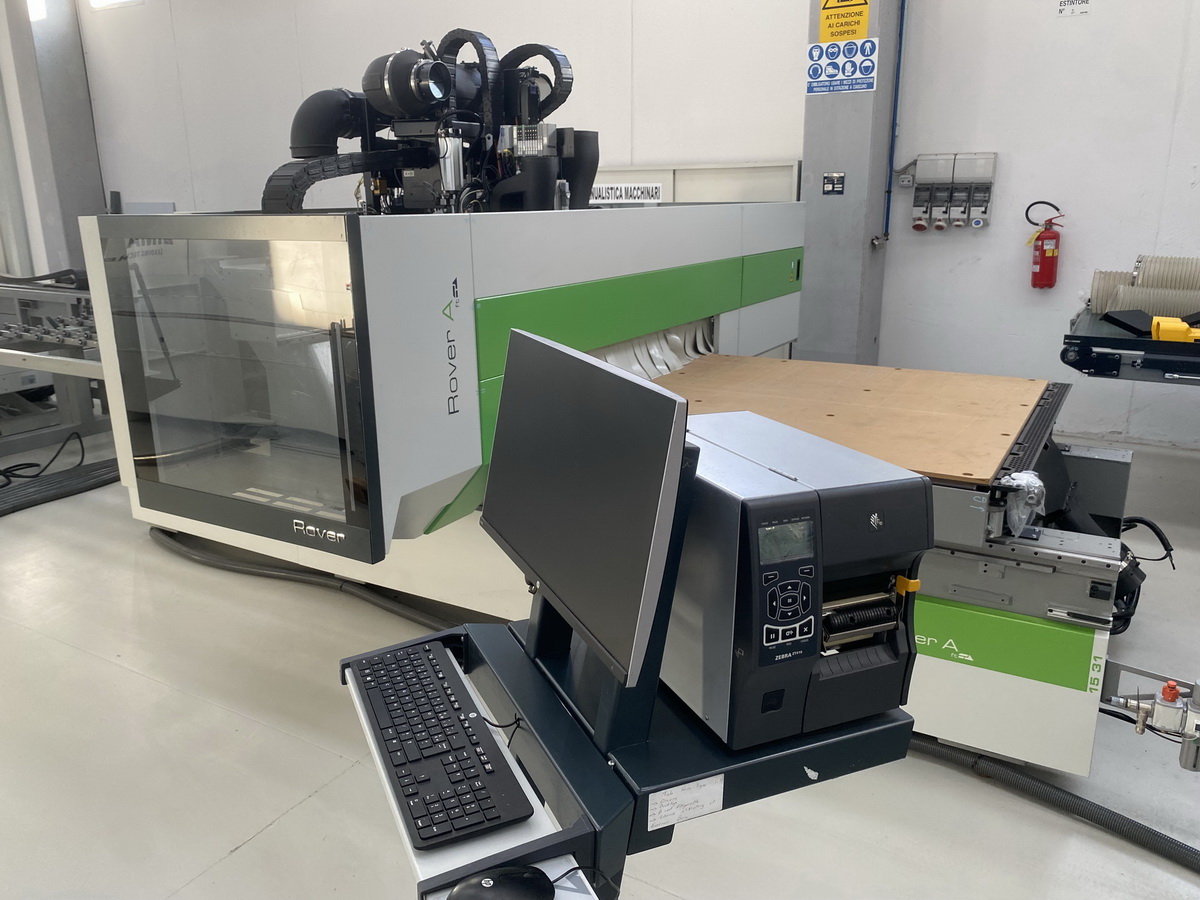

K09040B) CNC “nesting” 4-axes (flat table) “BIESSE” Mod. Rover A – FT 1531
Gantry-drive (axe X) machine
Numerical Control BH660 (WRT) with Software bSolid (3D CAD-CAM) + bNest
Safety cabin (enclosure) of the working head Bumper
Unique flat working table FT
Automatic Tools Changing System with two (2) Tools storage plates
1st Tools storage plate with 16 folds (on X axe) + the 2nd (revolver-type) with 8 folds (on Y-axe)

Max. useful working area (X – Y – Z) mm 3100 x 1560 x 170
No. 8 Working areas (Multizone) – No. 3 Vacuum pumps (capacity 250 m3/h each)
Separate electric and command cabinet – Total installed power (Kw) 39,45

WORKING GROUPS (TOP):
No. 10 Independent vertical boring spindles (5 in X + 5 in Y)
Drilling head BH 10 motor-power (Kw) 3
No. 1 Aggregate HSK F63 as Circular Saw (max. diam mm 215)
No. 1 Vertical electro-spindle HSK F63 (C-axe at 360° – MK259), motor power (Kw) 19,2

K09040C) AUTOMATIC OUT-FEEDING SYSTEM (type 1536) with motorised belt (length mm 4410)
