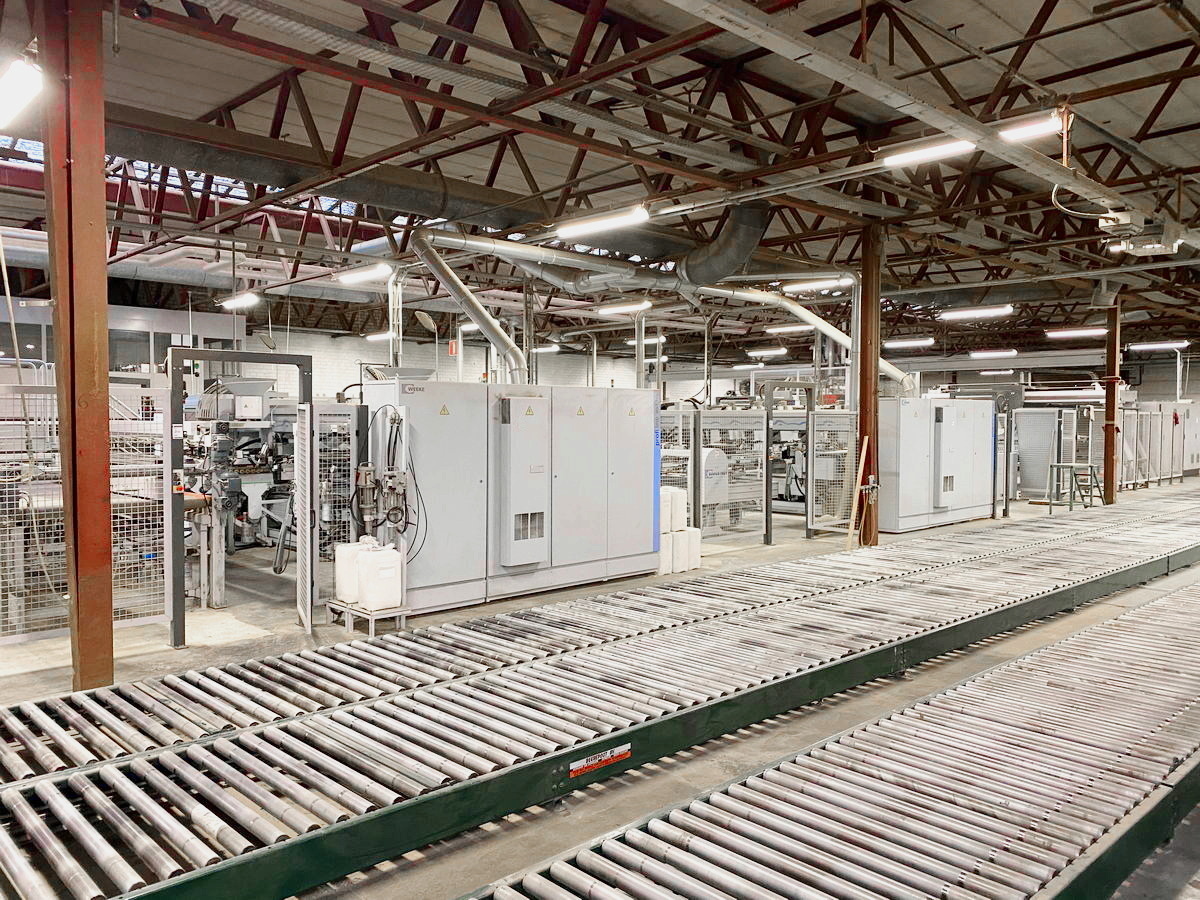

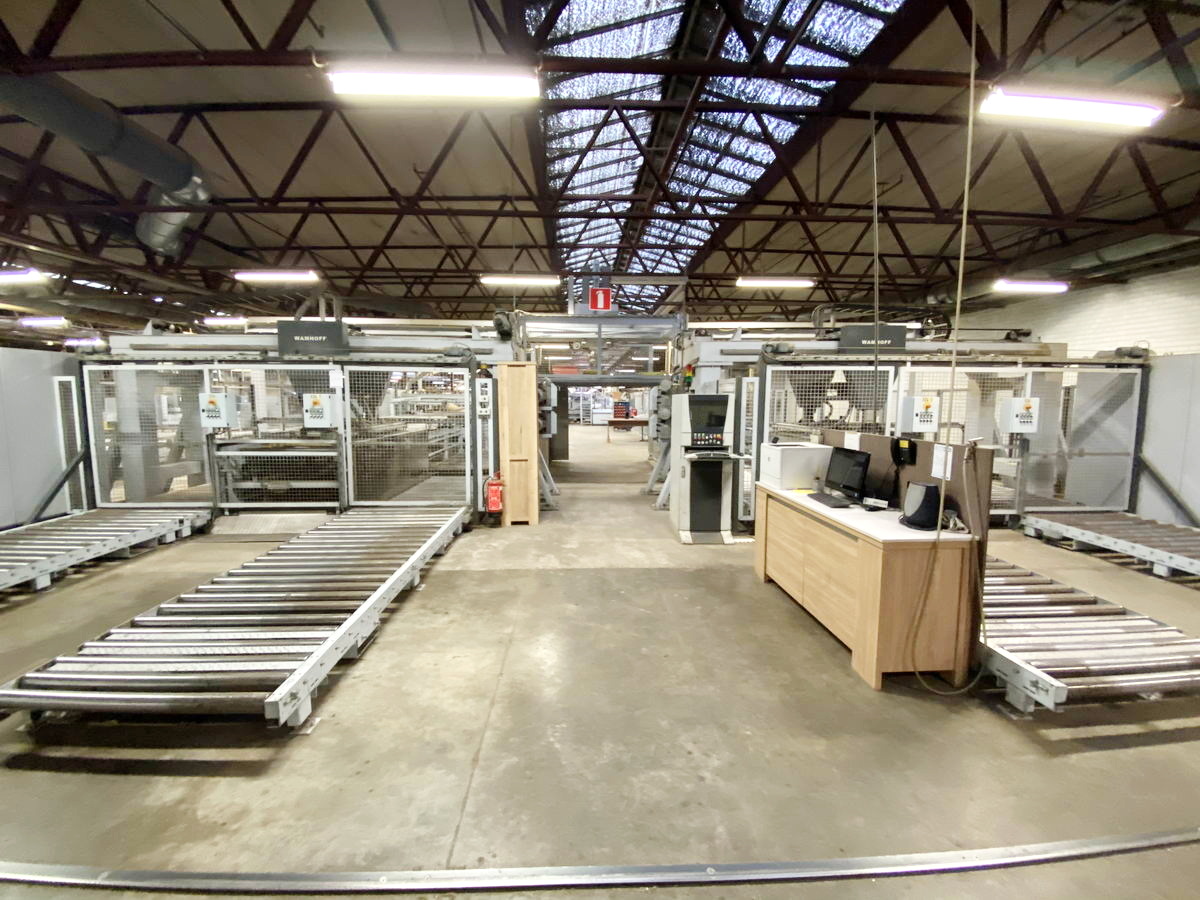

CNC Flexible Automatic through-feed DRILLING and DOWELS INSERTING LINE
Min/Max workpieces (panels) width (X axis): mm 250 / 3000
Min/Max workpieces (panels) thickness (Z axis): mm 10 (12) / 60
Min/Max workpieces (panels) length-depth (Y axis): mm 100 / 1100
Adjustable feeding speed (to in-feed and out-feed panels) until 120 m/min

A) Loader (gantry-portal) “WAMHOFF” Double Station, Mod. PL-SZB-02/E (max 24 cycles/min)
B) Motorized Roller table “VENJAKOB” VDK LQ 1000 with turning device 90° (length to crosswise)

C) Gantry (Portal) Drilling machine, with C.N. “WEEKE” BST 100/30 Powerline
No. 5 lower vertical groups, tot. 10 heads with 40 spindles each. (total 400 spindles)
No. 2 horizontal groups (1 right+1 left) with 4 heads & 26 spindles (52 right + 52 left), tot 104

D) Connection transfer, with upsidedown turning machine (180°) “BARGSTEDT” P/TTL/400/12/30

E) Gantry (Portal) Drill & Dowel Inserting Machine, with N.C. “WEEKE” BST 100/30 Powerline
No. 5 lower vertical groups, tot. 10 heads with 40 spindles each. (total 400 spindles)
No. 2 horizontal groups (1 right+1 left) with 8 insertion nozzles each (8 right+8 left), total 16

F) “WAMHOFF+VENJAKOB” transfer (cross rollers conveyor out of BST 100, motorised belt with 90° bend, longitudinal motorised roller conveyor towards the Splitter)

G) Splitting saw (Splitter) “WAMHOFF” Mod. TS-01
H) Brushing-cleaning machine “WANDRES”

I) Stacker (gantry-portal) “WAMHOFF” Double Station, Mod. PL-SZB-02/E (max 24 cycles/min)
