CNC Flexible Automatic through-feed DRILLING and DOWELS INSERTING LINE
– Min workpieces (panels) width (X axis): mm 250
– Max workpieces (panels) width (X axis): mm 3000

– Min workpieces (panels) thickness (Z axis): mm 10 (12)
– Max workpieces (panels) thickness (Z axis): mm 60

– Min workpieces (panels) length-depth (Y axis): mm 100
– Max workpieces (panels) length-depth (Y axis): mm 1100

– Adjustable feeding speed (to in-feed and out-feed panels) until 120 m/min

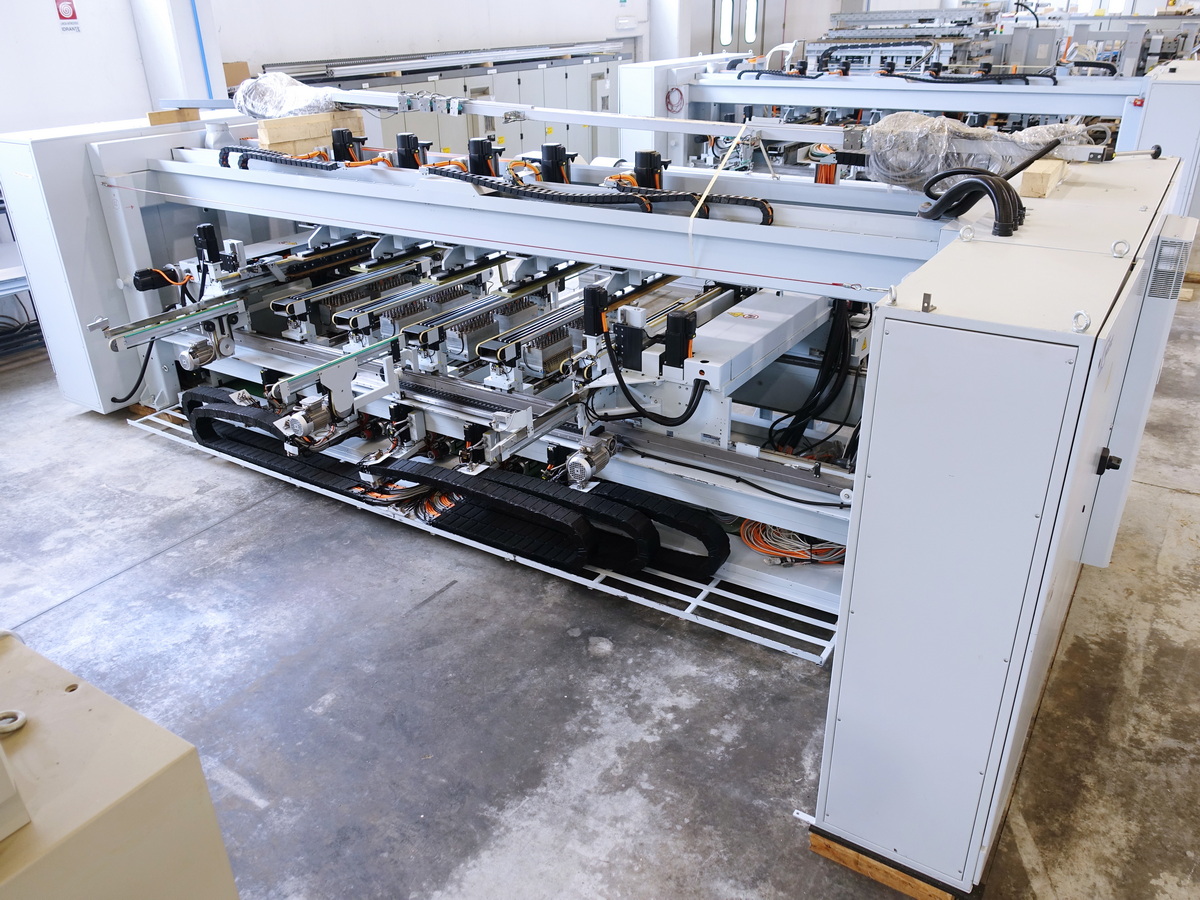

Y11049) Gantry (Portal) Drilling machine, with C.N. “WEEKE” BST 100/30 Powerline
– No. 5 lower vertical groups, tot. 10 heads with 40 spindles each. (total 400 spindles)
– No. 2 horizontal groups (1 right+1 left) with 4 heads & 26 spindles (52 right + 52 left), tot 104

Y11050) Connection transfer, with upsidedown turning machine (180°) “BARGSTEDT” P/TTL/400/12/30

Y11051) Gantry Drill & Dowel Inserting Machine, with N.C. “WEEKE” BST 100/30 Powerline
– No. 5 lower vertical groups, tot. 10 heads with 40 spindles each. (total 400 spindles)
– No. 2 horizontal groups (1 right+1 left) with 8 insertion nozzles each (8 right+8 left), total 16
