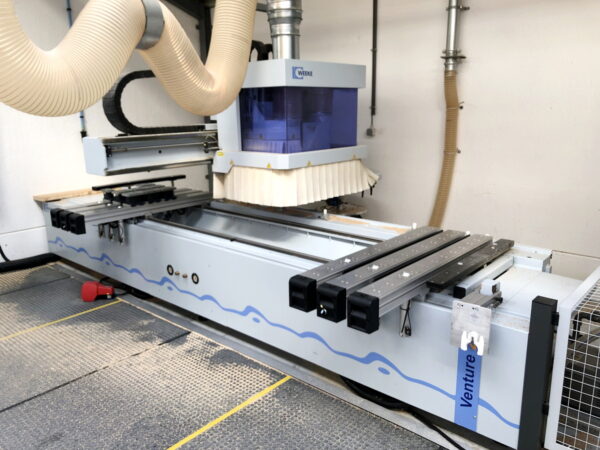

C.N.C. WORKING CENTER (POINT TO POINT) with 4 axis (X-Y-Z-C)
Goose-neck type
Numerical Control PC 85 (Power Control), Software woodWOP
Safety cabin (enclosure) of the working head, Front emergency carpets

Working table with pods and rails (No. 6 rails)
Laser system for the vacuum pods positioning
Automatic Tools Changing System W14, Tools storage plate (with No.14 folds- positions)

Max. useful working area (X – Y – Z) mm 3250 x 1250 x 125
Maximum stroke of the axis (X – Y – Z) mm 3860 x 1862 x 325 (Z1) o mm 185 (Z2)
Working areas (No.) 2
Vacuum pump (capacity m3/h) 90/108
Separate electric and command cabinet
Total installed power (Kw) 18 (ca)

Configuration of the work head: V19, H4X/2Y, X-Y 90°, F1-HSK63-9KW, W14 HINTEN:
– No. 19 independent vertical boring spindles (9 on X + 8 on Y axes + 2 seperate), power Kw 2,7
– No. 6 independent horizontal boring spindles (4 for X and 2 on Y axes)
– Drilling head motor-power (Kw) 2,7
– No. 1 Vertical electro-spindle HSK F63 (Router) power HP 12 /KW 9 (With C Axis, 360°)
– No. 1 Circular grooving Saw max diam mm 125, swivelling 0°-90° (axe X and Y)
