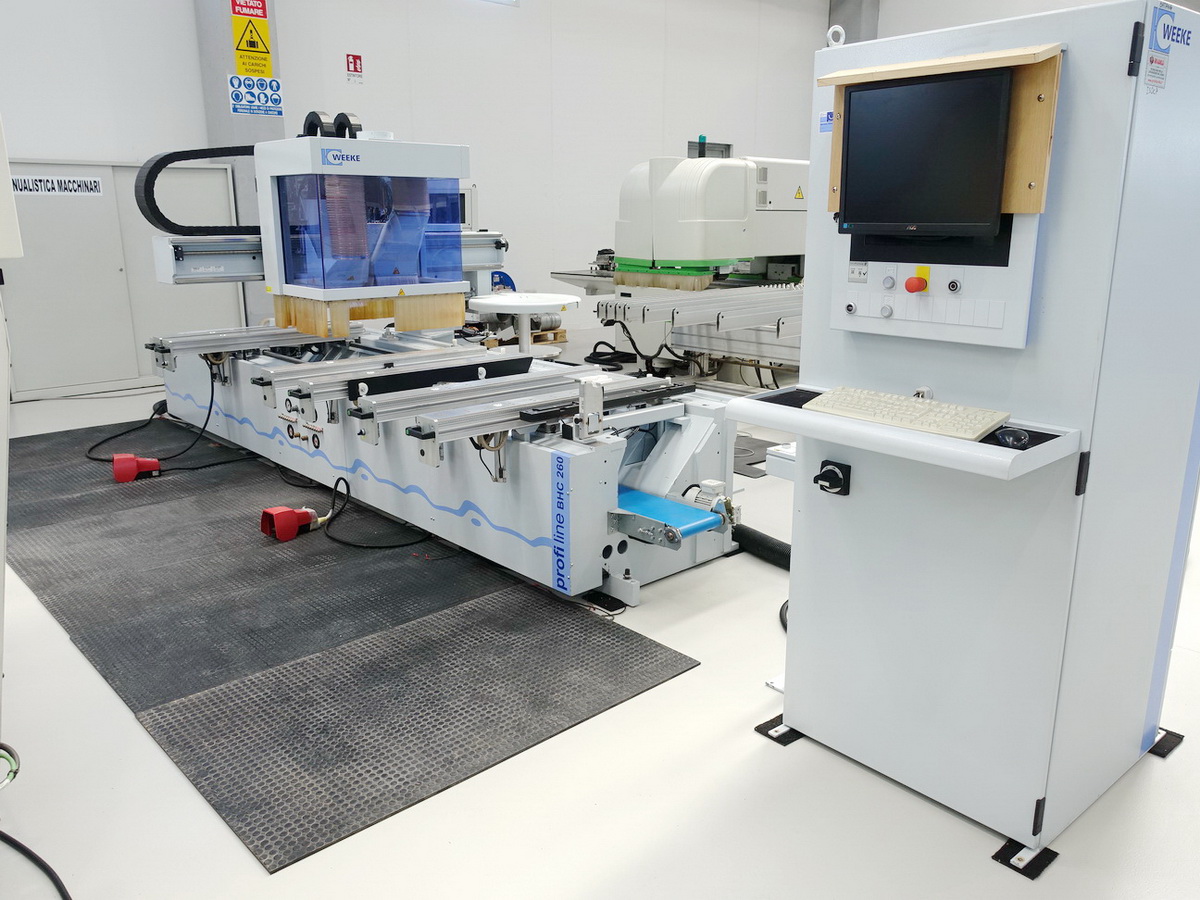

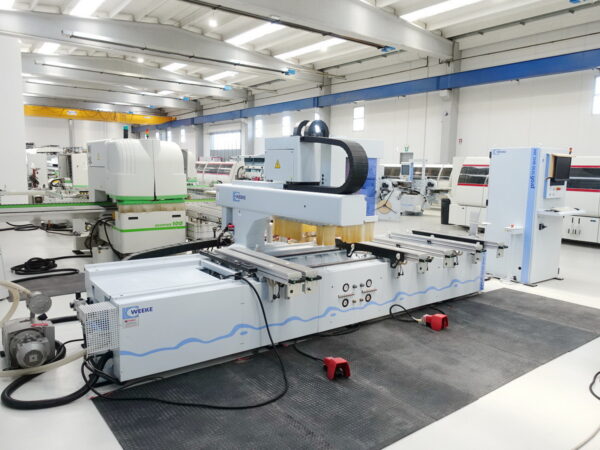

C.N.C. WORKING CENTER (POINT TO POINT) with 4 axis (X-Y-Z-C)
Goose-neck type
Numerical Control PC 85 T (Power Control), Software woodWOP
Safety cabin (enclosure) of the working head, Front emergency carpets

Working table with pods and rails (No. 6 rails, length mm 1250)
LASER system (on the rails) for the vacuum pods positioning
Automatic Tools Changing System W14, Tools storage plate (with No.14 folds- positions)

Max. useful working area (X – Y – Z) mm 3250 x 1250 x 125 (ca.)
Working areas (No.) 2
Vacuum pump (capacity m3/h) 100
Separate electric and command cabinet
Total installed power (Kw) 18

Configuration of the work head: V12, H4X/2Y, 11 X-Y 90°, F1-HSK-9KW, C-axis,W14 Rear:
– No. 12 independent vertical boring spindles (6 on X + 6 on Y axes + 2 separate), power Kw 2,7
– No. 6 independent horizontal boring spindles (4 for X and 2 on Y axes)
– No. 1 Vertical electro-spindle HSK F63 (Router) power HP 12 /KW 9 and with C axe, 360°
– No. 1 Circular grooving Saw max diam mm 125, swivelling 0°-90° (axe X and Y)
