Shop

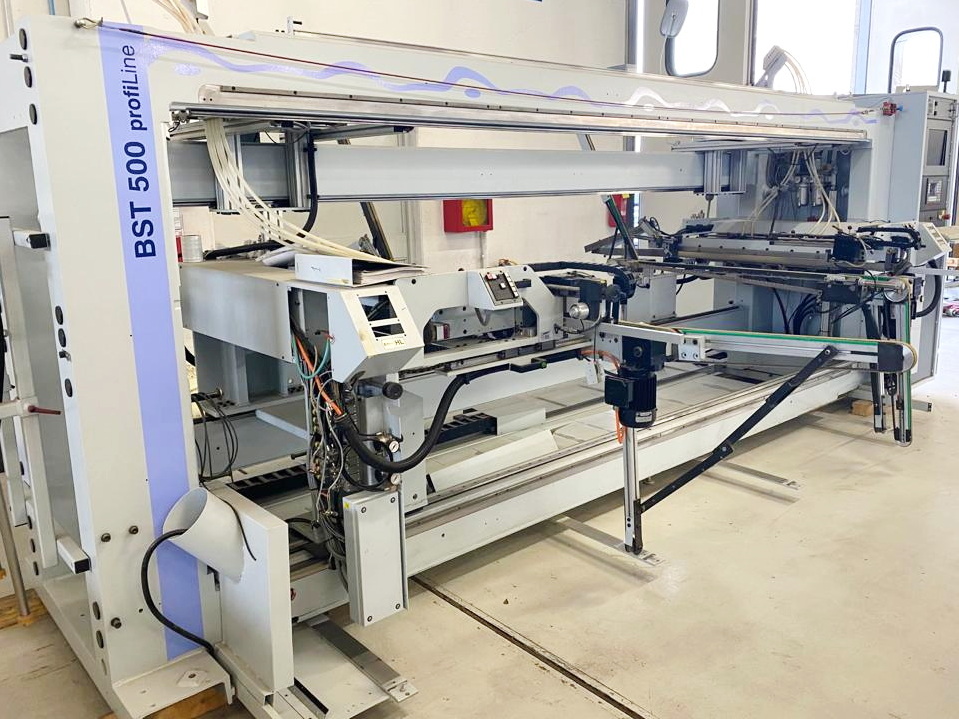

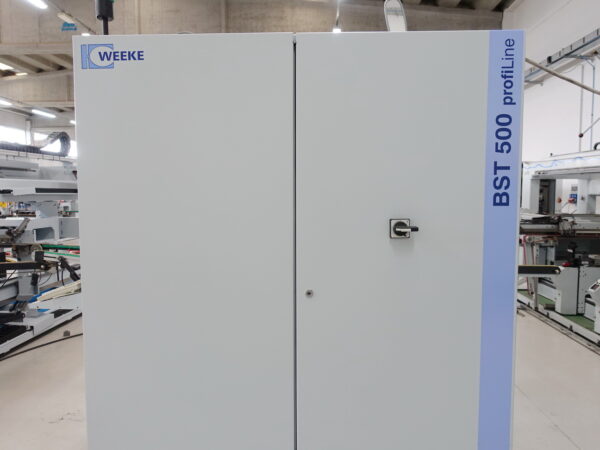

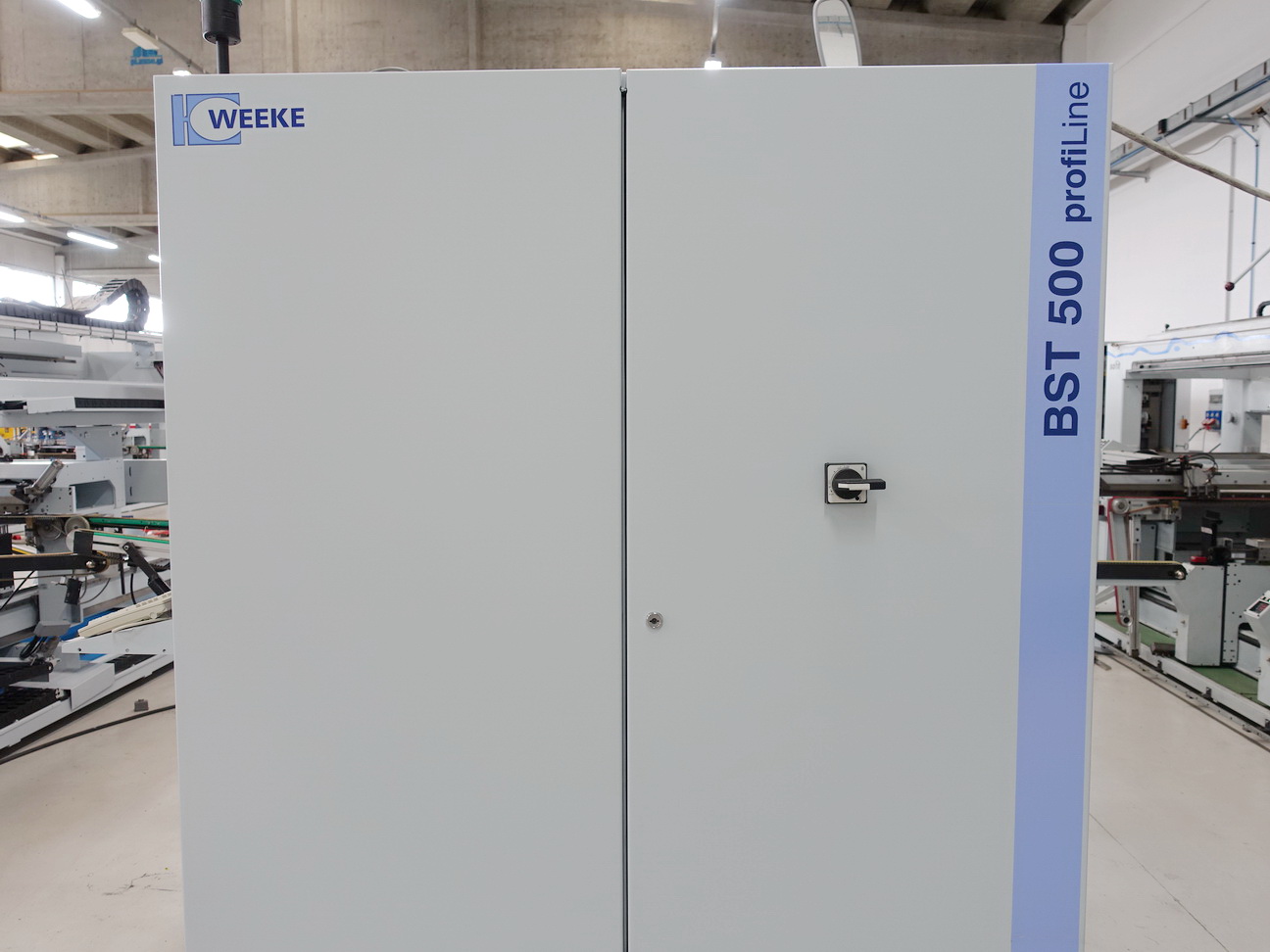

WEEKE BST 500/D

Code:
U09071

Type:
INSERTING MACHINE (for Dowels)

Brand:
WEEKE

Model:
BST 500/D

Description

Automatic though feed Boring Machine with Dowel Inserting

(Works on two sides even simultaneously) which can be placed in line after a through-feed Multi Borer for the automatic processing cycle of boring and dowels inserting

Electronic Programmer CONTROL SYSTEM IPC/NC WITH CONTROL SIMATIC C7
Software WINDOWS 98

No. 2 Through-feed motorized conveyoring belts

No. 2 Horizontal units/supports (with digital quota)
Dowels inserting nozzles (and Glue Injectors) No. 5 + 5

Max. working width (mm) 2500
Min. working width (mm) 250

Vertical top pressure clamps (N°) 3
Motorized carpet to evacuate chips and wastes
Total installed power (Kw) 22
