Shop

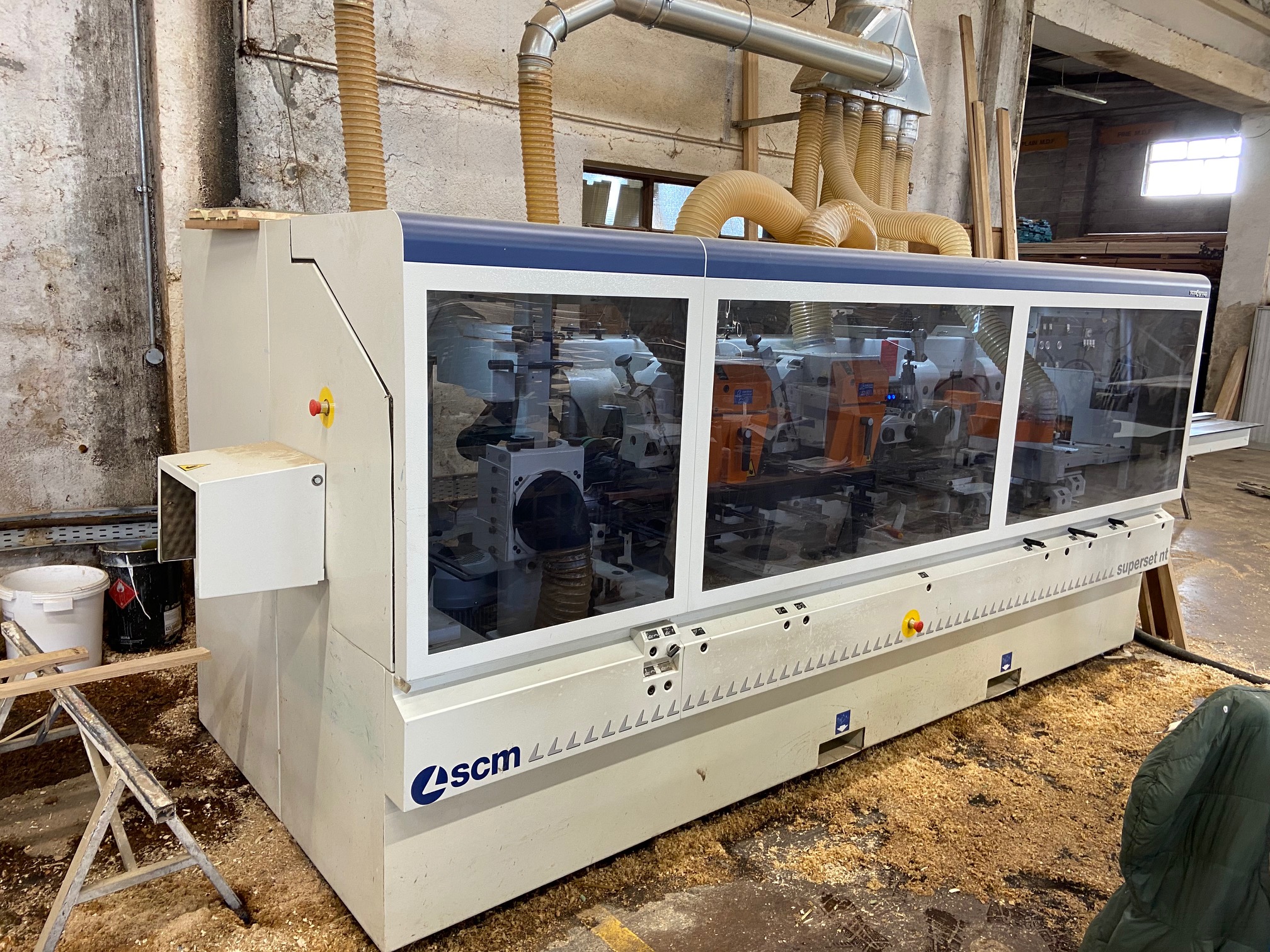

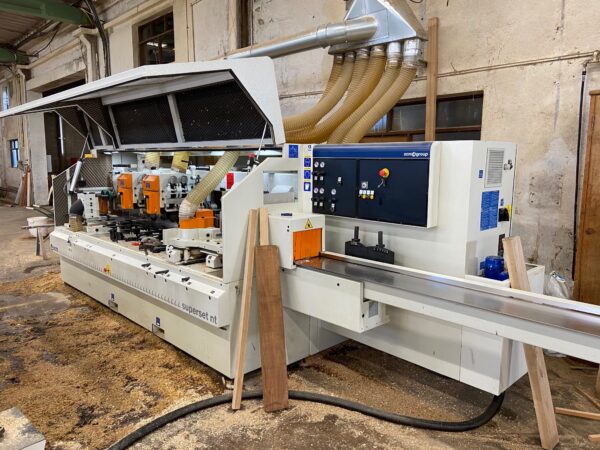

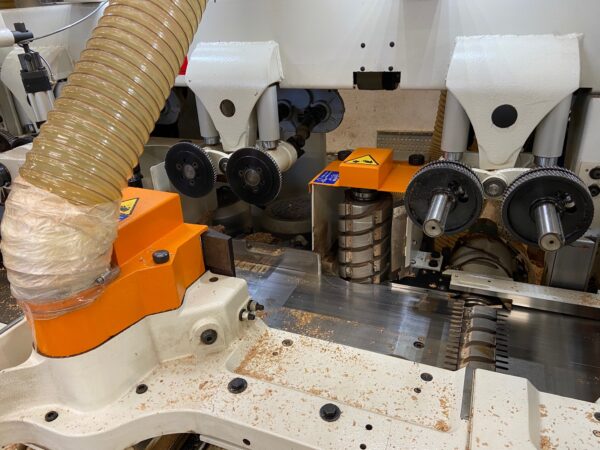

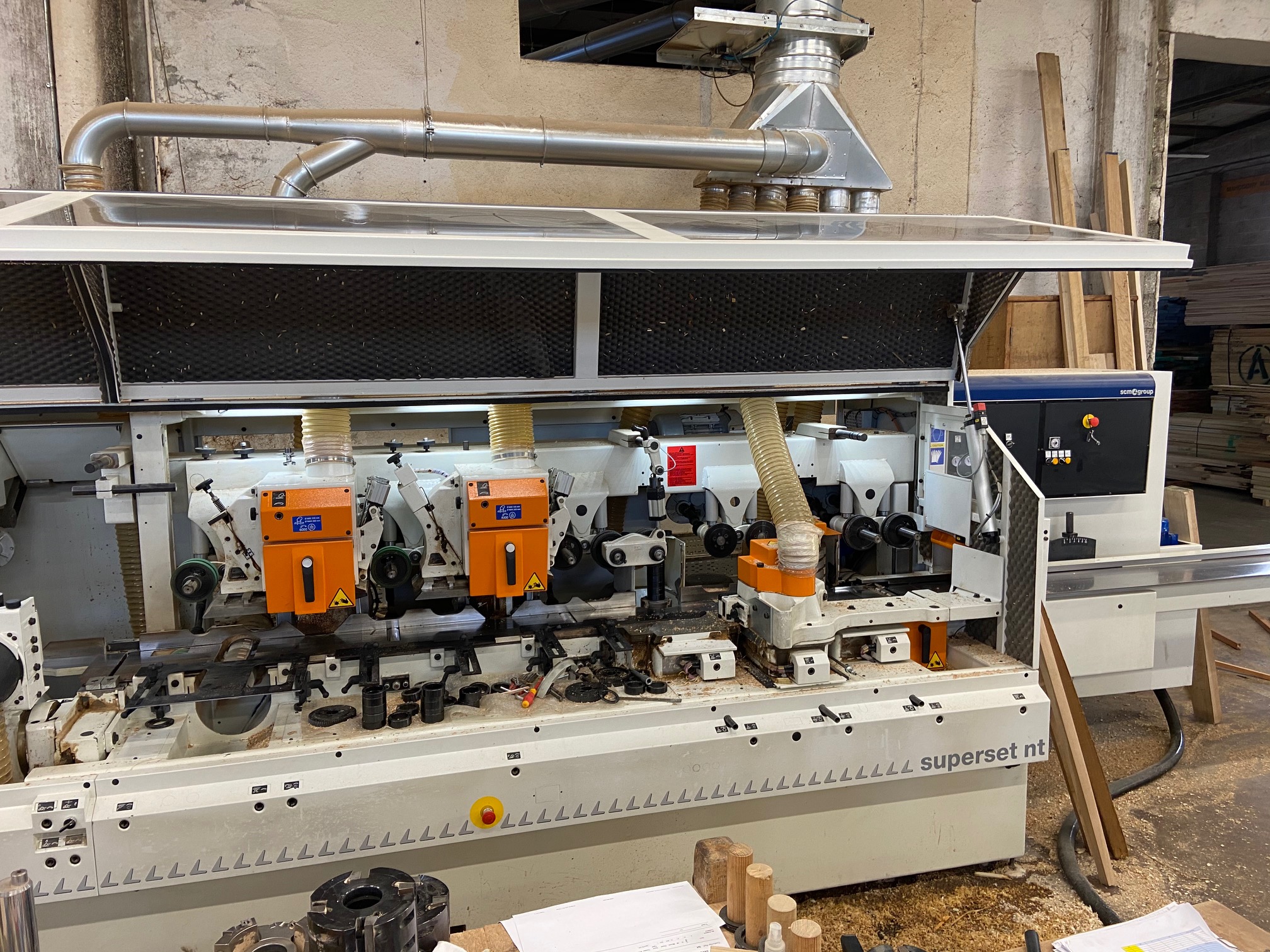

SCN Superset 8 Head Moulder

Description

Option Code Description
50.02.13 C.E.NORMS
93.07.31 VOLT 400 EU
93.12.01 FREQUENCY 50 HZ
10.99.91 Machine Language English
04.08.29 SUPERSET NT PLUS COMP. 31 U
41.12.27 FEED SPEED 6-36 M/MIN THROUGH INVERTER
23.15.62 TANDEM FEED UNIT
23.15.86 FEED UNIT PLACED AFTER TOP HORIZONTAL SPINDLE FOR THE
REDUCTION OF THE FEED CENTRE DISTANCE FROM 620 MM
23.15.80 TANDEM FEED UNIT IN FRONT OF UNIVERSAL SPINDLE
23.15.63 2ND FEED UNIT PLACED AFTER UNIVERSAL SPINDLE
32.01.31 POWERED ROLLER ON THE WORKTABLE
88.04.88 KIT TO REDUCE MIN. WORKING WIDTH TO 15MM
90.10.49 260MM WORKING WIDTH INSTEAD OF 230MM
88.06.97 200MM WORKING HEIGHT INSTEAD OF 120MM
36.01.60 AUTOMATIC LUBRICATION PUMP FOR WORKTABLE
36.01.58 BASE EQUIPMENT FOR FORCED LUBRICATION
APLSNT OPERATING THICKNESSING UNIT AND OPT. -SUPSERSET NT
97.11.91 MOTOR POWER 15HP
27.14.26 BRAKE FOR 15 HP (11 KW) TO 25 hp (18 KW)
88.07.47 RAPID TOOL LOCKING
1VDSNT 1 RIGHT VERTICLE SPINDLE AND OPTIONS (SUPERSET NT)
97.11.89 10HP MOTOR
27.14.16 BRAKE FOR 5.5 HP (4 KW) TO 10 HP (7.5 KW)
13.11.48 SPINDLE WITH 50MM DIAMETER
13.11.69 HIGH PRECISION SPINDLE
88.07.47 RAPID TOOL LOCKING
1VSSNT MOTOR POWER 10 HP/7,5KW INSTEAD OF 5,5 HP/4 KW
97.11.91 MOTOR POWER 15HP
27.14.26 BRAKE FOR 15 HP (11 KW) TO 25 hp (18 KW)
13.11.48 SPINDLE WITH 50MM DIAMETER
13.11.69 HIGH PRECISION SPINDLE
88.07.47 RAPID TOOL LOCKING
99.06.65 ELECTRONIC HORIZONTAL POSITIONING
1OSNNT FIRST TOP HORIZONTAL SOINDLE AND OPTIONS
97.11.91 MOTOR POWER 15HP
27.14.26 BRAKE FOR 15 HP (11 KW) TO 25 hp (18 KW)
88.07.47 RAPID TOOL LOCKING
2OSSNT 2.HORIZ UPPER SPINDLE AND OPTIONS (SUPERSET NT)
97.11.89 10HP MOTOR
27.14.16 BRAKE FOR 5.5 HP (4 KW) TO 10 HP (7.5 KW)
41.17.00 8300 RPM
88.07.47 RAPID TOOL LOCKING
99.06.66 ELECTRONIC VERTICAL POSITIONING
2OISNT 2. BOTTOM HORIZ.1 SPINDLE AND OPTIONS-SUPERSET NT
97.11.89 10HP MOTOR
27.14.16 BRAKE FOR 5.5 HP (4 KW) TO 10 HP (7.5 KW)
41.17.00 8300 RPM
88.07.47 RAPID TOOL LOCKING
UNISNT UNIVERSAL SPINDLE (SUPERSET NT)
97.11.89 10HP MOTOR
27.14.16 BRAKE FOR 5.5 HP (4 KW) TO 10 HP (7.5 KW)
88.07.47 RAPID TOOL LOCKING
31.16.36 VERTICAL PRESSURE SHOE
31.12.43 FRONT AND REAR PRESSURE SHOES

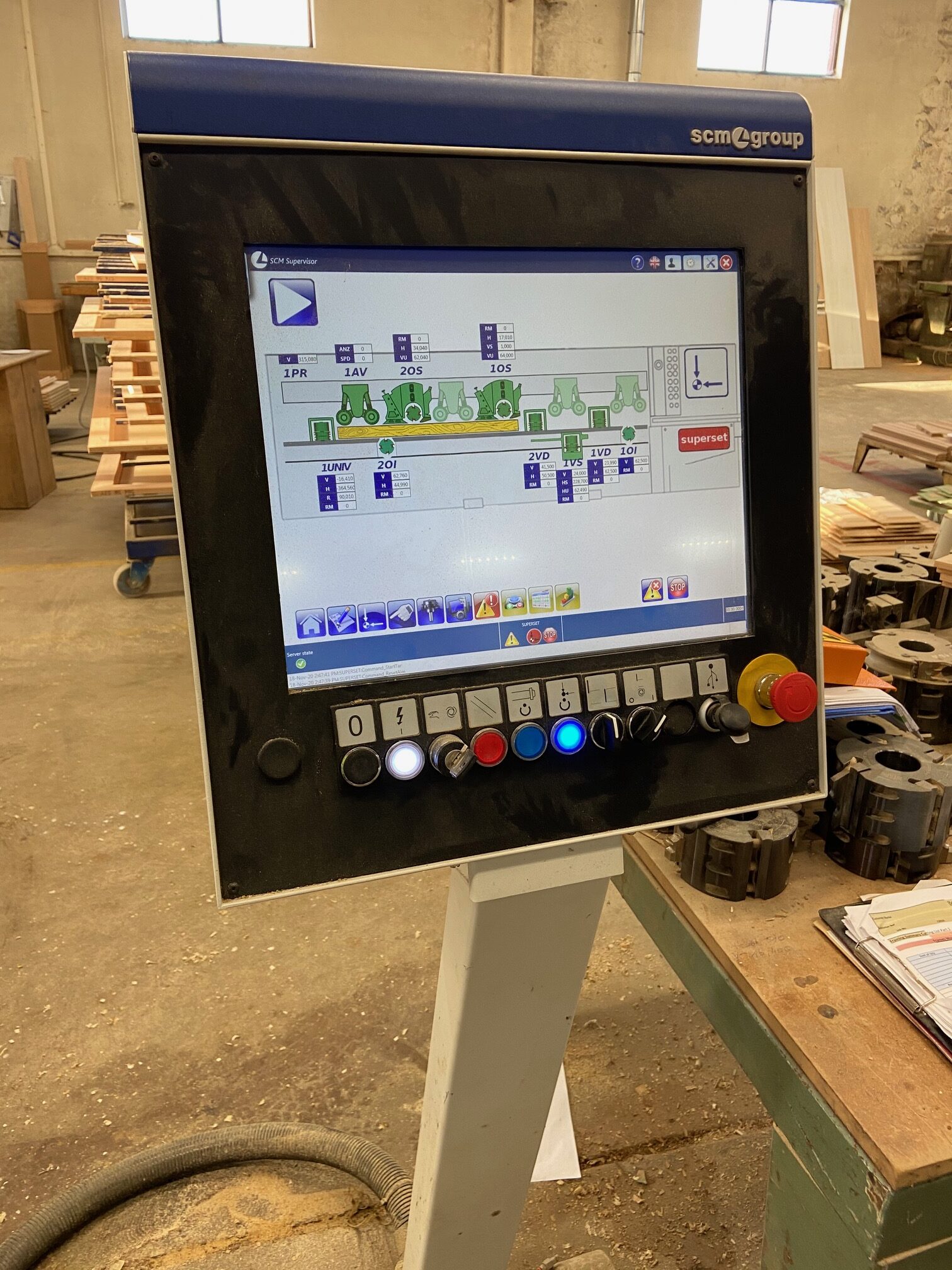

89.00.11 MOBILE 10 ELECTRONIC CONTROL UNIT
SPEC01 MANTIS ID 15235 NEW CONTROL
