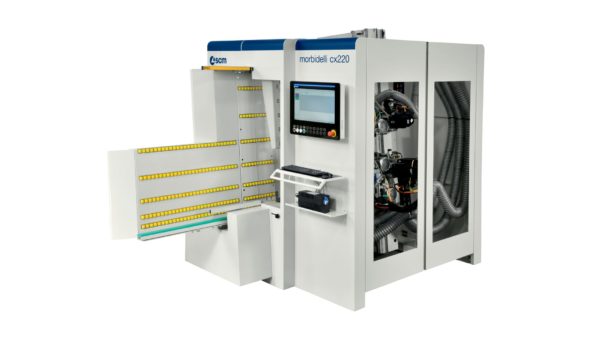

SCM morbidelli cx210/cx220 Boring Machine

The SCM drilling machines are the products of continuing in-house development complementing the sum of the finest skills and know-how acquired when Morbidelli joined the SCM Group. This brand, with its rich tradition, is known today as a model name.

SKU: morbidelli cx210/cx220 Category: Tags: ,

Description

Technical data

        cx210     cx220
Axes
Panel length (max.)mm3050
Panel width (max.)mm1300
Panel thickness (max.)mm95
Panel weight (max.)kg70
X-Y-Z axes speed (max.)m/min70 – 40 – 30
F31LTC drilling head
Vertical spindlesno.21
Horizonal spindles in X – Y directionsno.6 – 4
Spindles rotation speedrpmup to 8000 with optional inverter
Integrated blade in X axisØ mm
rpm
125
up to 9700 with optional inverter
Motor powerkW (Hp)2,2 (3)
F21L drilling head
Vertical spindlesno.     –13
Horizonal spindles in X – Y directionsno.6 – 2
Spindles rotation speedrpmup to 8000
with opt. inverter
Integrated blade in X axisØ mm
rpm
125
up to 8000
with opt. inverter
Motor powerkW (Hp)2,2 (3)
0-90° saw-blade/clamex unit
Diametermm125
Rotation speedrpm5500
Electrospindle
Motor power (max.)kW7,5
Rotation speedrpmup to 24000
Dowel insertion unit
Supply systemwater/vinyl glue
Available tools on tool changerno.6
