Description
Technical data

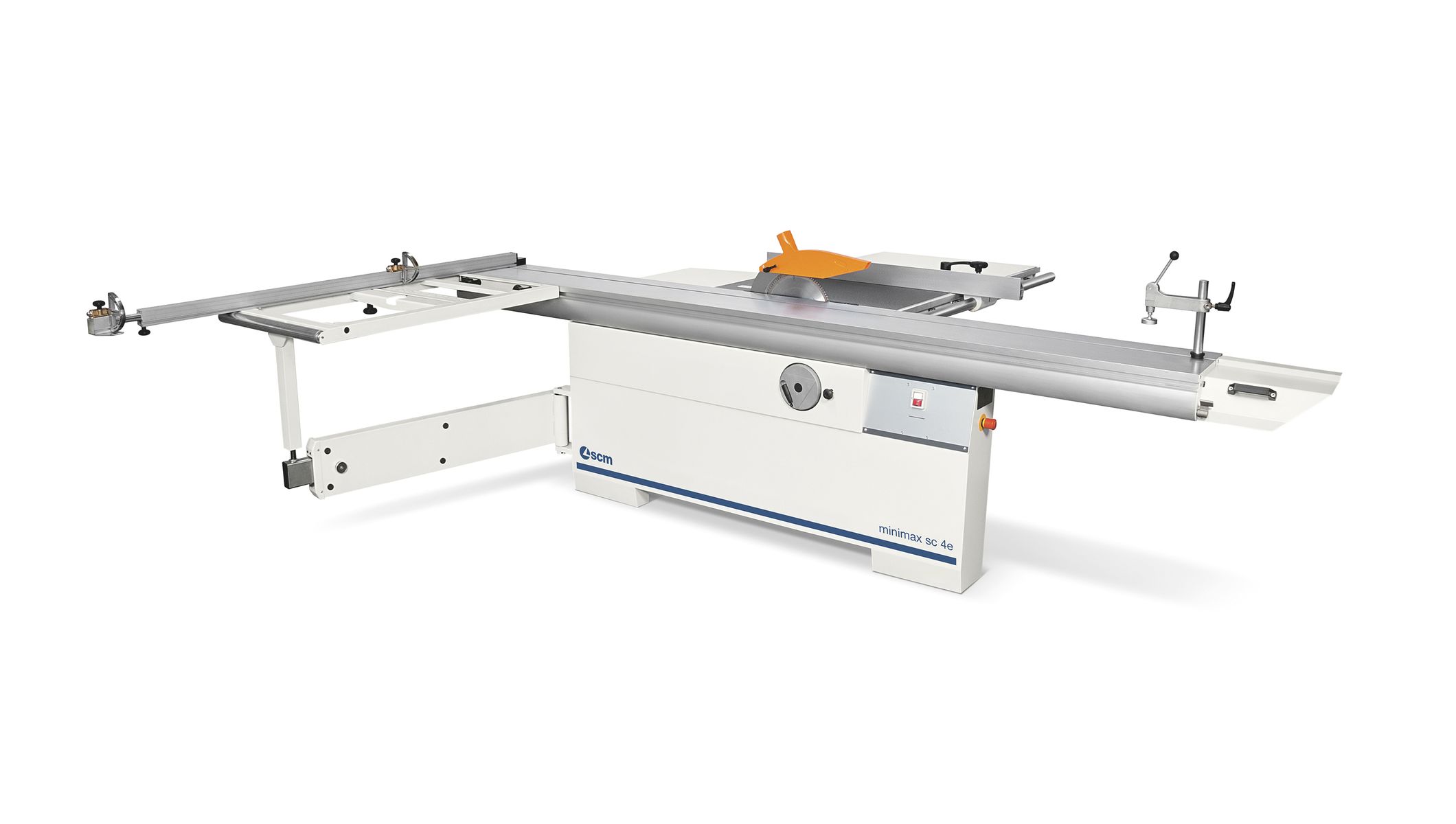

| sc 4e | ||
| Max. sawblade diameter with scoring blade installed | mm / inches | 315 / 12 |
| Sawblade arbor size | mm / inches | 16 / ⅝ |
| Max. sawblade projection from table at 90°/45° | mm / inches | 100/70 3.94/2.75 |
| Cutting width on parallel fence (Rip capacity) | mm / inches | 1270 / 50 |
| Max. squaring stroke of sliding table saw | mm / ft | 2600 / 8.5 |
| Single-phase motor | Hp | 4.8 |
