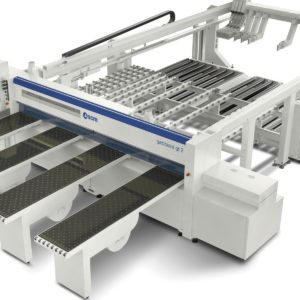

SCM flexstore el + gabbiani g 2 Beam Saw

The SCM beam saws are the products of continuing in-house development complementing the sum of the finest skills and know-how acquired when Gabbiani joined the SCM Group. This brand, with its rich tradition, is known today as a model name.

SKU: flexstore el + gabbiani g 2 Category: Tags: ,

Description

Technical data

gabbiani g 2
Single beam panel saw for industrial applications

  • Cutting dimensions: 4500×4300 mm
  • Max. blade protrusion: 110 mm
  • Max. saw carriage speed: 170 m/min
  • Max. pusher speed: 135 m/min
  • 7,5 kW-50Hz main blade engine
  • Saw carriage run, and operating units and  prismatic guides
  • HI-TRONIC device
  • FLEXCUT 1/S for simultaneous execution of differentiated cuts

flexstore el
Loading flexible warehouse with 3-axes (opt. 4-axes)

  • Variable configuration of number station – available surface up to 12×60 mt
  • Panels thickness: 10 ÷ 60 mm (opt. from 3 mm)
  • Panels length: 2.440 ÷ 4.250 mm
  • Panels width: 800 ÷ 2.200 mm
  • Max. panel weight: 200 Kg
  • Loading arm with 3 degrees of freedom + rotation (opt.)
  • Vacuum loading arm with electronic adjustment depending of the dimension of the panels
  • Device for the automatic detachment of the panels
  • Check device for the detachment of the panels
  • offcuts  management
  • Mixed stacks management
