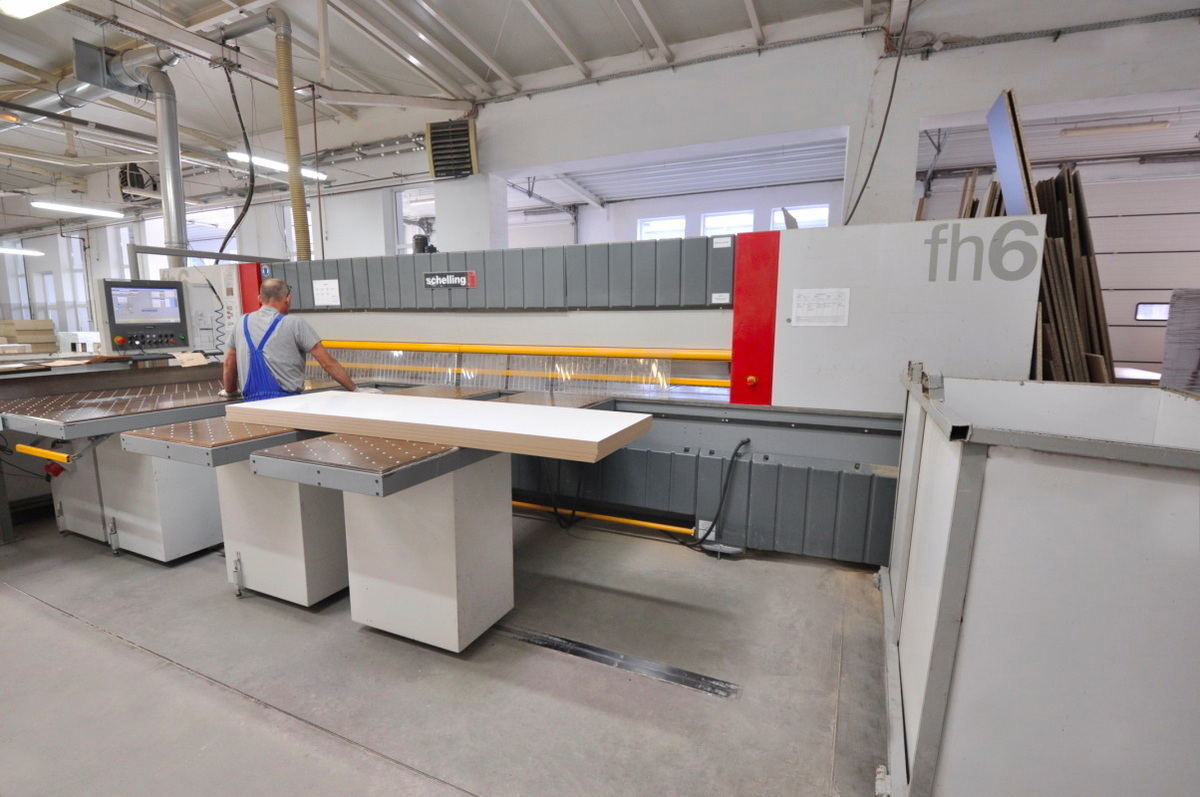

Horizontal Panel Beam Saw – With rear lifting table
Numerical Control MCS Evolution
Software

Outside Rollers table for pre-loading (mm 4500 x 2200 ca.)

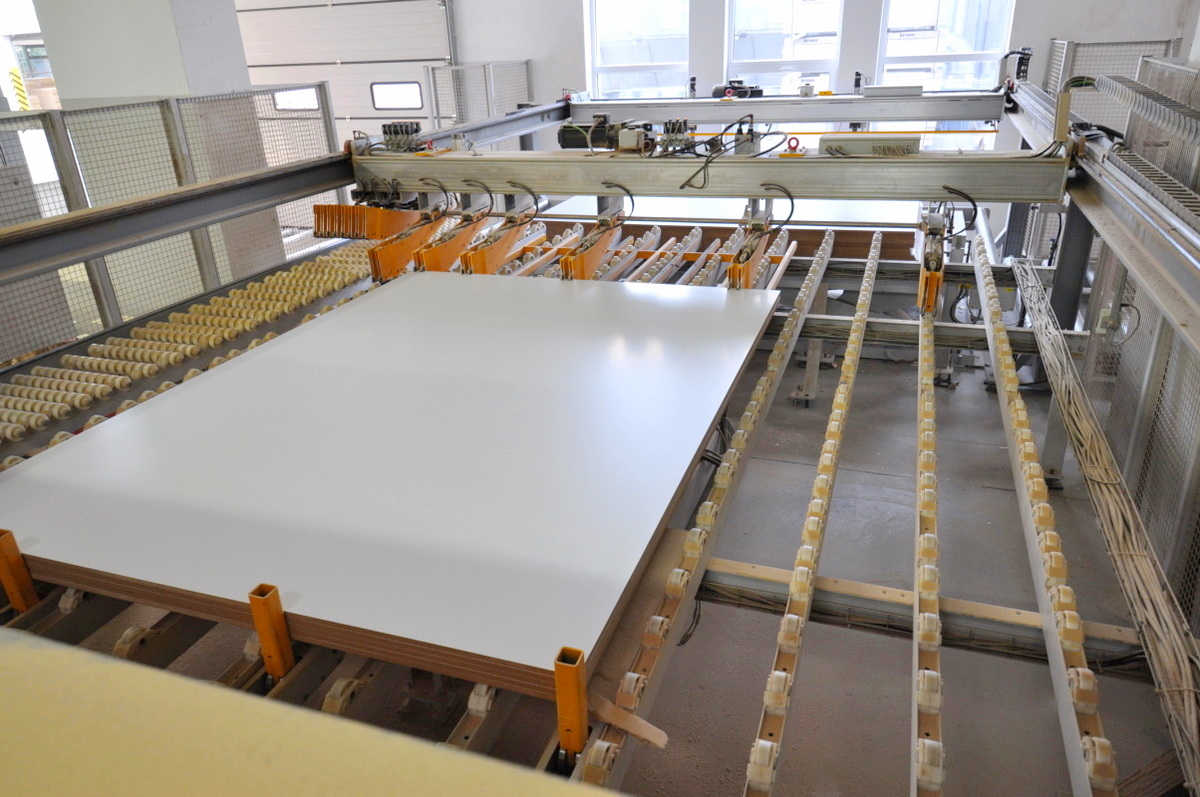

Lifting table (mm) 4300 x 2200
Turning device (rotating unit) at 90°

No. 2 Rear pushers (one with clamps / grippers)
Twin Pusher
No. 10 clamps / grippers

Max. cutting width (mm) 4300
Useful stroke of the pushing system (mm) 4300

Max blade projection (mm) 135
Max clamps opening (mm) 133

Scoring Unit (max saw diameter / power) 200 mm
Main Sawing Unit (max saw diameter / power) 460 mm – Kw 27

Adjustable speed of the saw carriage (m/min) 0 – 150
Front supporting tables with Air blowing system (N.) 4
Total power (Kw) 36 (ca.)
