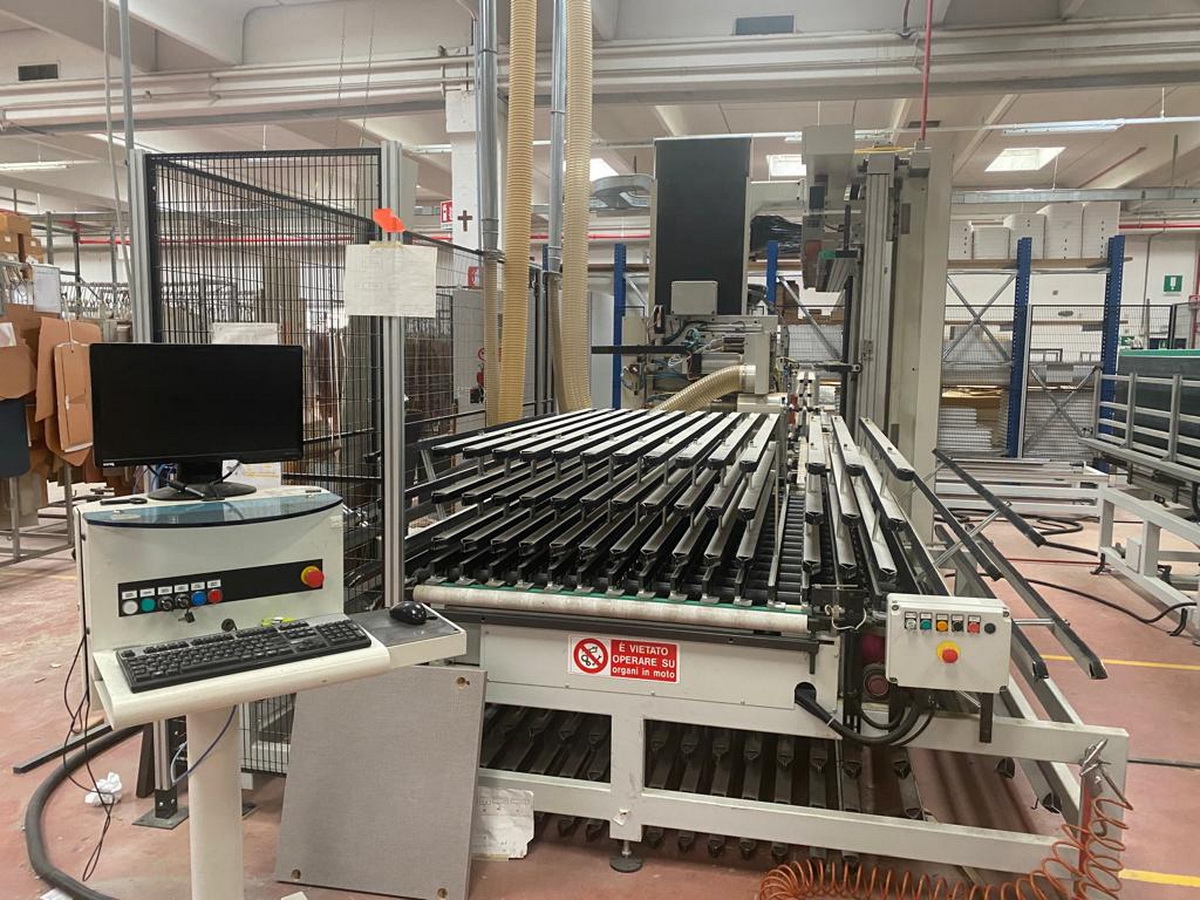

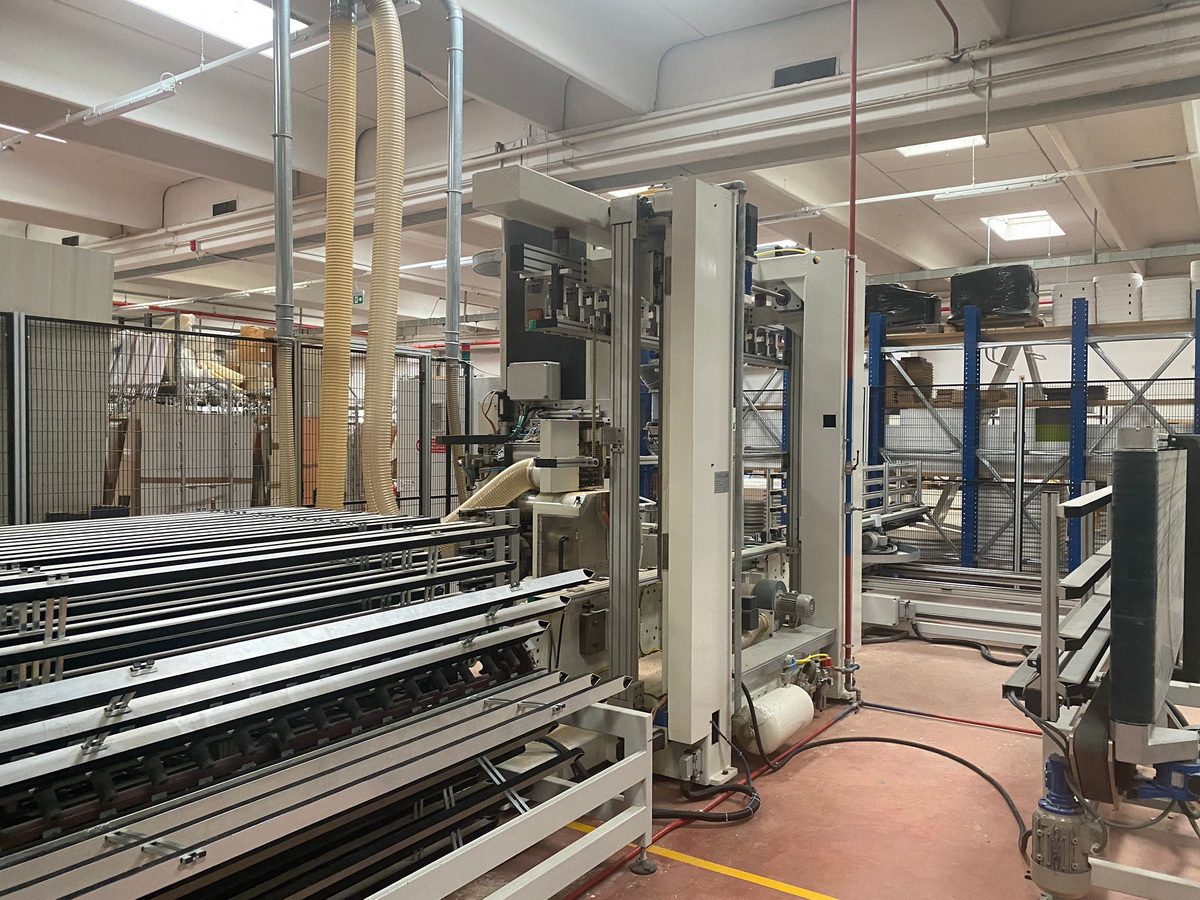

Flexible N.C. line for drilling, routing and “hardware” insertion.
Numerical Control “TPA” Albatros. Composed by:

K01006A) Hedgehog loader, with 12 positions (for 12 panels), vertical panel introduction.

K01006B) CNC Drilling and routering machine Mod. Over 25.13 with inserter (for bushes, shelf support and base).
– N. 1 operating head (estimated KW 5,5) with tool storing revolver (10 positions)
– N. 1 boring head with 24 independent spindles (X axis)
– N. 1 boring head with 2 independent spindles (Y axis)
– N. 1 boring head with 5 independent spindles (Z axis)
– N. 1 insertion unit (bushing screwing)
– N. 1 insertion unit (shelf support pressure)
– N. 1 storage and feeding tank

K01006C) Unloader (90° side-deplacement), with motorized conveyor for vertical outfeed of the panel.

K01006D) Unloader – tilting (0°-90) moves the panel from vertical to horizontal, with motorized conveyor
