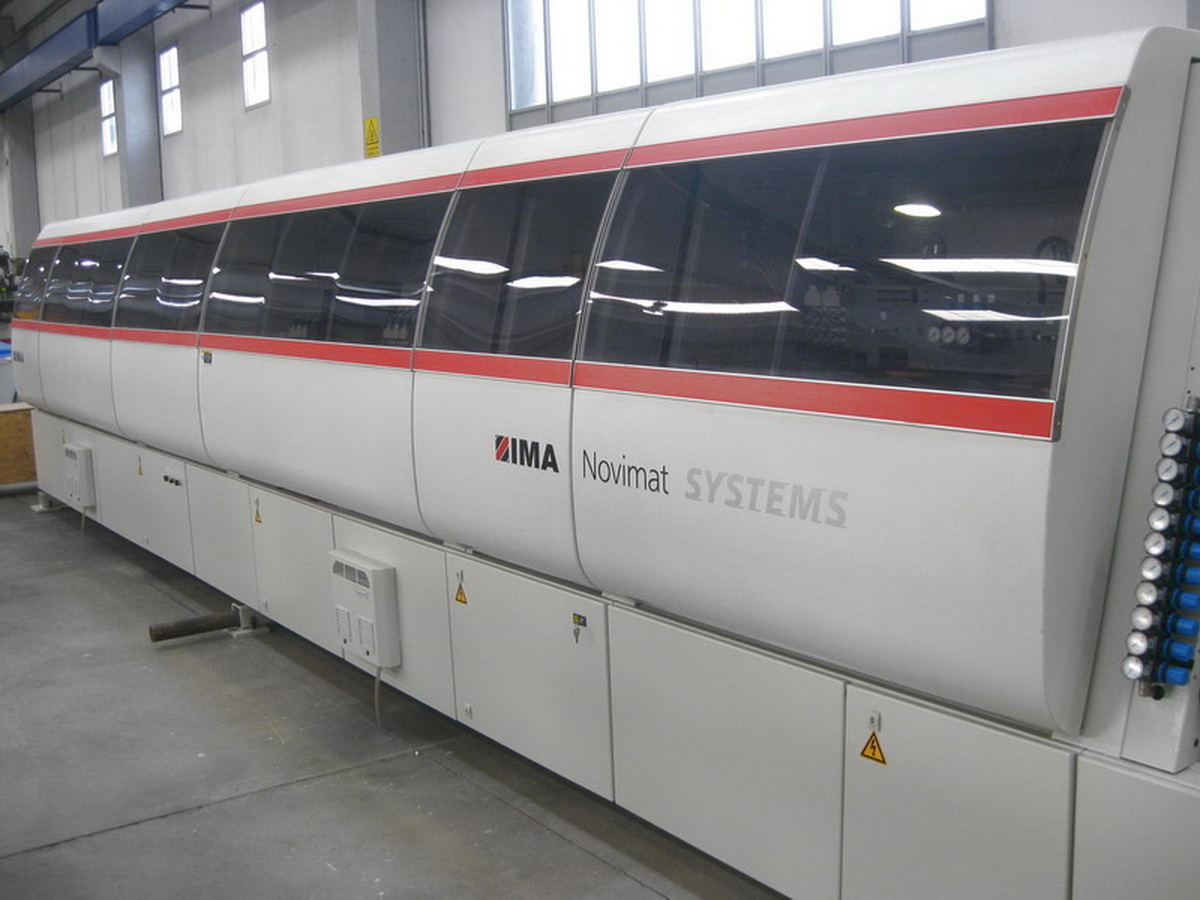

SINGLE-SIDE EDGE BANDER (LEFT-side)
Edges (tape) thickness in rolls (min/max) mm 0,3 / 3
Edges thickness in stips / lippings (min/max) mm 0,3 / 1,3
Panels thickness (min/max) mm mm 60 (with MFA) / mm 80 (without MFA)
Working width (min/max) mm 65 / 1300
Numerical Control / Software ICOS Open
Adjustable feeding speed (m/min ) 7 – 35
Top pressure system with driven rubber belt
Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C.. – Panels in-feed system
Pre-milling Unit (vertical joint trimmers) by N.C. 08.378 (2 x Kw 4,5)
Glueing Unit (P.U.R. Glue + Quick Melt unit) 04.1574 + Quickmelt 283.20
Pressure zone (N.C. adjustment)
Edge coils supporting unit (No. of reels) 1 + 2 (total. 3)
Snipping (end-cutting) unit 08.42/30/B (2 x Kw 0,66) 0°-25° (max 30 m/min)
Fine Trimming unit 08.055 (2 x Kw 1) 0°-30°
Multi Function Unit (Profile contour Trimming unit) 08.348 (2 x Kw 0,66) servo (4+4 positions)
Profile Scraping unit
Glue scraping unit 08.50 (system for protected panels)
Buffing unit 08.614 (2 x Kw 0,25)
Milling grooving unit 08.183 (2 x Kw 4,5)
Smoothing unit with spheres

OPTION: With “AMS” SYSTEM for UNLOADING panels (also ROTATING) and RETURNING pieces to the operator – (Sofit’s Code X04008)
