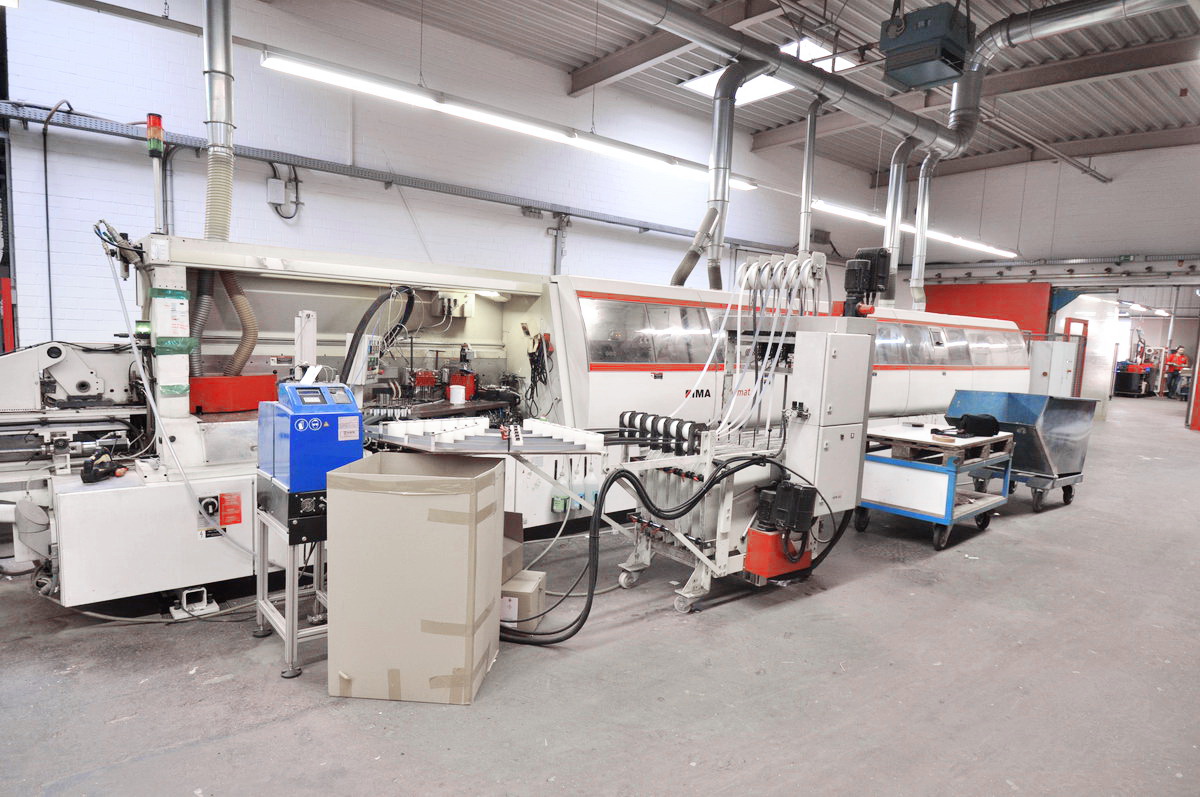

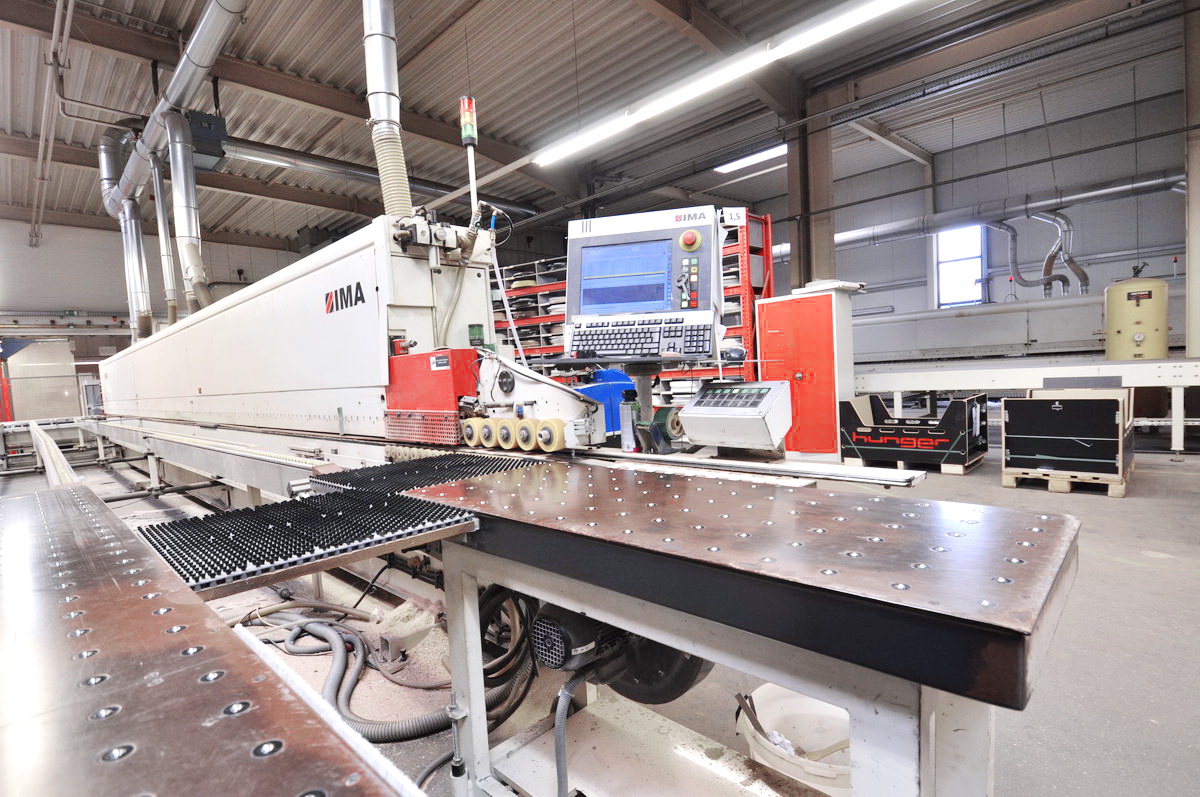

SINGLE-SIDE EDGE BANDER (RIGHT-side)
Edges (band in rolls) thickness (Min/Max) mm 0,3 – 3
Panels thickness (min/max) mm 8 – 60
Numerical Control ICOS open compact
Feeding speed (adjustable) m/min 6 – 30
Top pressure system with rubber belt, Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C. Panels in-feed system
Bar Code Reader
Pre-milling Unit (vertical joint trimmers) by N.C. 08.378 (2 x Kw 4,5)
Glueing Unit (P.U.R. Glue + Quick Melt system) VTG 3 – 6
Band Pressure zone. Height adjustment of the band by N.C.
Edge coils supporting unit (reels N°) 6
Snipping (end-cutting) unit 08.42 / 30 / B (Kw 0,66 x 2) (PNEU 0°-25°) 30m / min
Rough Trimming unit 08.0555 (Kw 1 x 2)
Fine Trimming unit (Multi-profile, by N.C.) 08.0587 (Kw 0,66 x 2) 4 PROFILES HSK 25
Spraying Unit (for sliding liquid)
Multi-Profile Copying unit by N.C (fine and contour trimming) KFA 30 (Kw 0,5 x 1) 30m/min
Profile edge scraping unit (Multi-profile, by N.C.) 08.516 (4 PROFILES)
Glue scraping unit 08.521
Spraying Unit (for polishing liquid)
Buffing unit 08.604 (Kw 0,25 x 4). Free space
Milling grooving unit 08.190 (Kw 4,5 x 1)
OPTION: No. 1 Automatic Return System “GELDMEIER” (Sofit’s Code J02006)
