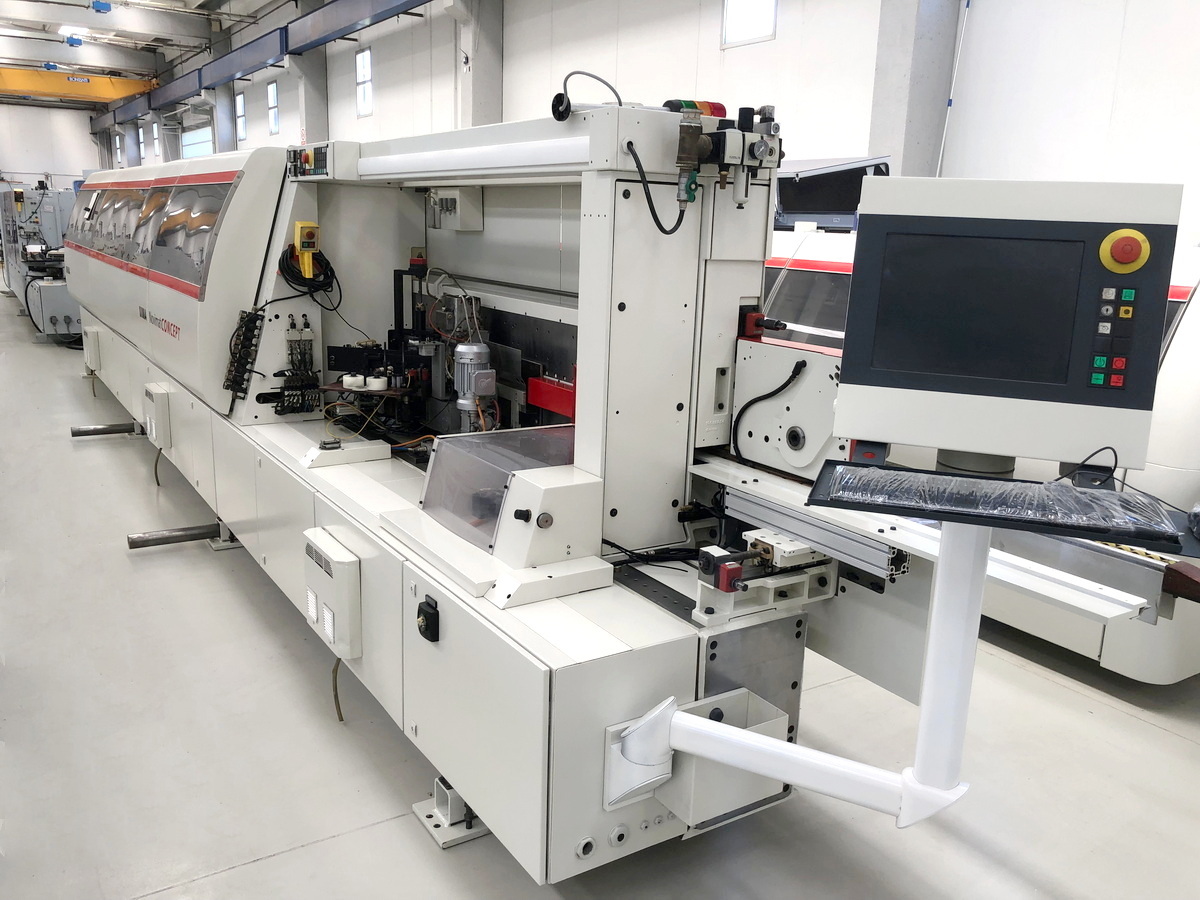

SINGLE-SIDE EDGE BANDER (LEFT-side)

Edges (tape) thickness in rolls (min/max) mm 0,3 / 3
Veneer edges limited possible up to max. 1.0 mm
Panels thickness (min/max) 8 mm. 40 mm (with MFA) / 60 mm (without MFA)

Numerical Control / Software ICOS Open
Adjustable feeding speed (m/min ) 6 – 30
Top pressure system with driven rubber belt
Spraying unit (Anti-sticking liquid)
In-feed fence

Pre-milling Unit (vertical joint trimmers) 08.378 (2 x Kw 4,5)
Glueing Unit (Hot Melt glue) 04.1570
Pressure zone
Edge coils supporting unit (No. of reels) 2
Snipping (end-cutting) unit 08.42/30/B (2 x Kw 0,66) 0°-25° (max 30 m/min)
Fine Trimming unit 08.055 (2 x Kw 1) 0°-30°
Multi Function Unit (Profile contour Trimming unit) by N.C. 08.342 (2 x Kw 0,66) servo
Profile Scraping unit 08.519
Glue scraping unit 08.50
Buffing unit 08.617 (2 x Kw 0,25)
Milling grooving unit 08.190 (1 x Kw 4,5)
