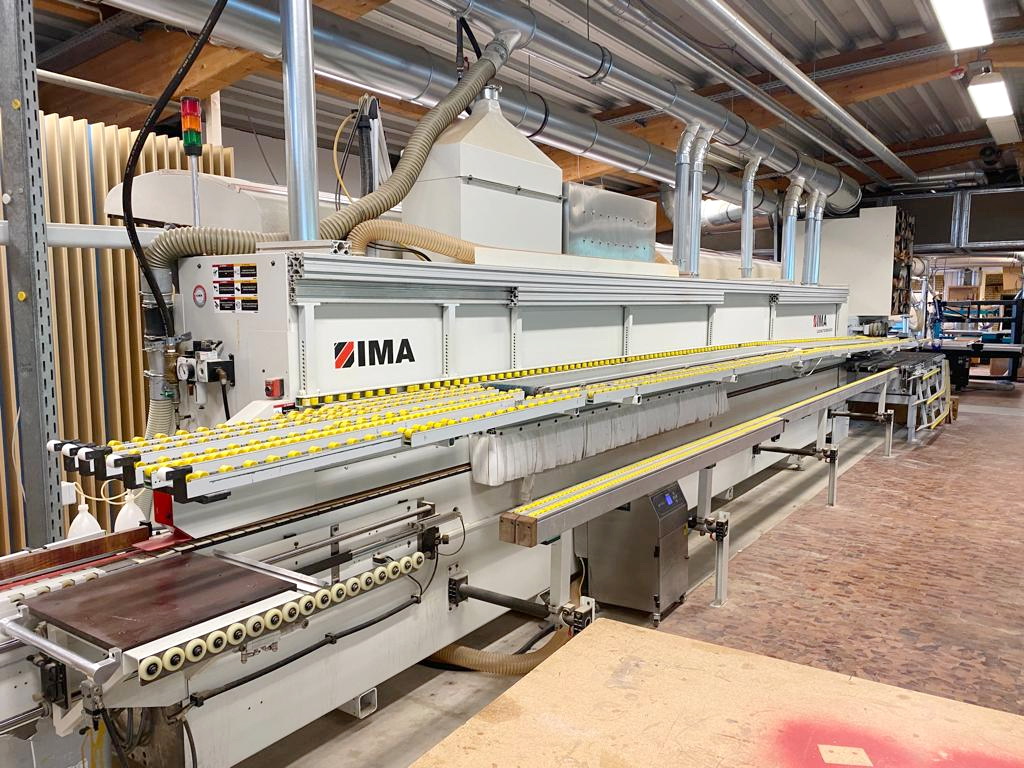

SINGLE-SIDE EDGE BANDER (LEFT-side)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 – in stips / lippings mm max 1
Panels thickness (min/max) mm 8 / 60

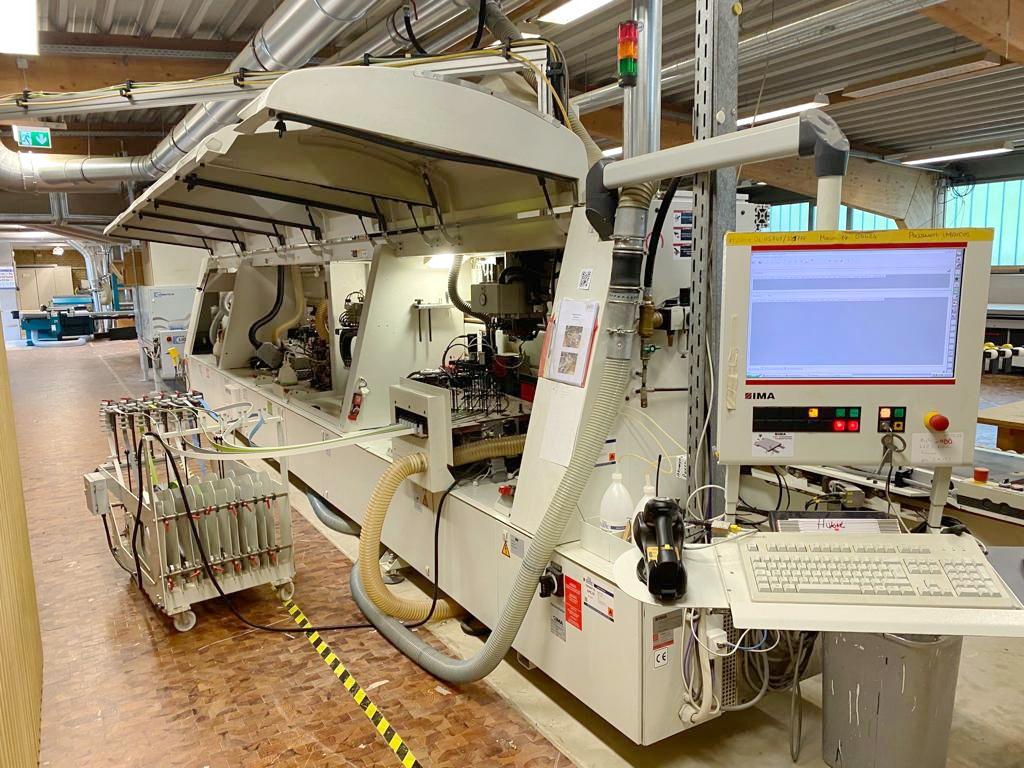

Numerical Control ICOS Open
Feeding speed (adjustable) m/min 6 – 30
Top pressure system with rubber belt
Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C.
Panels in-feed system 63.152 (mm 500 x 500)
Pre-milling Unit (vertical joint trimmers) 08.379 (2 x Kw 4,0) adjustable by N.C.
Lamps to heat the workpieces side
Glueing Unit (P.U.R. Glue + Quick Melt unit) 283.203
Spraying Unit (for anti-release liquid)
Band Pressure zone + Edge coils supporting unit (No. 6 reels)
Snipping (end-cutting) 08.42 (Kw 0,66 x 2) work speed up to 20 + 30 m/min (0°-25°)
Rough Trimming unit 08.055.0.1680 (Kw 1,85 x 1)
Fine Trimming unit (Multi-profile, by N.C. adjustment, for 4 profiles) 08.0587 (Kw 1.0 x 2)
Multi-Profile Copying unit by N.C (fine + contour trimming) KFA 20 (Kw 0,5 x 1) max 20 m/min
Profile Scraping unit (Multi-profile, by N.C.) 08.516 (4 profiles)
Glue scraping unit 08.521
Spraying Unit (for polishing liquid)
Buffing unit 08.617-4 (Kw 0.18 x 4)
OPTION:Milling grooving unit (08.190) (Kw 4,5 x 1) swivelling 90°/180°/270° (adjustable by CN)
