Description

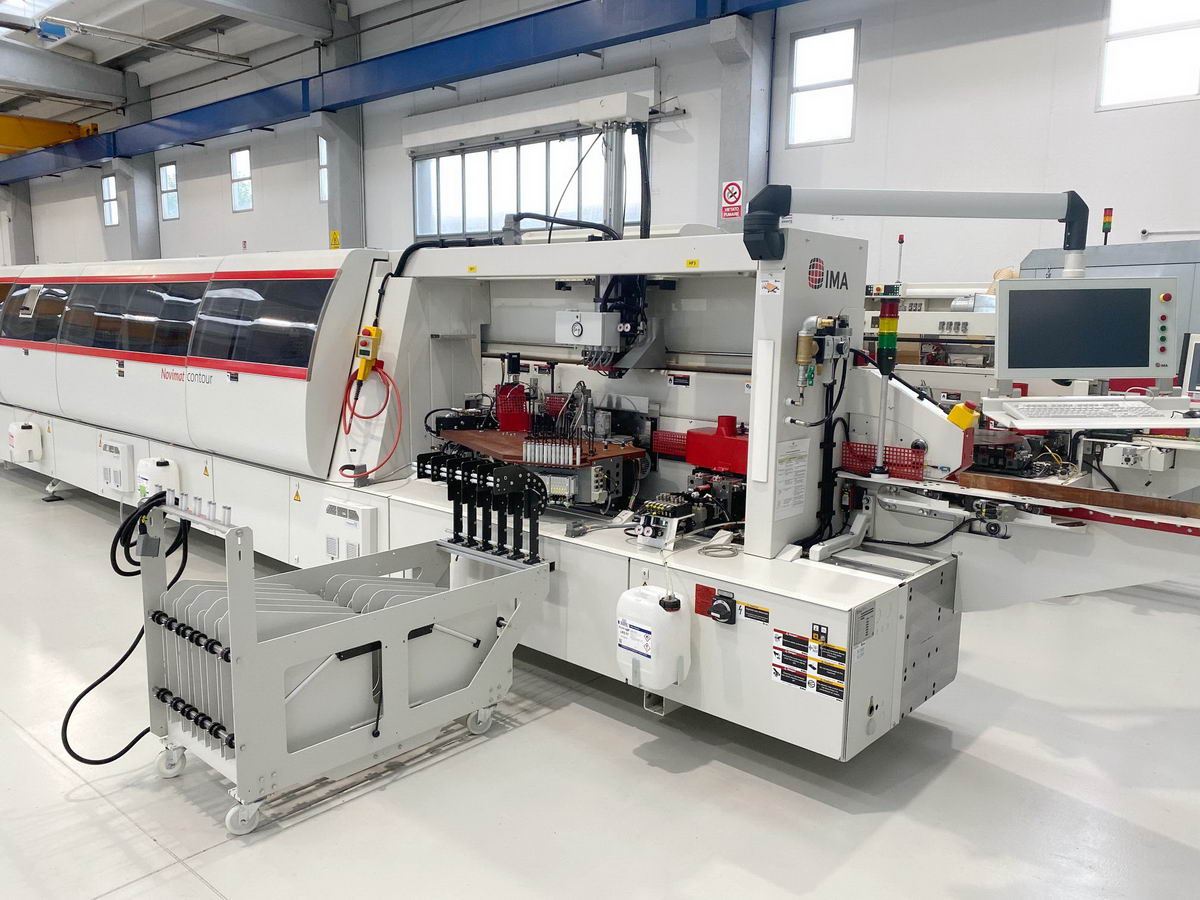

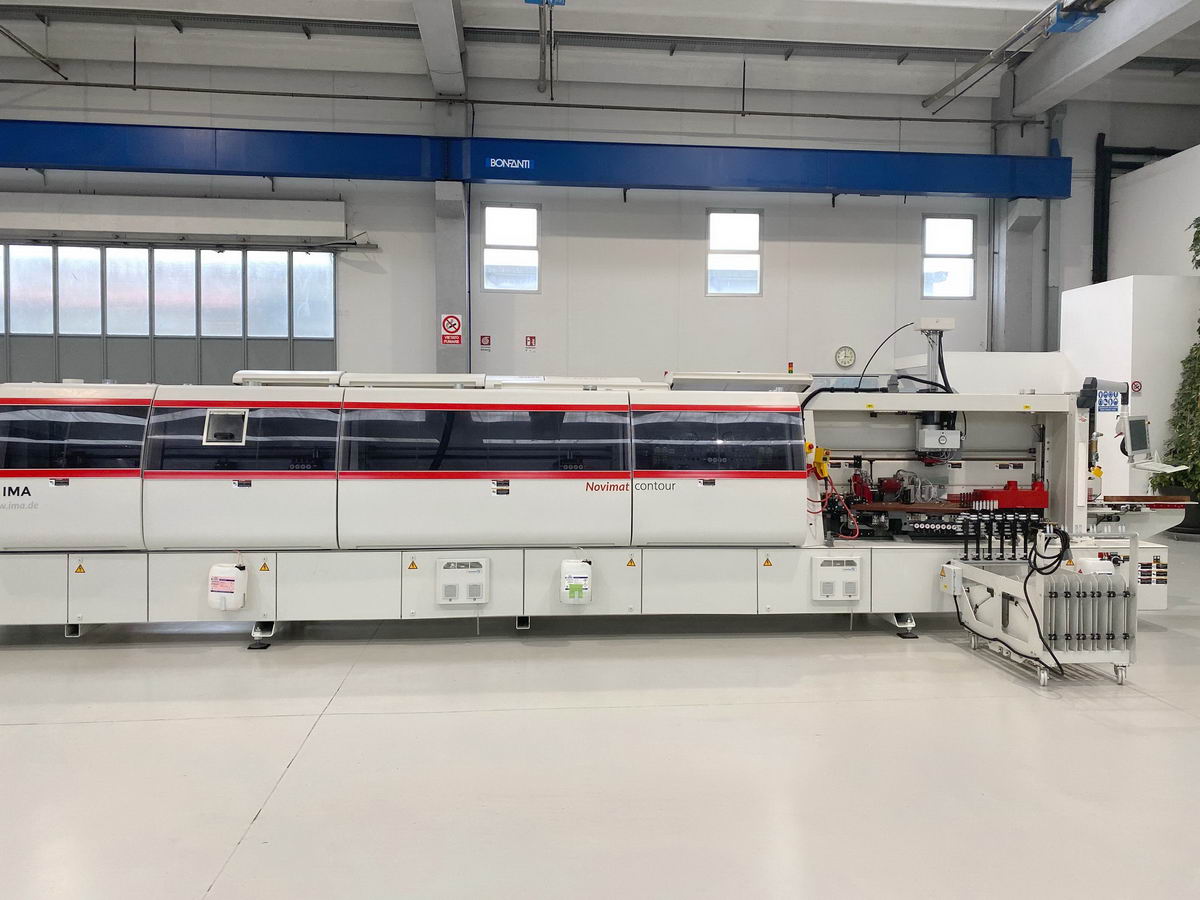

SINGLE-SIDE EDGE BANDER (LEFT-side)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Panels thickness (min/max) mm 8 / 60
Numerical Control ICOS Open
Feeding speed (adjustable) m/min 16 – 30
Top pressure system with rubber belt
Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C.
Pre-milling Unit (vertical joint trimmers) 08.379 (2 x Kw 4,0) adjustable by N.C.
Glueing Unit (P.U.R. Glue + Quick Melt system) VTG + 283.203
Band Pressure zone + Edge coils supporting unit (No. 6 reels)
Snipping (end-cutting) unit 08.42/30/B (Kw 0,2 x 2) speed 30 m/min (0°-25°)
Fine Trimming unit 08.0587 (Kw 1.0 x 2) 4 profiles
Multi Function Unit (Profile contour Trimming unit) KFA 20 (Kw 0,5 x 1) max 25 m/min
Profile edge scraping unit 08.516 (4 profiles)
Glue scraping unit 08.521
Spraying Unit (for polishing liquid)
Buffing unit 08.617-4 (Kw 0.18 x 4)
Milling grooving unit 08.190 (1 x Kw 4,5) CNC (90° / 180° / 270°) CNC
