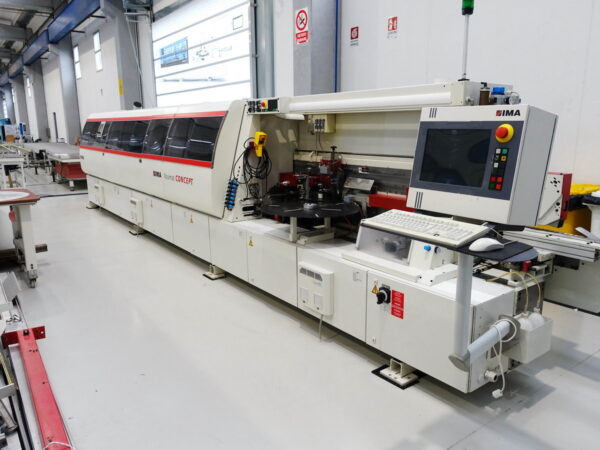

IMA Novimat Concept / I / G80 / 440 / L20

Code:
Y09018

Type:
EDGE BANDER

Brand:
IMA

Model:
Novimat Concept / I / G80 / 440 / L20

Categories: ,

Description

SINGLE-SIDE EDGE BANDER (LEFT-side)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Edges thickness in strips / lippings (min/max) mm 0,8 / 20
Panels thickness (min/max) mm 8 / 60
Numerical Control ICOS Open Compact
Feeding speed (adjustable) m/min 6 – 30
Top pressure system with rubber belt
In-feed fence, adjustable by N.C.

Pre-milling Unit (vertical joint trimmers) by N.C. 08.376 (Kw 4,5 x 2)
Lamps to heat the workpieces side
Glueing Unit (Hot Melt Glue + Quick Melt system) 283.1513 + 283.201
Band Pressure zone
Edge coils supporting unit (reels N°) 1
Snipping (end-cutting) unit 08.42 (Kw 0,66 x 2) max 30 m/min, 0°-25°
Fine Trimming unit 08.055 (Kw 1,85 x 2) 0°-30°
Spraying Unit (for sliding liquid)
Multi-Profile Copying unit by N.C (fine and contour trimming) 08.348 (KW 0,66 x 2) 4 profil
Profile edge scraping unit 08.516 (4 profil)
Glue scraping unit 08.50
Spraying Unit (for polishing liquid)
Buffing unit 08.612- 2 (Kw 0,25 x 2)
Milling grooving unit 08.183 (Kw 3 x 1)
