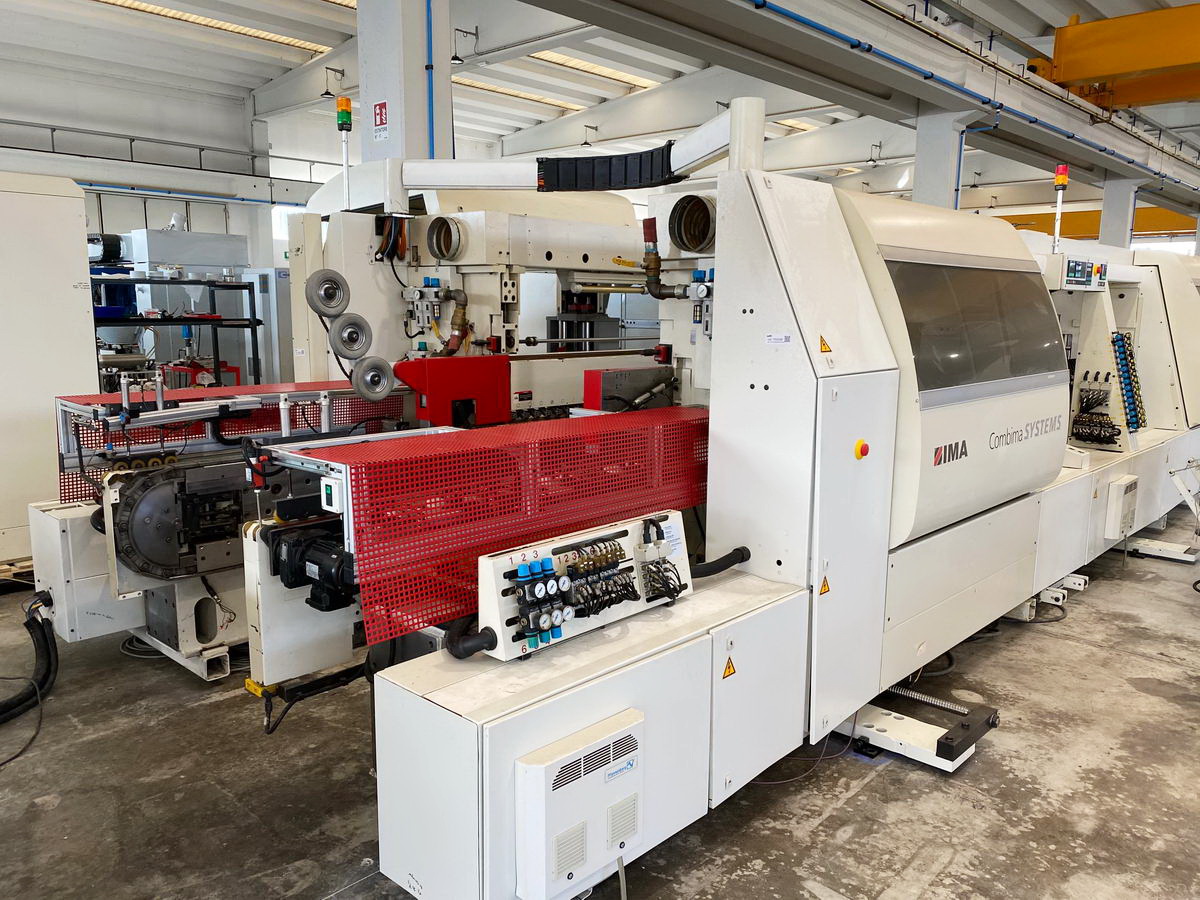

IMA Combima (softforming) 790 / K / II / R75 / R1,3 / SO

Code:
YZ0200B

Type:
COMBI MACHINE (SIZING & EDGE BANDING)

Brand:
IMA

Model:
Combima (softforming) 790 / K / II / R75 / R1,3 / SO

Description

Double-side Sizing-Milling & Edge Banding – First (1st) machine in a line
Edges (tape) thickness in rolls (min/max) mm 3
Edges thickness in stips / lippings max mm 1,3
Panels thickness (min/max) mm 10 / 45
Working width (min/max) mm 270 / mm 1300
Numerical Control /Software ICOS open
Adjustable feeding speed (m/min ) 10 – 50
Without Transmission bar (Master & Slave system)
Top pressure system with rubber belt

SIZING PART (for each side):
Pre-milling Unit (vertical joint trimmers) 75.30 (Kw 6,6 x 1)

EDGE-BANDING PART (for each side):
Glueing Unit (P.U.R. Glue + Quick Melt system) 04.1569 + 283.205
Pressing roller (revolver) both for straight and shaped edges (softforming) mm 1.050
Edge coils supporting unit (reels N°) 6
Snipping (end-cutting) unit 08.42 (Kw 0,2 x 2) 40 m/min
Rough Trimming unit 08.055 (Kw 0,66 x 2) 0°-30°
Fine Trimming unit 08.0582 (Kw 0,66 x 2) 0°-30°
Glue scraping unit 08.50
Buffing unit 08.617-2 (Kw 0,18 x 2)
