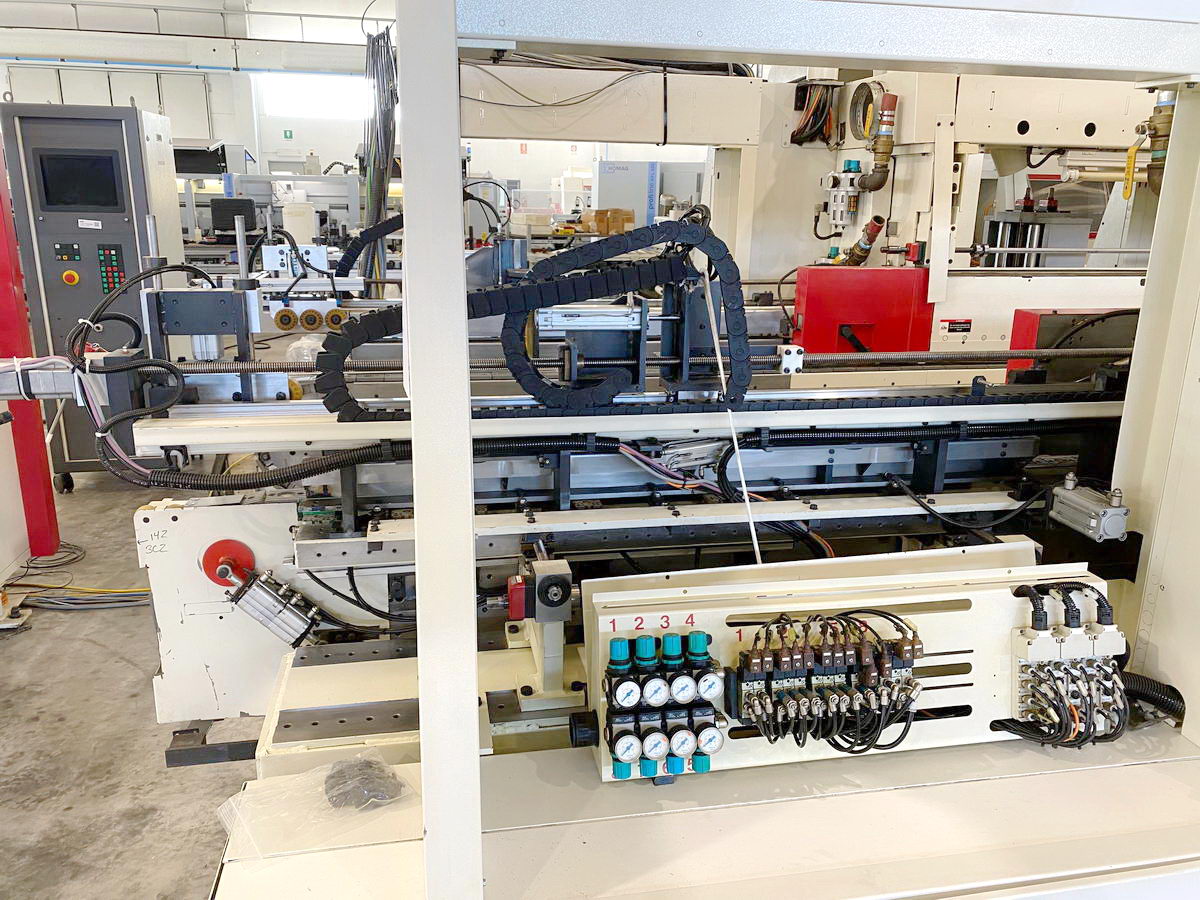

IMA Combima /K /II /950 /F /R75 /R1.3

Code:
YZ0200D

Type:
COMBI MACHINE (SIZING & EDGE BANDING)

Brand:
IMA

Model:
Combima /K /II /950 /F /R75 /R1.3

Description

Double side – Independent Machine (or 1st and/or 2nd in a line)
Edges (band in rolls) thickness (Min/Max) mm 0,4 / 3
Edges thickness in strips/lippings max) mm 1,3
Panels thickness (min/max) mm 10 / 45
Working width (min/max) mm 244 / 2300 ca.
Numerical Control /Software ICOS Open
Adjustable feeding speed (m/min ) 8 – 40
Without Transmission bar (Master & Slave system)
Safety and sound-proof enclosures/cabins
Distance (center-axes) of the Disappearing Dogs (mm) 270

SIZING PART (for each side):
Pre-Milling unit 75.30 (Kw 6,6 x 2)

EDGE-BANDING PART (for each side):
Glueing Unit (P.U.R. Glue + Quick Melt system) 04.1570 + 283.205
Edge coils supporting unit (reels N°) 6
Snipping (end-cutting) unit 08.42 (Kw 0,2 x 2) 40 m/min
Fine Trimming unit 08.055 (Kw 0,66 x 2) 0°-30°
Multi Function Unit (Profile contour Trimming unit) MFA 08.342 (Kw 0,66 x 2) max 25 m/min
Corner Rounding unit (Contour Trimming) 08.465 (Kw 0,18 x 4) max 20 m/min
Buffing unit 08.617-2 (Kw 0,18 x 2)
Free space
