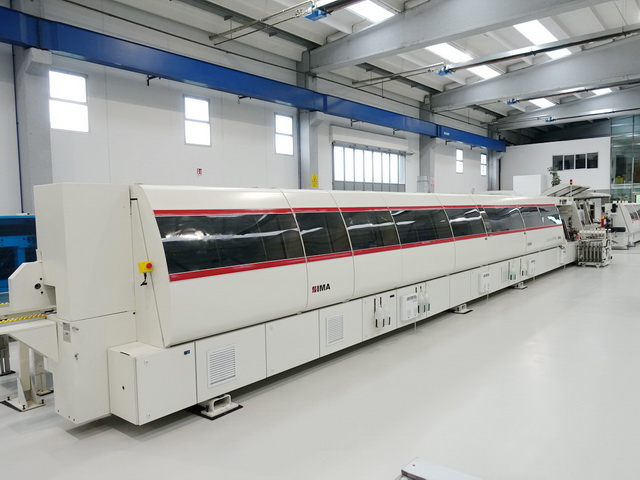

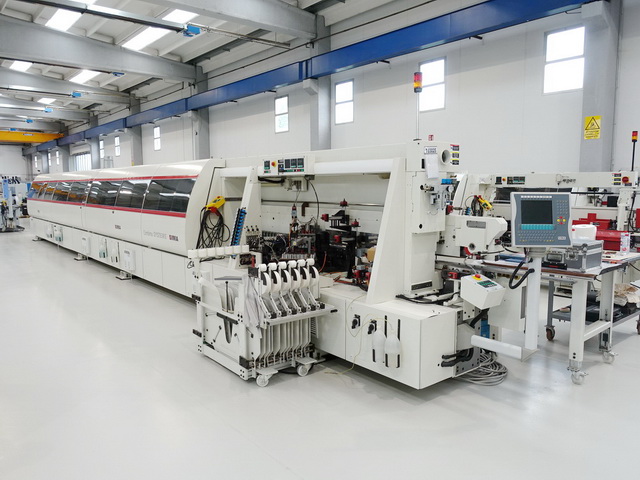

SINGLE-SIDE SIZING & EDGE BANDING MACHINE (Left side machine)
Edges (tape) thickness in rolls (min/max) mm 0,3 – 3
Edges thickness in strips / lippings (min/max) mm 1 ALU
Panels thickness (min/max) mm 6 – 55
Numerical Control /Software IMATRONIC 121 /01
Adjustable feeding speed (m/min ) 6 – 30
SIZING PART :
Pre-milling Unit (vertical joint trimmers) adjustable by N.C. (2 x Kw 4,5) 08.376
Spraying unit (Anti-sticking liquid)
EDGE-BANDING PART :
Lamps to heat the workpieces side + Glueing Unit (P.U.R. Glue + Quick Melt unit) 04.1569
Band Pressure zone mm 1000 + Edge coils supporting unit (N. 6 reels)
Snipping (end-cutting) unit 08.42 (2 x Kw 0,66) working speed 25 m/min (swivelling 0-25°)
Rough Trimming unit 08.0555 (2 x Kw 1)
Fine Trimming unit 08.055 (2 x Kw 1) 30° + Spraying Unit (for sliding liquid)
Multi-Profile Copying unit 08.348 (fine and contour trimming) adjustment by N.C (2 x Kw 0,66)
Profile edge scraping unit (Multi-profile, adjustable by N.C.) 08.516
Glue scraping unit 08.517 (Pneumatic)
Spraying Unit (for polishing liquid)
Buffing unit 08.614 (2 x Kw 0,25)
OPTIONAL: Milling grooving unit 08.183 (1 x Kw 3)
Smoothing unit with spheres 08.53
Chamfer Sanding Unit (Abrasive paper, top & bottom) WI (4 motors x Kw 0,75)
