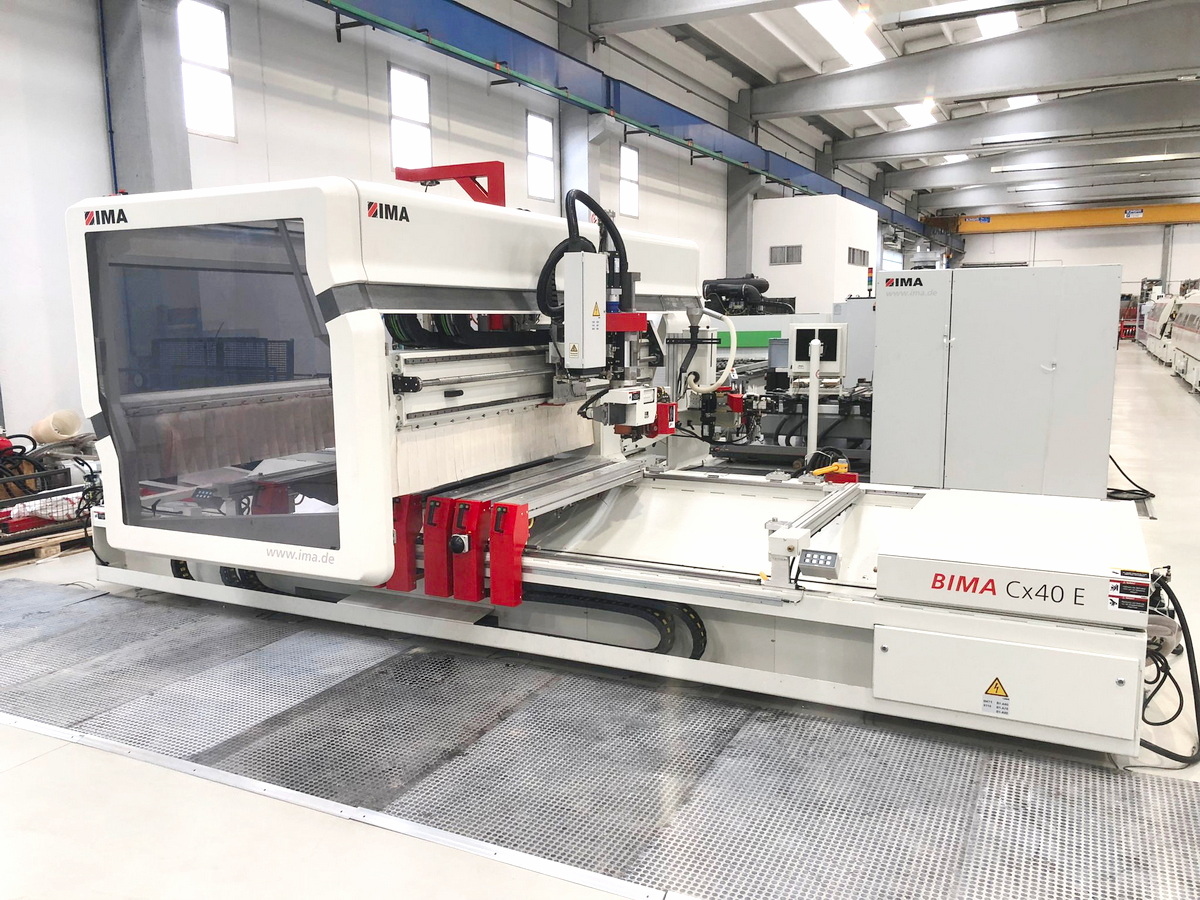

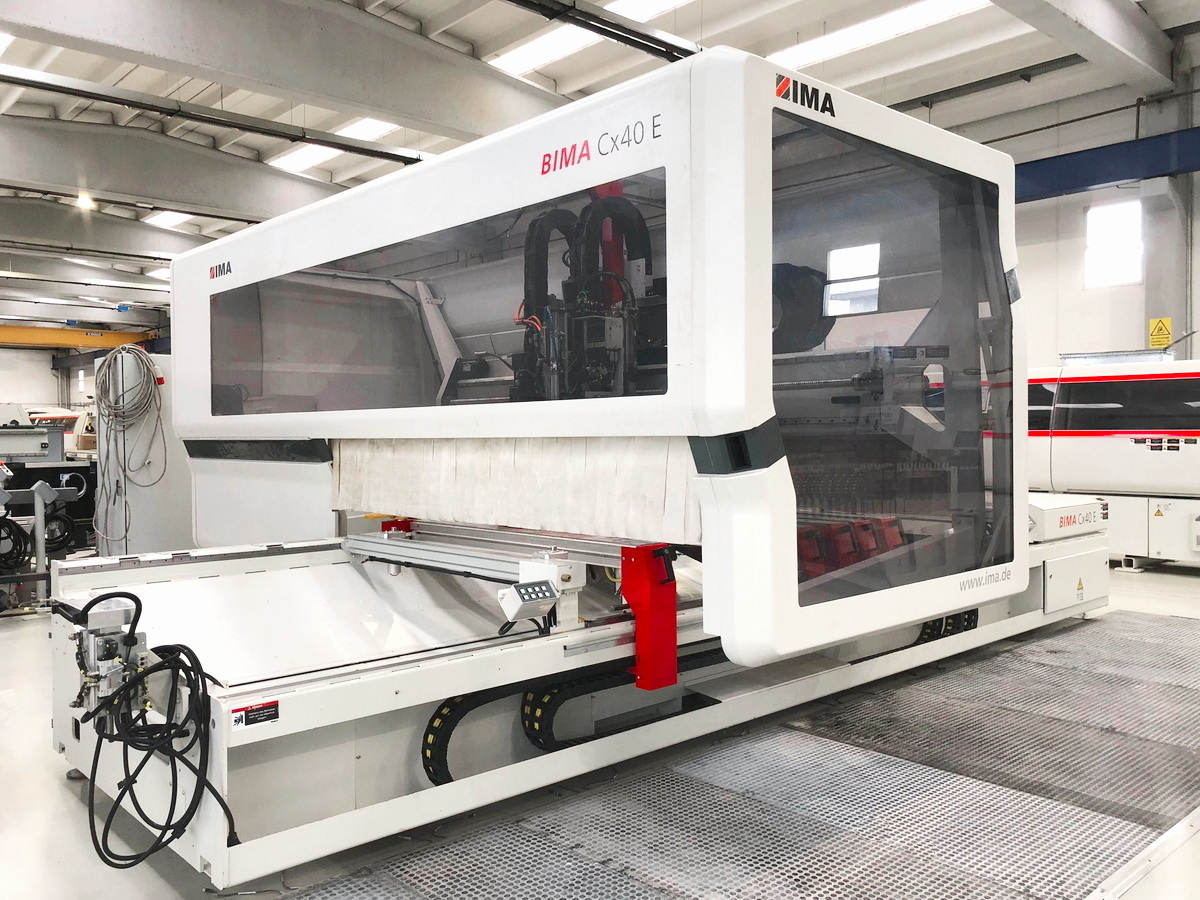

C.N.C. WORKING CENTER with 4 axes (X-Y-Z-C) for routering, boring, cutting and edge banding
Numerical Control ICOS CNC (IMAWOP)
Max useful working area (without edge banding process) mm 3100 x 2000 x 100
Max useful working area (edge banding process) mm 3100 x 1925 x 60 (panel thickness)
No. 6 movable rails (supports) length mm 1400
LED displaying both the axe X and axe Y position
Vacuum cups (with No. 1 vacuum pump, capacity 250 m3/h)
Safety side metal grids and front emergency carpets

No. 1 Vertical Electro-spindle HSK F63 ( Kw 18)
Automatic Tools Changing System, with 18 folds (places)
No. 14 Independent vertical boring spindles (2 x Kw 1,2)
Aggregate Boring Unit, “cross” shape, with 4 horizontal spindles + Circular saw (diam. mm 125)
Banding group on board – Glueing Unit (Hot Melt Glue) VT 100
Edge coils supporting unit (No. 2 reels)

OPTIONALS:
No. 1 Aggregate “FLEX 5” Mod. VARIO NC
No. 1 Aggregate Flush Milling / Trimming
No. 1 Aggregate Flush-Trimming / Profile Scraping Unit
No. 1 Bar Code Reader
