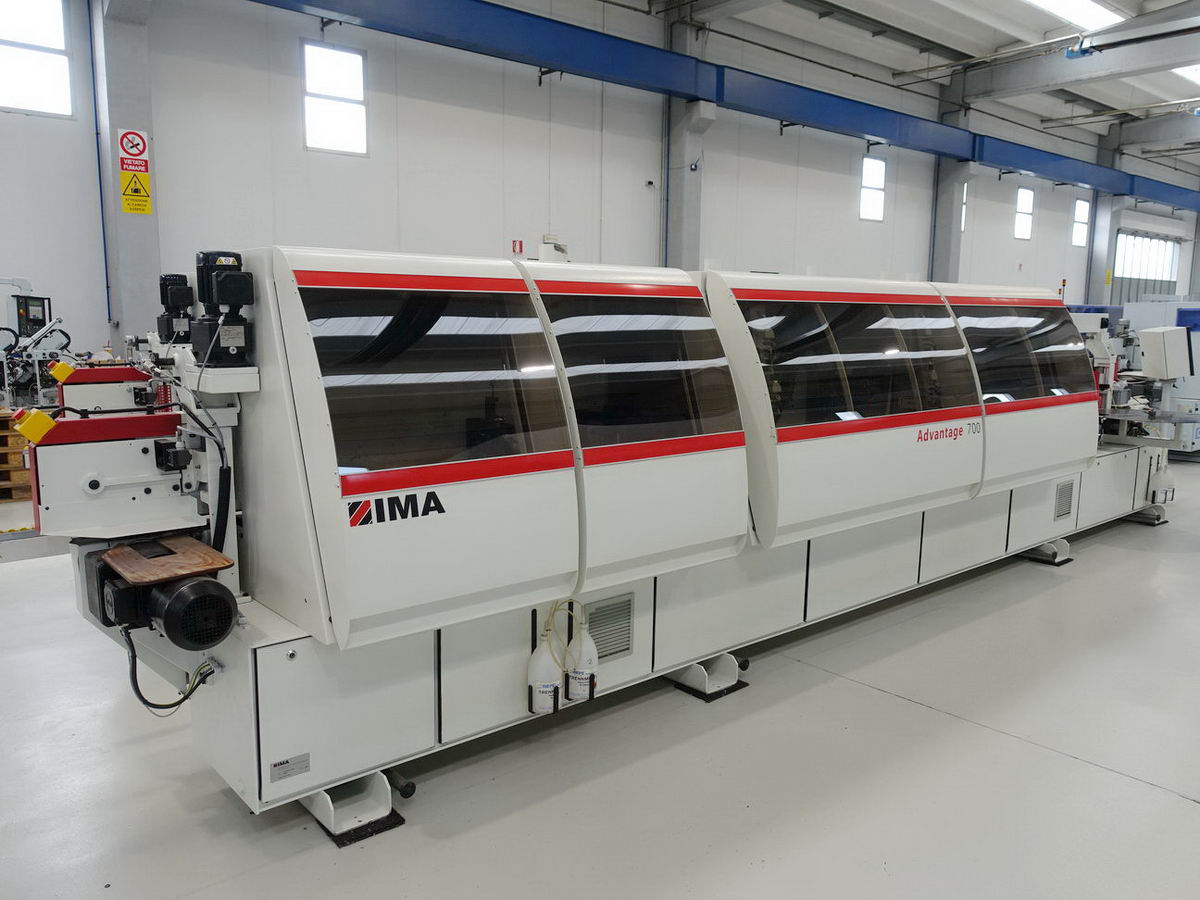

SINGLE-SIDE EDGE BANDER (LEFT-side)
Edges (band in rolls) thickness (Min/Max) mm 0,3 – 3
Edges thickness in stips / lippings (min/max) mm 3 – 12
Panels thickness (min/max) mm 8 – 60

Numerical Control ICOS open TS
Feeding speed (adjustable) m/min 4 – 20
Top pressure system with rubber belt

Spraying unit (Anti-sticking liquid)
Pre-milling Unit (vertical joint trimmers) 08.376 (2 x Kw 3)
Glueing Unit (Hot Melt Glue) 283.1513
Band Pressure zone
Edge coils supporting unit (reels N°) 1

Snipping (end-cutting) unit 08.415 (2 x Kw 0,66)
Fine Trimming unit 08.055 (2 x Kw 1) 0°-30°
Multi Function Unit (Profile contour Trimming unit) 08.342 (2 x Kw 0,66) servo
Profile edge scraping unit 08.519
Glue scraping unit 08.50
Buffing unit 08.612 (2 x Kw 0,25)
Free space
