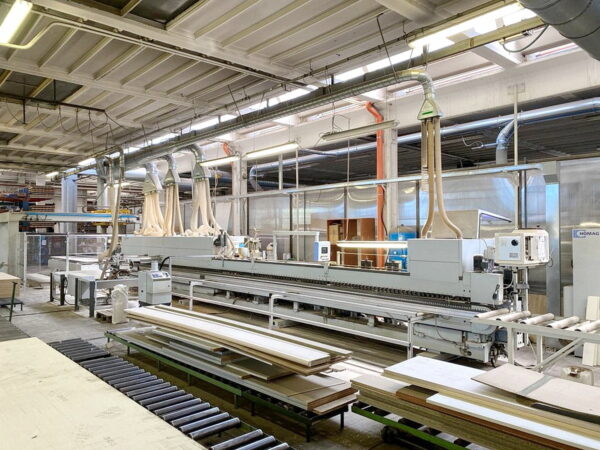

SINGLE-SIDE Sizing-Milling & Edge Banding Line PRE-FORMING (DIRECT POSTFORMING), composed of the following machines:

A) Double station bridge loader “ESSE2/TREVISAN”, with motorised roller conveyor

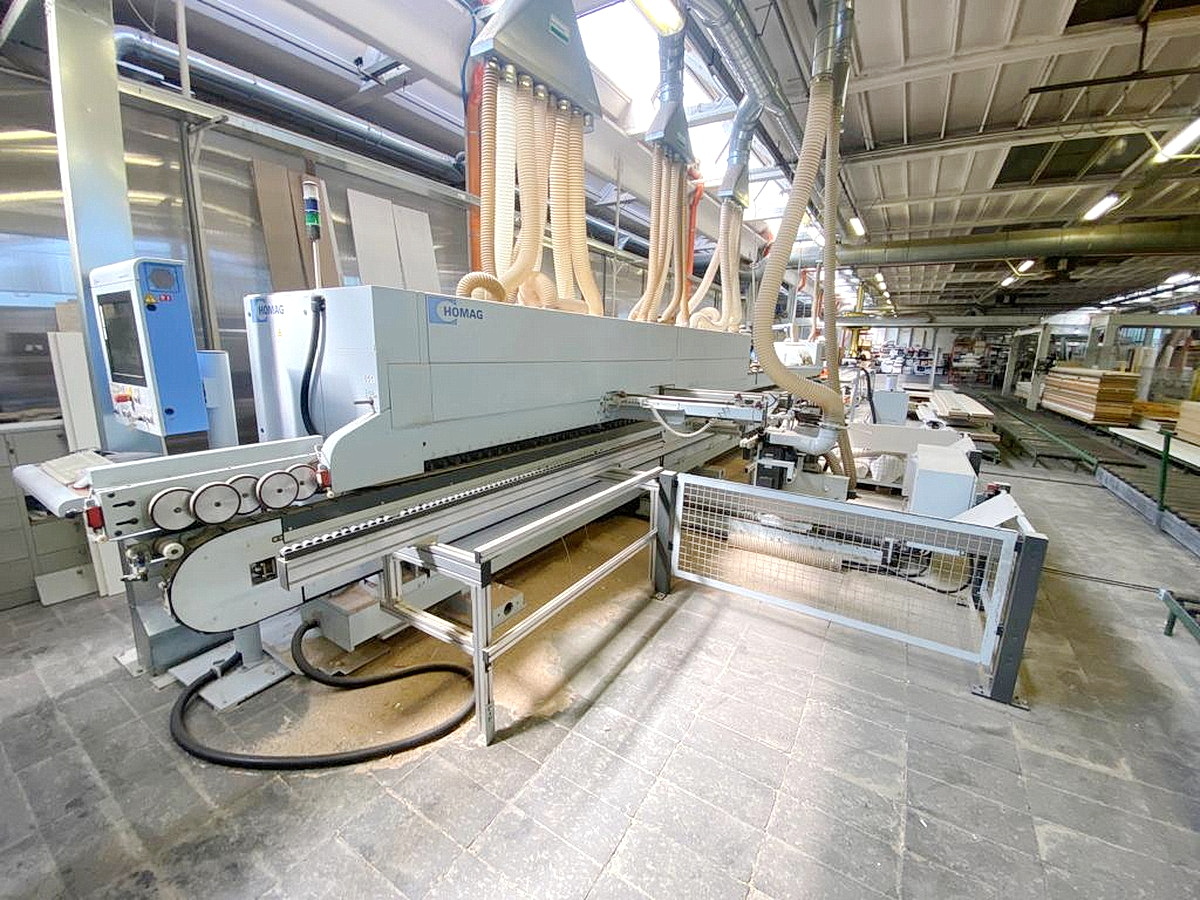

B) Single-side Sizing & Edge Banding “HOMAG” Mod. Profi VFL610/25/P/A preforming
Edges (tape) thickness in rolls (min/max) max mm 0.35 (for U and L profiles)
Panel thickness (min/max) mm 16 / 30 (optional mm 50)
Working width (min/max) min mm 150 – Variable feeding speed (m/min) 10 – 32
Numerical control / PC 22 software / WoodCommander
01°) Horizontal milling unit (for top incision) Kw 2,2
02°) Hogging Unit (Kw 15) 0°-15° (for pre-hogging from above)
03°) Milling Shaping Unit Kw 6,6 (top rebate milling) with Hydro-clamp
04°) Milling Shaping Unit Kw 6,6 (bottom rebate milling) 0°-120° (with Hydro-clamp)
05°) Milling Shaping Unit Kw 0.7 (radius milling for profile finishing)
06°) Milling Shaping Unit Kw 1.85 (U profile milling) HSK25
07°) Milling Grooving unit UF 11 (Kw 4) for grooving or rebate milling
08°) Milling Shaping Unit Kw 2,2 (milling for chamfering and laminate overhang at top)
09°) Milling Shaping Unit Kw 2,2 (milling for the bottom bend groove)
10°) RIGHT SIDE: Milling Shaping Unit Kw 6,6 (grooving & rebate milling)
panel width mm 160 – 1050
11°) RIGHT SIDE: Fine trimming unit (2 x Kw 1) for top and bottom edging and finishing (0°-25°)
12°) Cleaner / Blower (Kw 0,55) of postformed piece
13°) Laminate overhang control (to detect laminate breakages)
14°) Glueing Unit (P.U.R) Glue (PU34+QA34) spray glue application (with nozzles)
15°) Pressure zone for “L” profile (VF Direct) for panels up to max. thickness 50 mm
16°) Pressure zone for “U” profile (for spacer profile R = 2.5 mm)
17°) Upper Circular Knife
18°) Fine Trimming Unit / Finishing Unit (2 x Kw 0.55) HSK25 (0°-30°)
19°) Oscillating upper cleaner (1 x Kw 0.25)

C) Double station bridge unloader “ESSE2/TREVISAN”, with motorised roller conveyor
