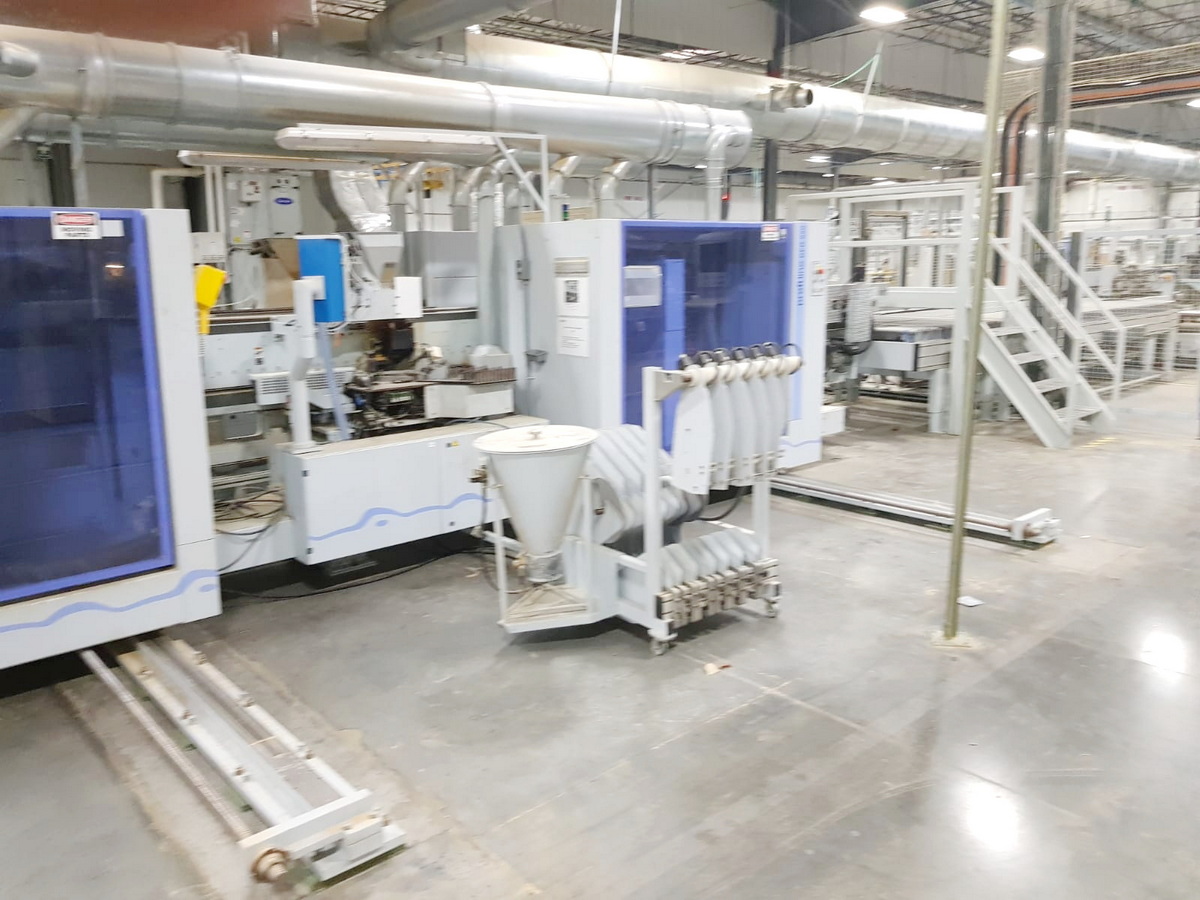

HOMAG KFR 620 / 19 / QA / 25

Code:
X04004E

Type:
COMBI MACHINE (SIZING & EDGE BANDING)

Brand:
HOMAG

Model:
KFR 620 / 19 / QA / 25

Description

Double side – Independent Machine (or 1st and/or 2nd in a line)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Panels thickness (min/max) mm 8 / 60
Working width (min/max) mm 240 / 2500
Numerical Control PC 22
Adjustable feeding speed (m/min) 10 – 60 (HIGH PERFORMANCE – SPEED PACKET)
Distance (center-axes) of the Disappearing Dogs (mm) 500

SIZING PART (for each side):
Anti-chipping Milling Unit 1 x Kw 4,5 (hydro-clamping)
Hogging Units KD 11 (2 x Kw 8,1) hydro-clamping

EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt Glue + Quick Melt system) A3 + A34
Edge coils support (No 6 reels)
Band Pressure zone “C”
Rough Trimming unit 2 x Kw 0,55
Fine Trimming unit (multi-profile) MF 20 (2 x Kw 0,55) 20°
Corner Rounding unit (Contour Trimming) FF22 (4 x Kw 0,4) max 35 m/min
Profile edge scraping unit PN 20
Finish processing unit (Glue scraper + Buffing unit) FA 11
Free space
