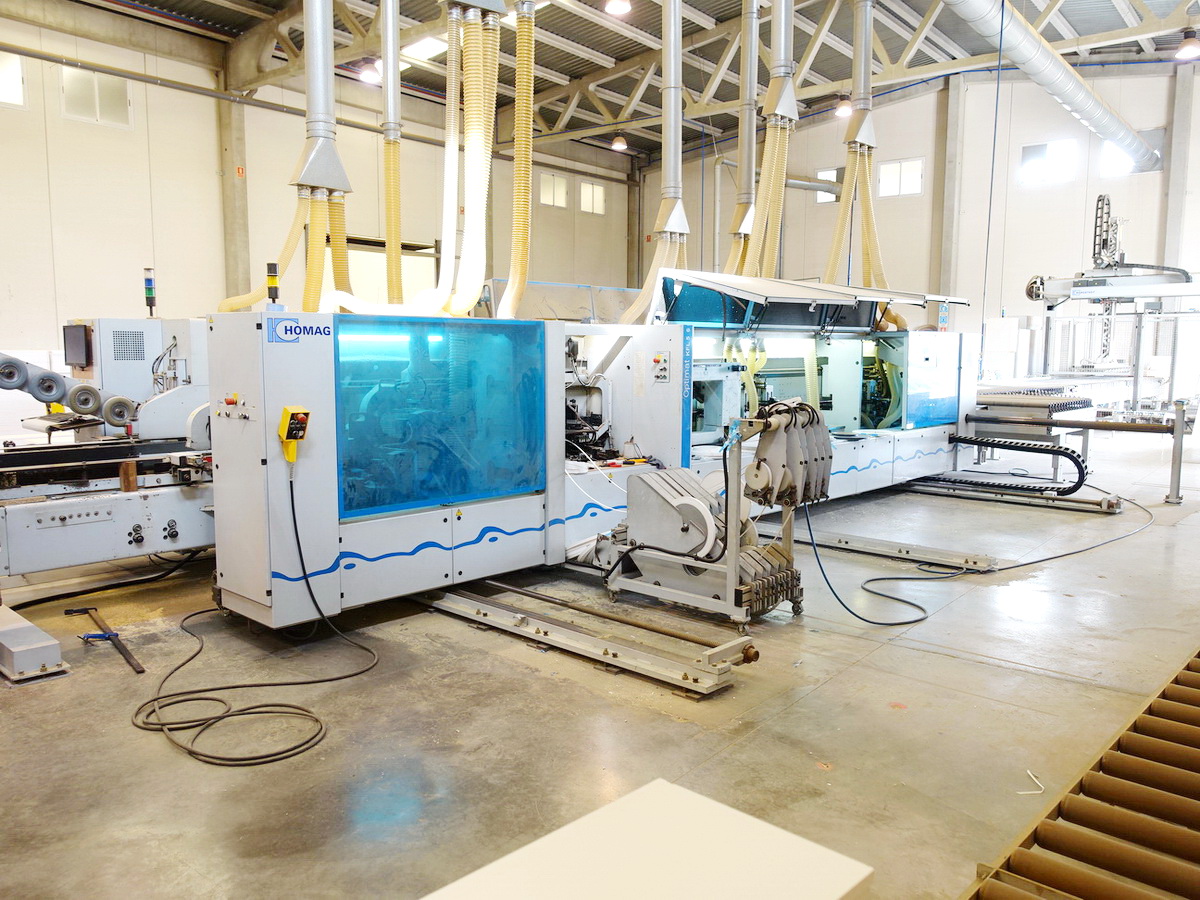

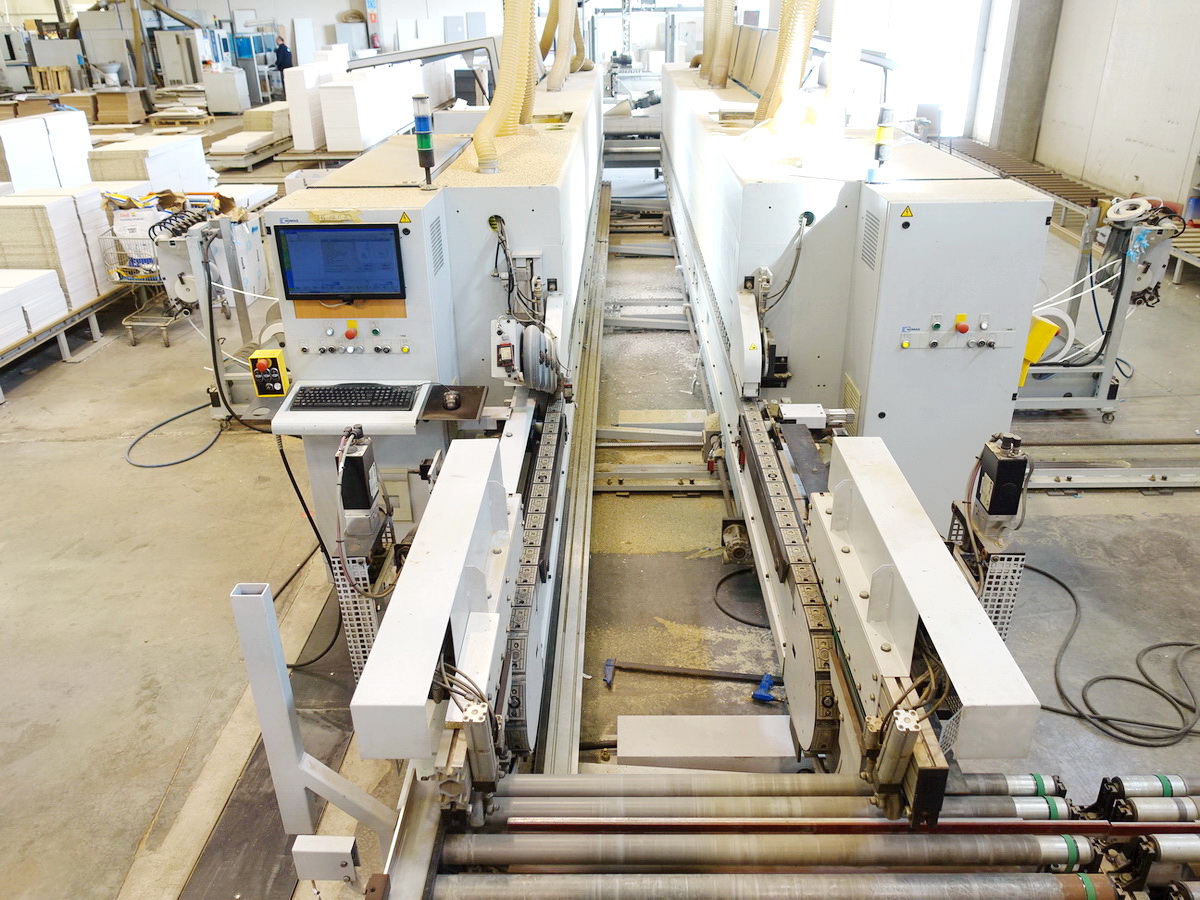

Double side – Independent Machine (or 1st and/or 2nd in a line)
Edges (band in rolls) thickness (Min/Max) mm 0,3 -3 (1° pass.)
Panels thickness (min/max) mm 12 / 40
Working width (min/max) mm 220 / 2500
Numerical Control PC 22
Adjustable feeding speed (m/min) 15 – 40
Safety and sound-proof enclosures/cabins
SIZING PART (for each side):
Anti-chipping Milling Unit (1 x Kw 4,5)
Hogging Units KD 11 (Kw 6,6 x 2)
Free space
Spraying unit (Anti-sticking liquid)
EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt Glue + Quick Melt system) A34
Band Pressure zone (N.C. adjustment) “A”
Edge coils supporting unit (No. 6 reels)
Snipping (end-cutting) unit HL 04 (Kw 0,18 x 2) Pneu
Rough Trimming unit Kw 0,55 x 2
Fine Trimming unit Kw 0,4 x 2 (0°-25°)
Milling grooving unit Left side only: UF11 (Kw 0,4 x 1) 90°
Profile edge scraping unit PN 20 (pneumatic)
Finish processing unit ( Glue scraper + Buffing unit) FA 11
Spraying Unit (for polishing liquid)
