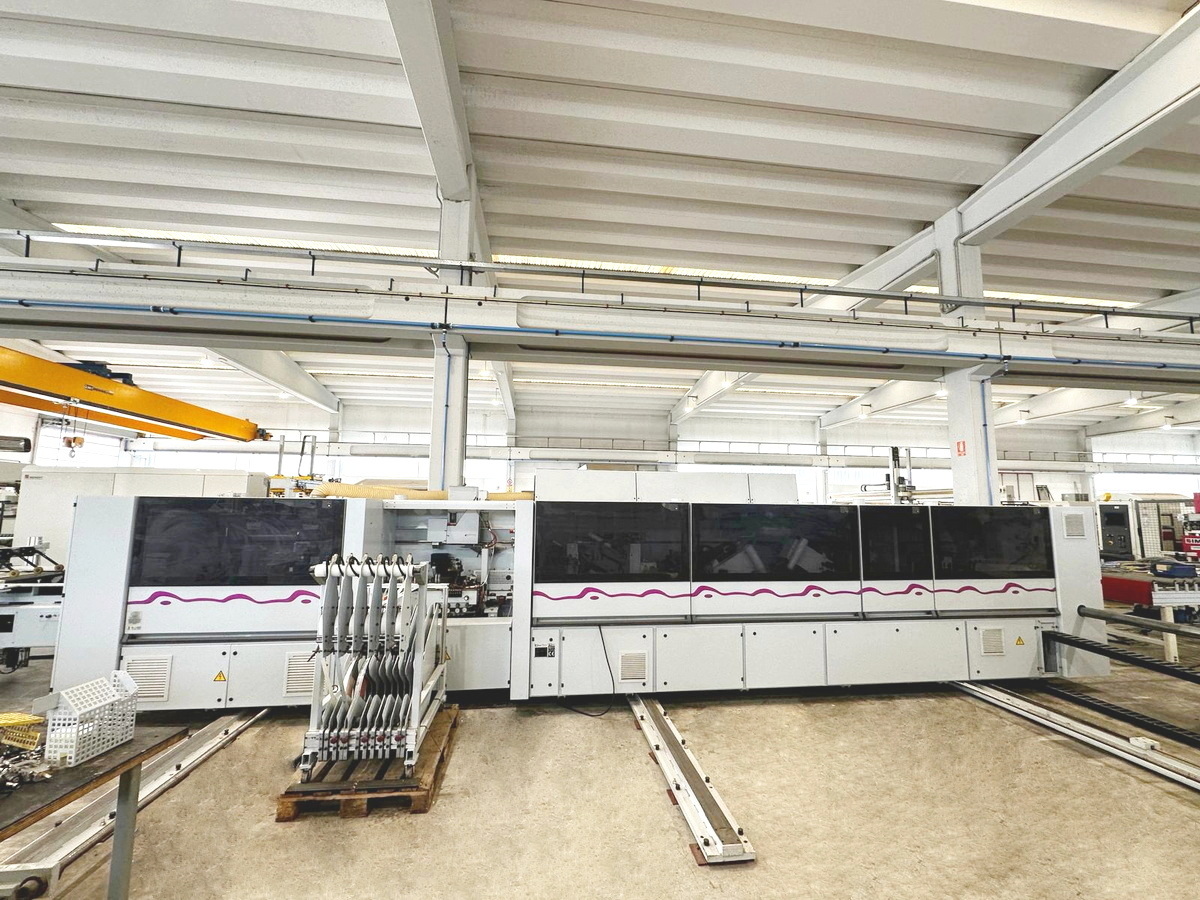

Double side – Independent Machine (or 1st and/or 2nd in a line)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Panels thickness (min/max) mm 12 / 60
Working width (min/max) mm 225 / 2500
Numerical Control NC 21 / HOMATIC
Adjustable feeding speed (m/min) 15 – 50
Safety and sound-proof enclosures/cabins
Distance (center-axes) of the Disappearing Dogs (mm) 500
SIZING PART (for each side):
Spraying unit (Anti-sticking liquid)
Anti-chipping Milling Unit 1 x Kw 4,5
Hogging Units KD 11 (2 x Kw 6,6)
LEFT SIDE: Jumping Milling Unit (for grooving) SF 20 (Kw 6,6 x 1) 0°-90°
RIGHT SIDE: Free space
EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt Glue + Quick Melt system) A3 + A34
Edge coils support (No 6 reels)
Band Pressure zone “A” (1 + 4 rollers)
Snipping (end-cutting) unit HL 04 (2 x kW 0,18)
Rough Trimming unit 2 x Kw 0,55 (0°-35°)
Multi Function Unit (Profile contour Trimming unit) FK 11 (2 x Kw 0,4)
Profile edge scraping unit PN 20
Glue scraping unit (Pneu) +Buffing unit (2 x Kw 0,25)
