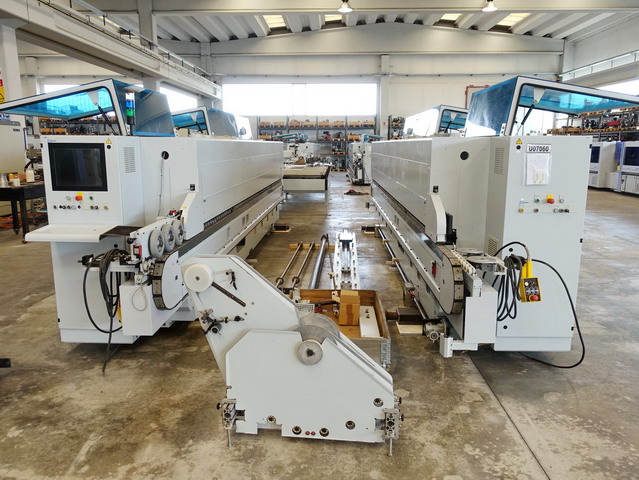

Double side – First (1st) machine in a line Machine
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Panels thickness (min/max) mm 12 – 40
Working width (min/max) mm 250 / 2500
Numerical Control /Software Power Control 22 / woodCommander
Adjustable feeding speed (m/min) 15 – 35
Safety and sound-proof enclosures/cabins
Working line (work units support tables), manual adjustment
SIZING PART (for each side):
Hogging Units KD 10 (2 x Kw 6,6)
Free space
Milling grooving unit SF 20 (1 x Kw 6,6)
Spraying unit (Anti-sticking liquid)
EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt Glue + Quick Melt system) A3 + A34
Band Pressure zone A
Edge coils supporting unit (reels N°) 2
Rough Trimming unit Optimat (2 x Kw 0,55)
Fine Trimming unit (2 x Kw 0,55)
Profile edge scraping unit PN 20
Finish processing unit ( Glue scraper + Buffing unit) FA 11
Spraying Unit (for polishing liquid)
