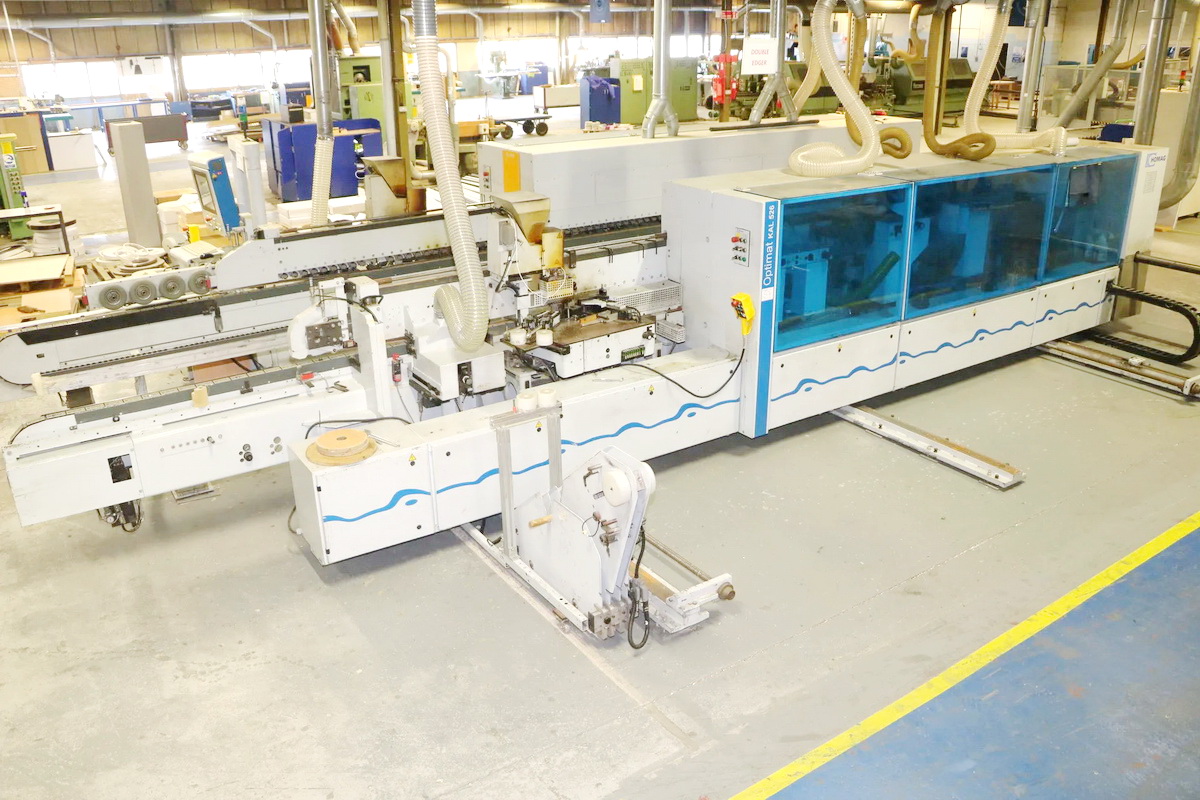

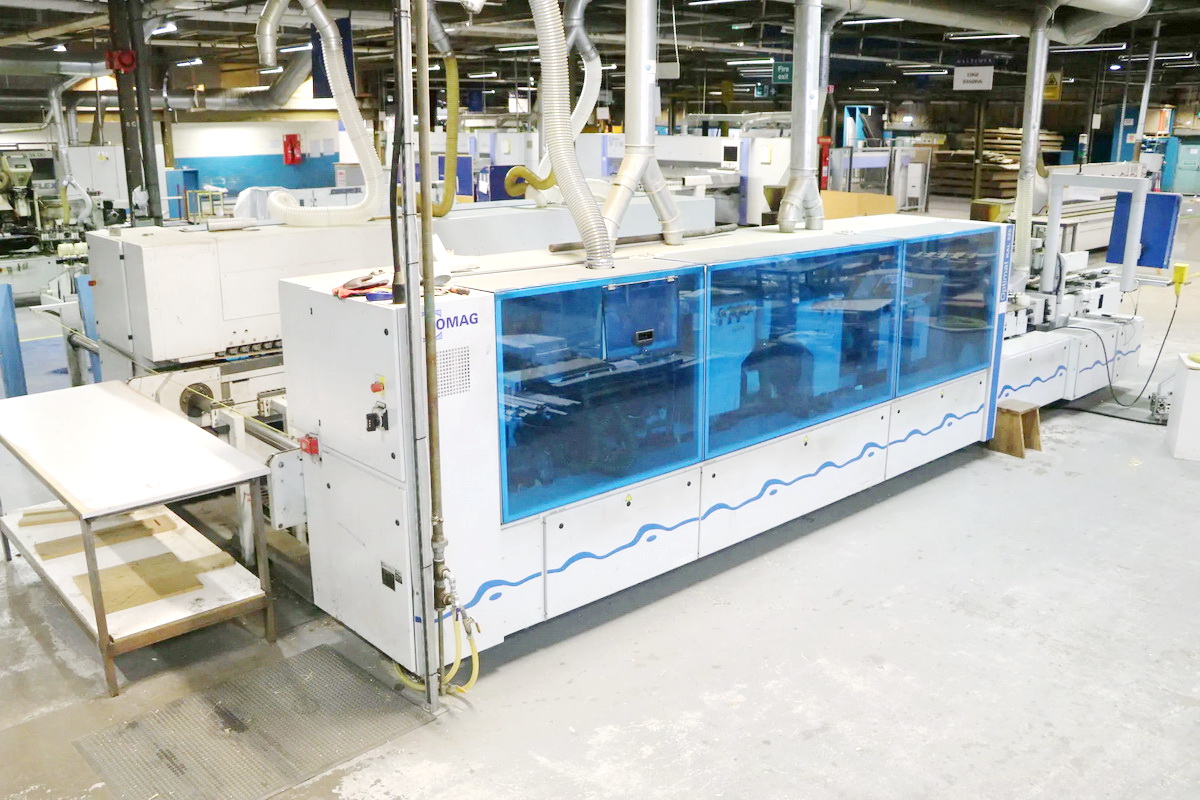

DOUBLE-SIDE EDGE BANDER

Min/max edges (band) thickness in rolls mm 0,3 – 3
Edges thickness in stips / lippings (min/max) mm 0,4 – 12
Min/ max panels thickness mm 12 – 40
Min /max working width mm 220 – 3000
Numerical Control: Power Control PC 22
Feeding speed (adjustable) m/min 10 – 32
Distance (center-axes) of the Disappearing Dogs (mm) 500

Top motorized pressure belt
Pre-Milling Unit (Vertical joint trimmers) (2 x Kw 4)
Glueing Unit (Hot Melt + Quick Melt system): A12 + A34
Band Pressure zone (N.C. adjustment): “C”
Edge coils supporting unit with N. 2 coils

Snipping Unit: HL81 (PNEU) (2 x Kw 0,8) Max 25 m/min
Rough Trimming unit: OPTIMAT (2 x Kw 1,5)
Multi Function Unit (Profile contour Trimming unit): FK11 (2 x Kw 0,4)
Profile edge scraping unit. PN10 (PNEU)
Milling grooving unit UF11 (1 x Kw 4) Only left side
Finish processing unit (Glue scraper + Buffing unit): FA11 (PNEU)
Spraying & polishing unit
