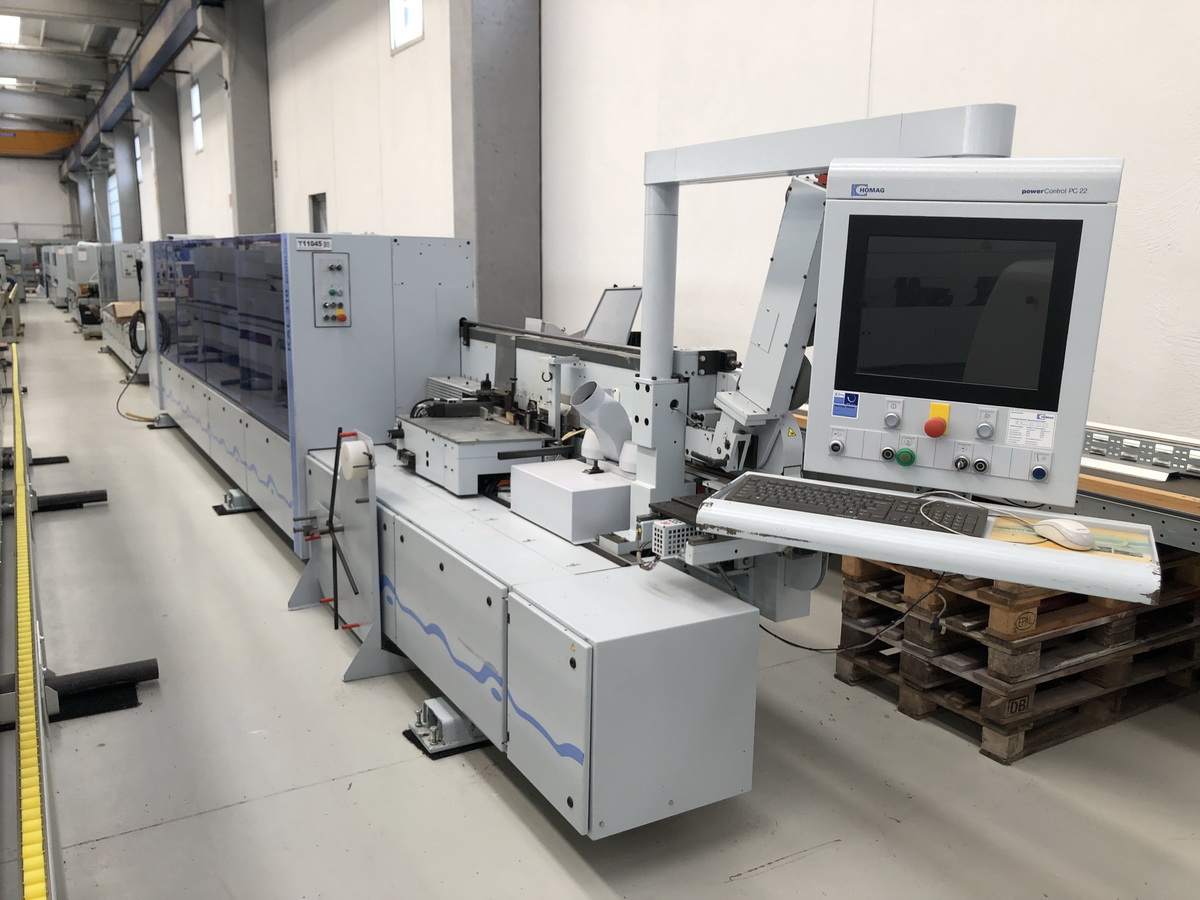

SINGLE SIDE EDGE BANDER (Left)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Edges thickness in stips / lippings (min/max) mm 0,4 / 20
Panels thickness (min/max) mm 12 / 60

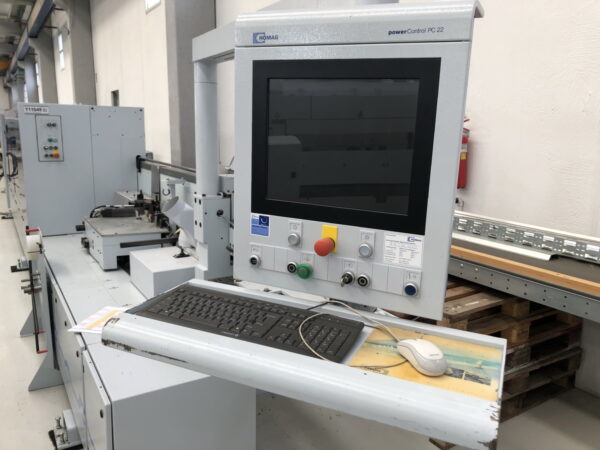

Numerical Control Power Control 22
Feeding speed m/min 18-25 (optional)

Top pressure system with rubber belt
In-feed fence, adjustable by N.C.
Pre-milling Unit (vertical joint trimmers) 2 x Kw 3
Lamps to heat the workpieces side
Glueing Unit (Hot Melt + Quick Melt Unit) A20 + QUICKMELT
Band Pressure zone (N.C. adjustment) “C”
Edge coils supporting unit (No. 1 reel)

Snipping (end-cutting) unit HL 84 (2 x Kw 0,8) max 25 m/min
Rough Trimming unit BF20 (2 x Kw 1,5)
Multi Function Unit (Profile contour Trimming unit) FK 13 (2 x Kw 0,4) CNC (revolver 8+8 pos.)
Profile edge scraping unit (Multi-profile, by N.C.) MN 21
Finish processing unit ( Glue scraper + Buffing unit) FA10, 11, 12
Milling grooving unit UF11 (1 x Kw 4)
