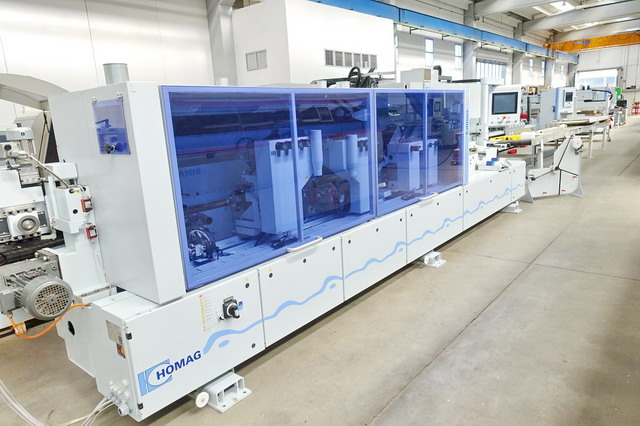

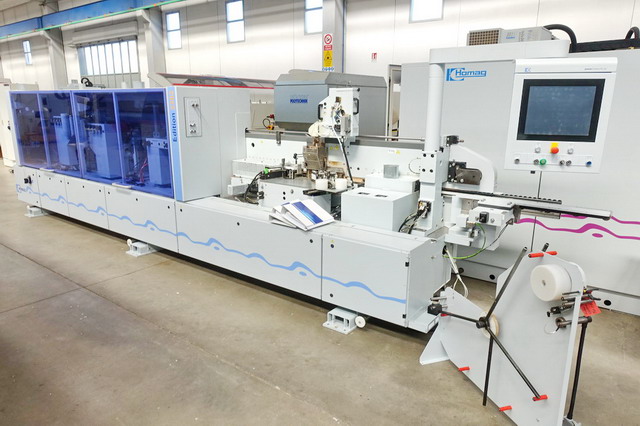

SINGLE SIDE EDGE BANDER (Left)
Edges (band in rolls) thickness (Min/Max) mm 0,3 – 3
Edges thickness in strips / lippings (min/max) mm 0,4 – 6
Panels thickness (min/max) mm 8 – 60

Numerical Control PC22
Feeding speed (adjustable) m/min 18 – 25
Top pressure system with rubber belt
In-feed fence, adjustable by N.C.

Pre-milling Unit (vertical joint trimmers) 2 x kW 4,0
Glueing Unit (Hot Melt Glue + Quick Melt system)
Band Pressure zone (N.C. adjustment)
Edge coils supporting unit (No. 2 reels)

Snipping (end-cutting) unit HL 81 ( 2 x kW 0,8)
Rough Trimming unit BF10 ( 2 x kW 0,55)
Multi Function Unit (Profile contour Trimming unit) FK11 (2 x kW ??)
Profile edge scraping unit PN10
Finish processing unit ( Glue scraper + Buffing unit)
