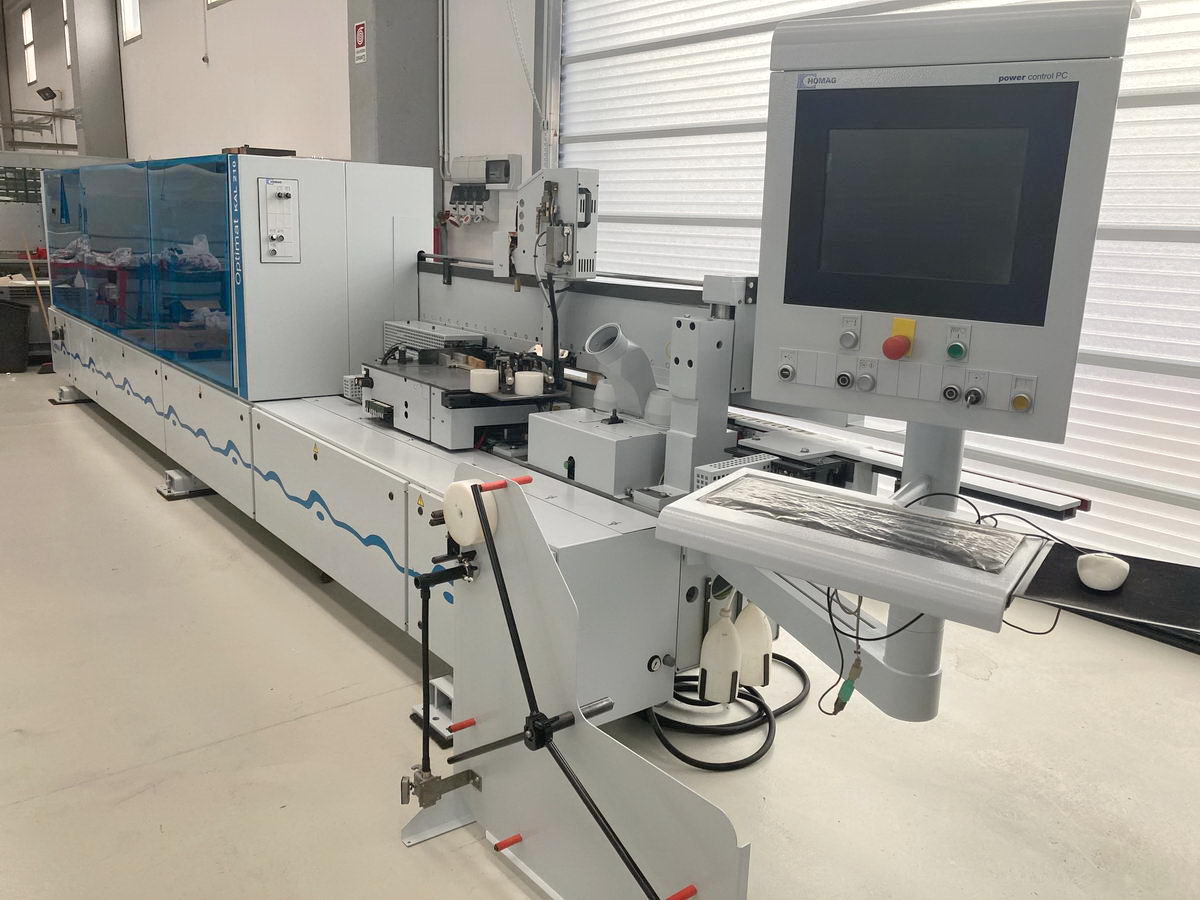

HOMAG KAL 210 /7/A20/S2

Code:
Z07037

Type:
EDGE BANDER

Brand:
HOMAG

Model:
KAL 210 /7/A20/S2

Description

SINGLE SIDE EDGE BANDER (Left)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Edges thickness in strips / lippings (min/max) mm 0,4 / 20
Panels thickness (min/max) mm 12 / 40
Numerical Control Power Control PC 22
Feeding speed (adjustable) m/min 18 – 25
Top pressure system with rubber belt

Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C.
Pre-milling Unit (vertical joint trimmers) 2 x Kw 3
Glueing Unit (Hot Melt Glue + Quick Melt system) A20
Band Pressure zone (N.C. adjustment) “C”

Edge coils supporting unit (No.) 1+2 (tot. 3)
Snipping (end-cutting) unit HL 84 (2 x Kw 0,8)
Rough Trimming unit 2 x Kw 1,5
Profile contour Trimming unit FF 12 (4 x Kw 0,4)
Glue scraping unit PN 10
Finish processing unit ( Glue scraper + Buffing unit)
Milling grooving unit UF (1 x KW 4) 90°
