Description

Year 2019. CE

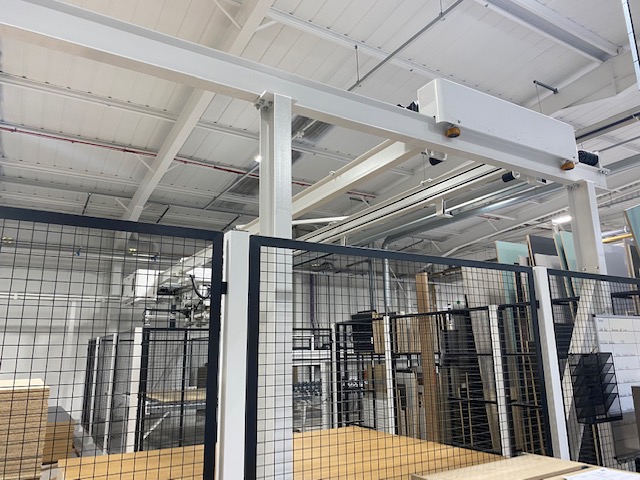

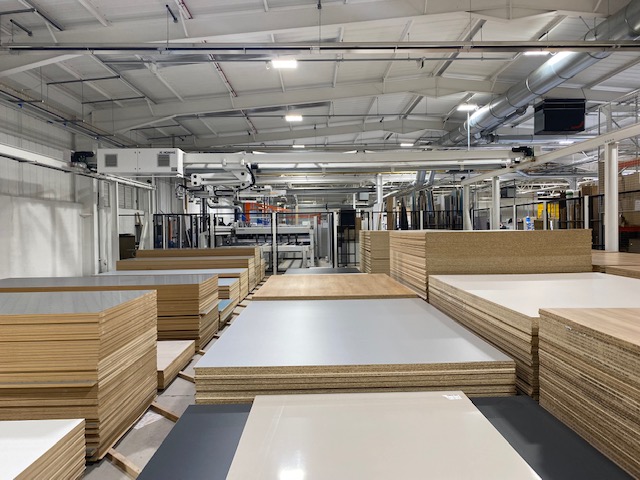

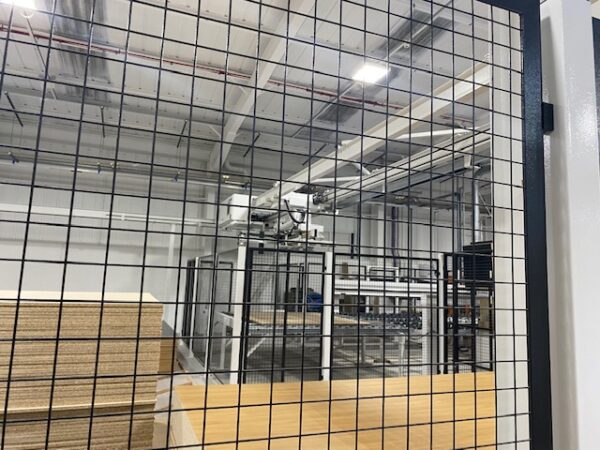

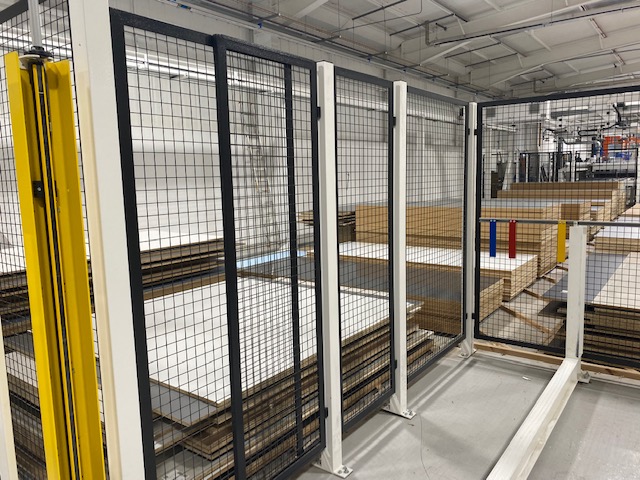

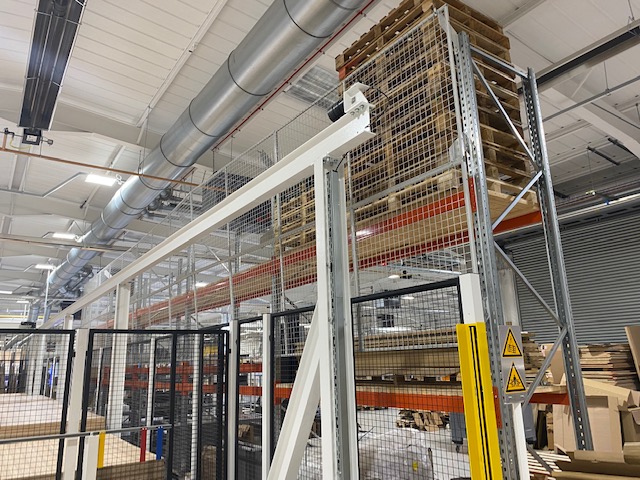

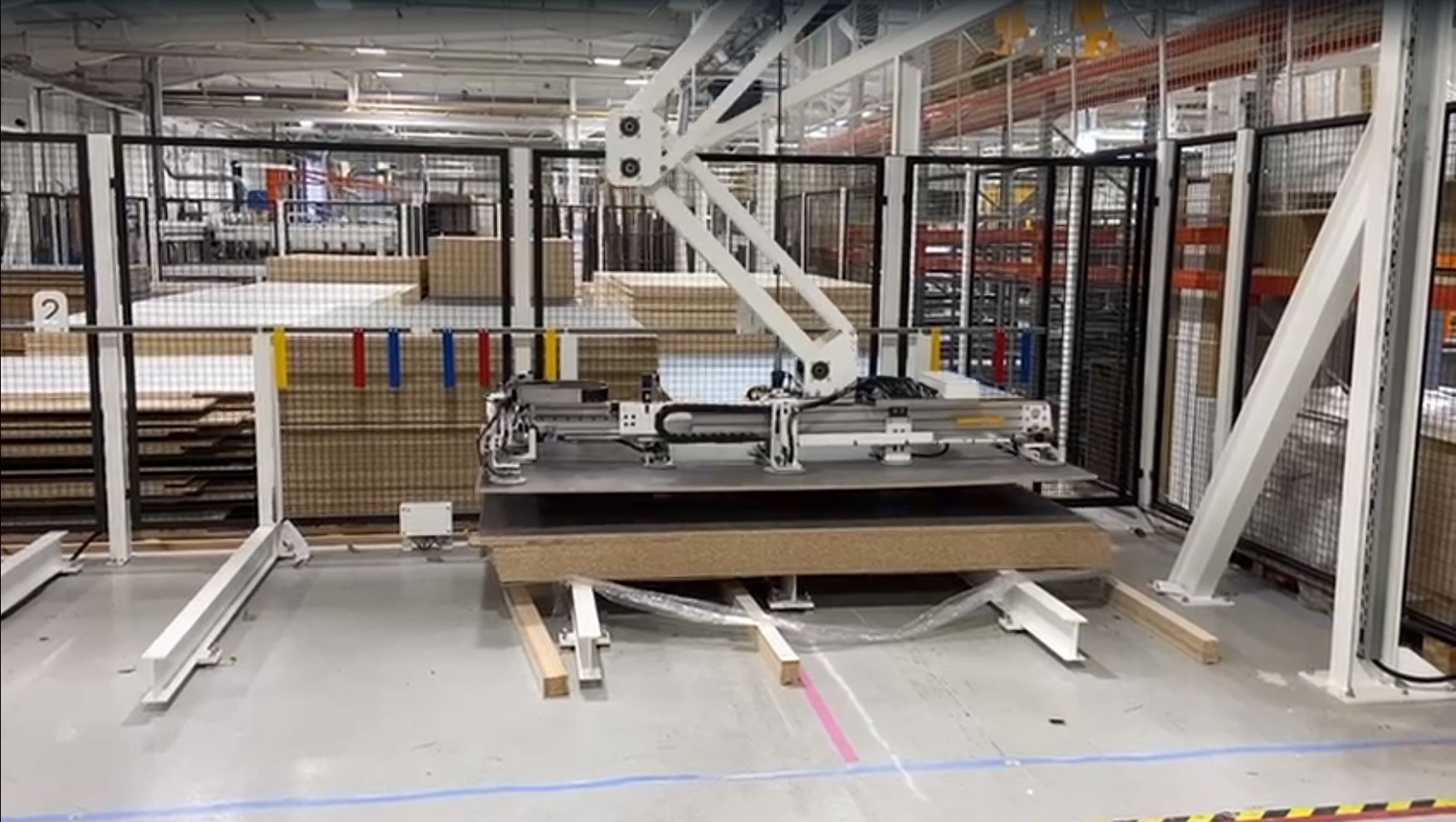

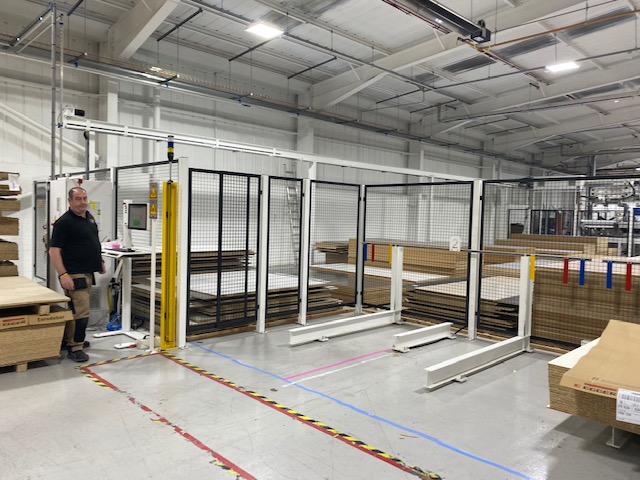

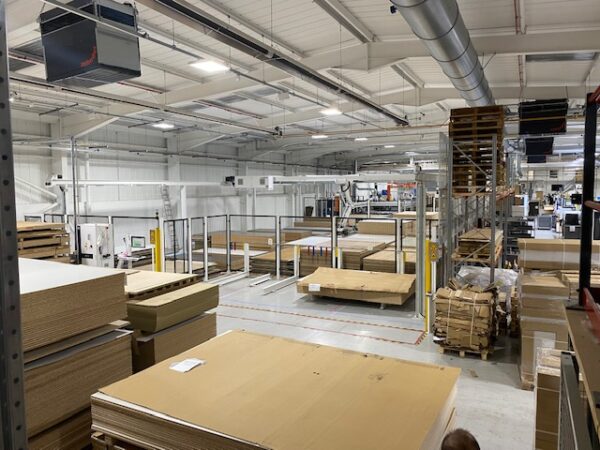

Homag Board Store Type StoreteQ S 200

Dimensions:

Length of frame [ X ] 10000 – 50000 mm
Span width [ Y ] 5000 – 12000 MM (In steps of 100mm)
Stack height Max 2100 mm

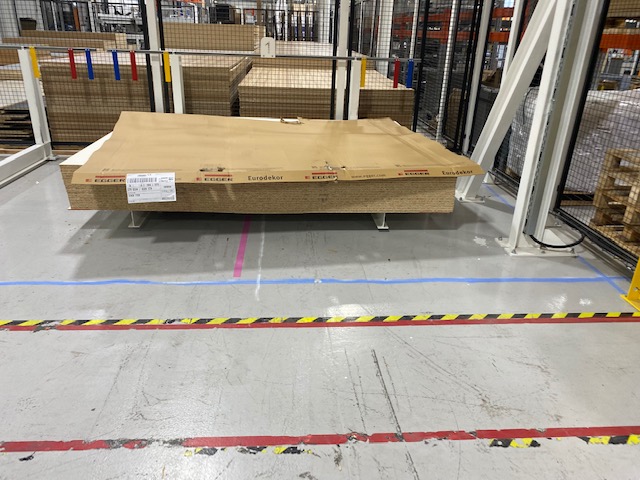

Workpiece and Stack parameters:

Workpiece length 2000 – 4200 mm
Workpiece width  800 – 2200 mm
Workpiece thickness—coated panels  8 – 40 mm
Chipboard raw 12 – 40 mm
M.D.F board raw 16 – 40 mm
Single weight Max 250 kg

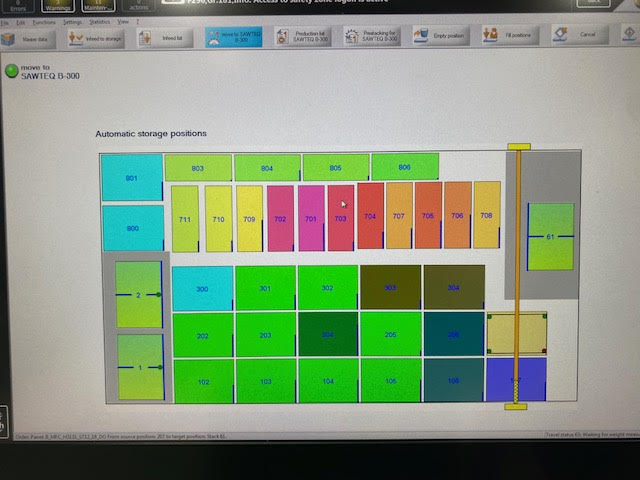

Power control –  PC 23 Powertouch
Modern control based on a windows pc

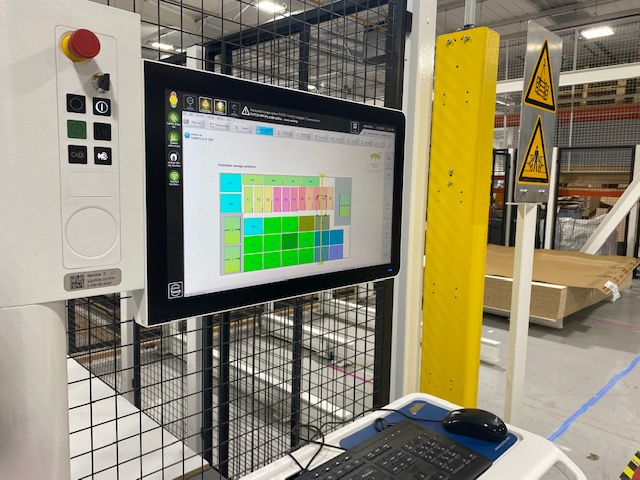

Hardware operating panel with full-HD. Multitouch display in widescreen format.
Plc control accord to international standard iec 61131
Modern industrial pc with operating system windows 7
Backup manager and storage medium for comfortable data backup
Usb connection

Further details available upon request.
