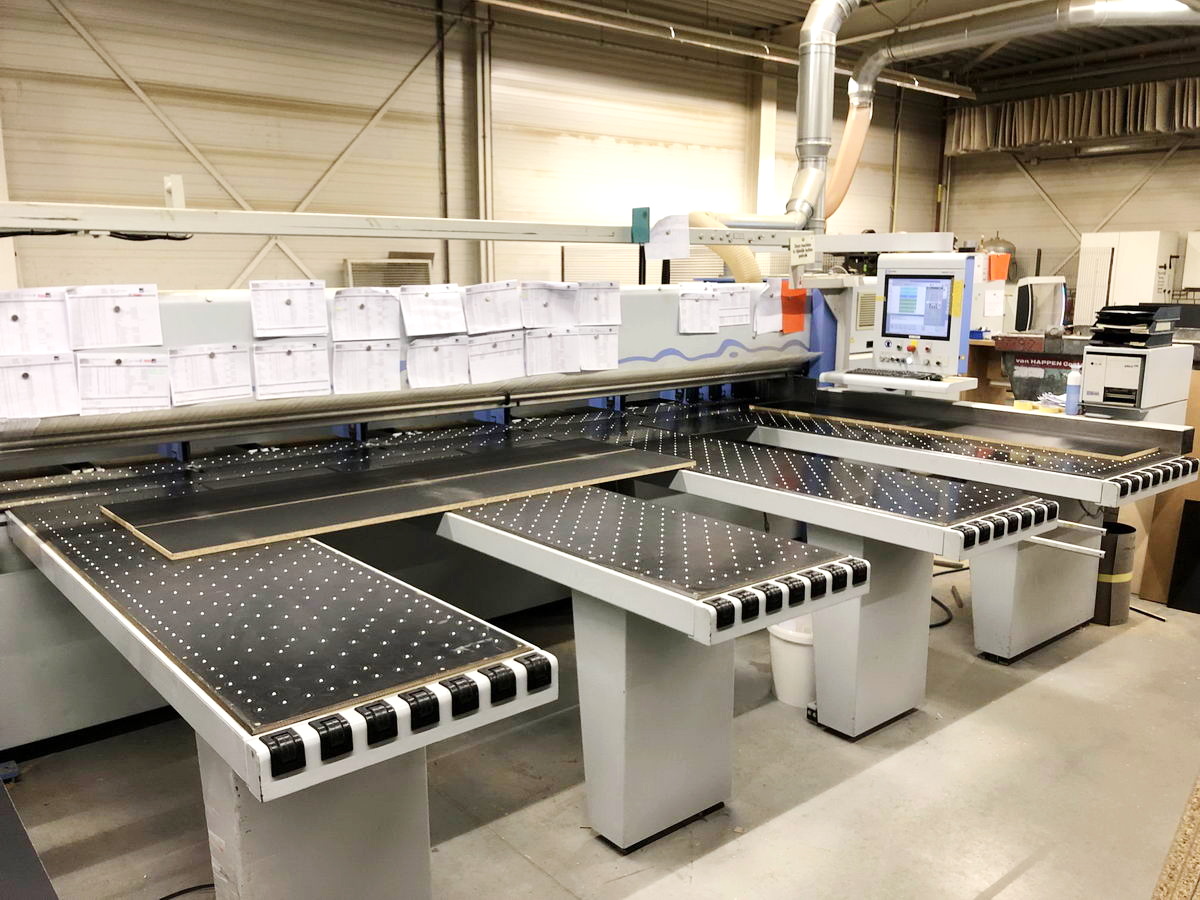

PANEL SAW WITHOT REAR LIFTING TABLE

Numerical Control Power Control 22
Software Cadmatic 4.0 Professional

No. 1 Rear pusher
With No. 7 clamps / grippers + N° 3 Fingers (mm 175 / 375 / 650)

Max. cutting width (mm) 4300
Useful stroke of the pushing system (mm) 4250

Max. blade projection (mm) 95
Scoring Unit (max. diameter saw / power) mm 180 / kW 2,2
Main Sawing Unit (max. diameter saw / power) mm 380 / Kw 18

Adjustable speed of the saw carriage (m/min) 1 – 150

N° 4 Front supporting tables with Air blowing system:
1 x (mm 800 x mm 2160) + 3 x (mm 650 x mm 2160)

Total power Kw 24

Labels Printer OPTIONAL: PICA
Optimisation software OPTIONAL: CAD-PLAN (Cadmatic 4.0)
OPTIONAL: Vaccuum Lifter with Manual Infeeder
