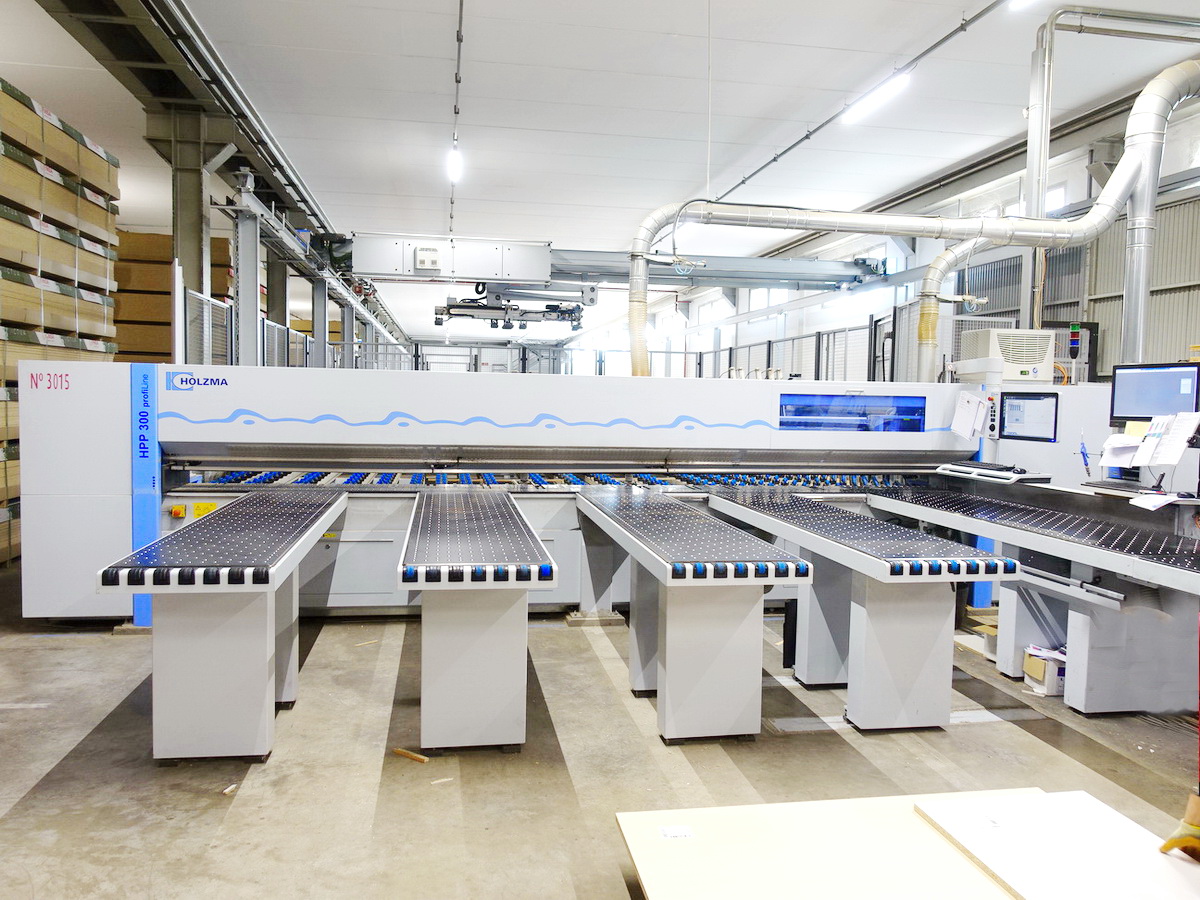

YZ0105) PANEL SAW WITHOUT REAR LIFTING TABLE Mod. HPP 300/56/56 PROFILINE

Numerical Control Power Control POWER TOUCH. Software CADmatic 4 – Professional
Rear pushers (N.) 1 – (PACK PREMIUM). With No. 11 clamps / grippers (1 x Power Concept)
Max. cutting width (mm) 5600. Useful stroke of the pushing system (mm) 5600
Max. blade projection (mm) 80
Scoring Unit (max. diameter saw / power) mm 180 / Kw 1,5
Main Sawing Unit (max. diameter saw / power) mm 350 / Kw 11 (option Kw 18)
Adjustable speed of the saw carriage (m/min) 1 – 150
No. 5 Front supporting tables with Air blowing system (mm 500 x 2810)
Labels Printer: PICA II 108

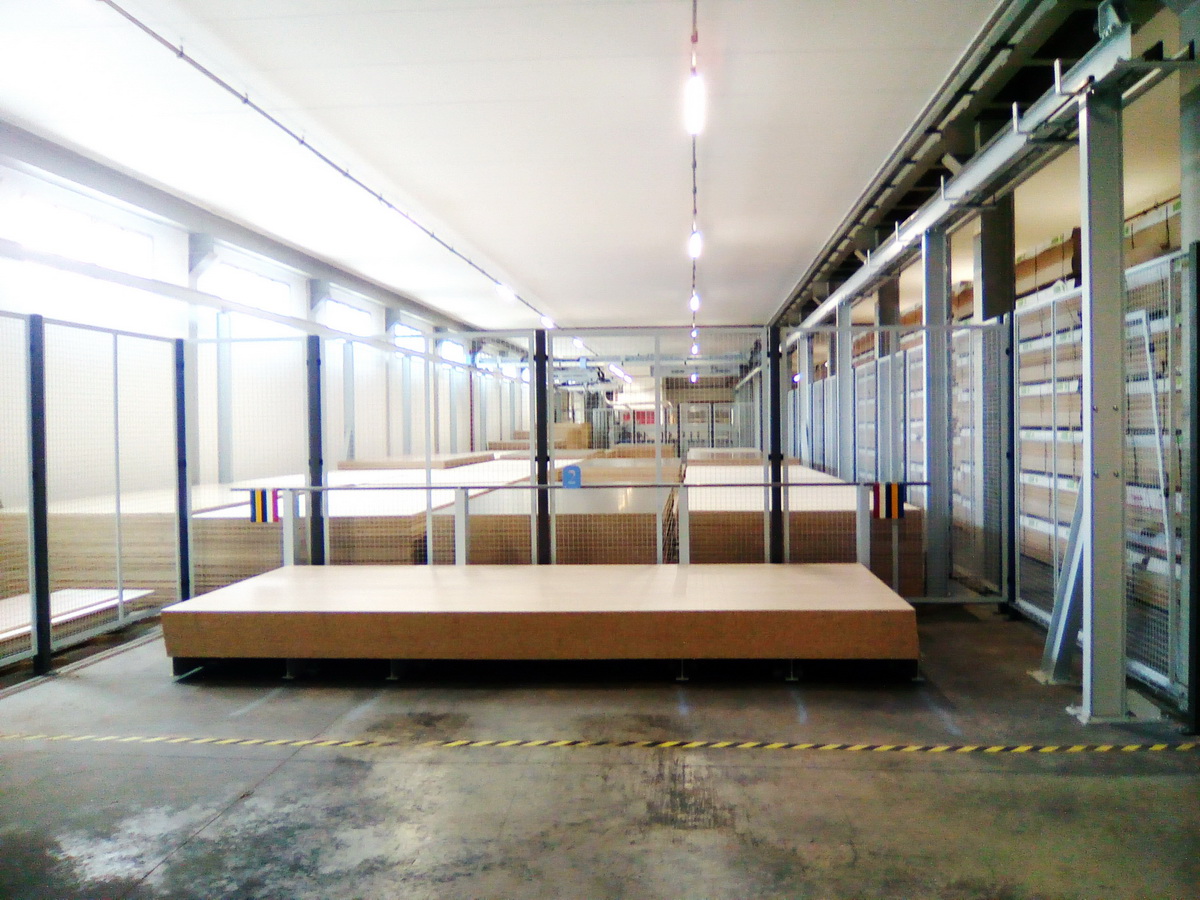

YZ0106) AUTOMATIC REAR STORAGE SYSTEM for PANELS Mod. TFL 211/10/05
Total Space Required (with panel saw) mm 10640 x mm 55660
Mobile upper bridge (on X-axis), with mobile carriage (on Y-axis) and relative vacuum suction cup assembly (mobile on Z-axis)
max. speed Mobile upper bridge (on X axis) 110 m/min
moving carriage speed (on Y axis) 130 m/min
vacuum suction cup group speed (mobile in Z axis) 70 m/min
Vacuum suction cup group, 90° rotating
Automatic management system TLF (by scanner) of the cut panels (but remaining in the warehouse) minimum dimensions mm 800 x mm 2000
Stack dimensions Min mm 2600 x mm 800 / Max mm 5600 x mm 2200
Stack height: mm 1000
