BREMA (BIESSE Group) 2 x Vektor 25-13 + 1 x IDRAK

Code:
JZ1005

Type:
BORING MACHINE (AUTOMATIC BORING LINE)

Brand:
BREMA (BIESSE Group)

Model:
2 x Vektor 25-13 + 1 x IDRAK

Description

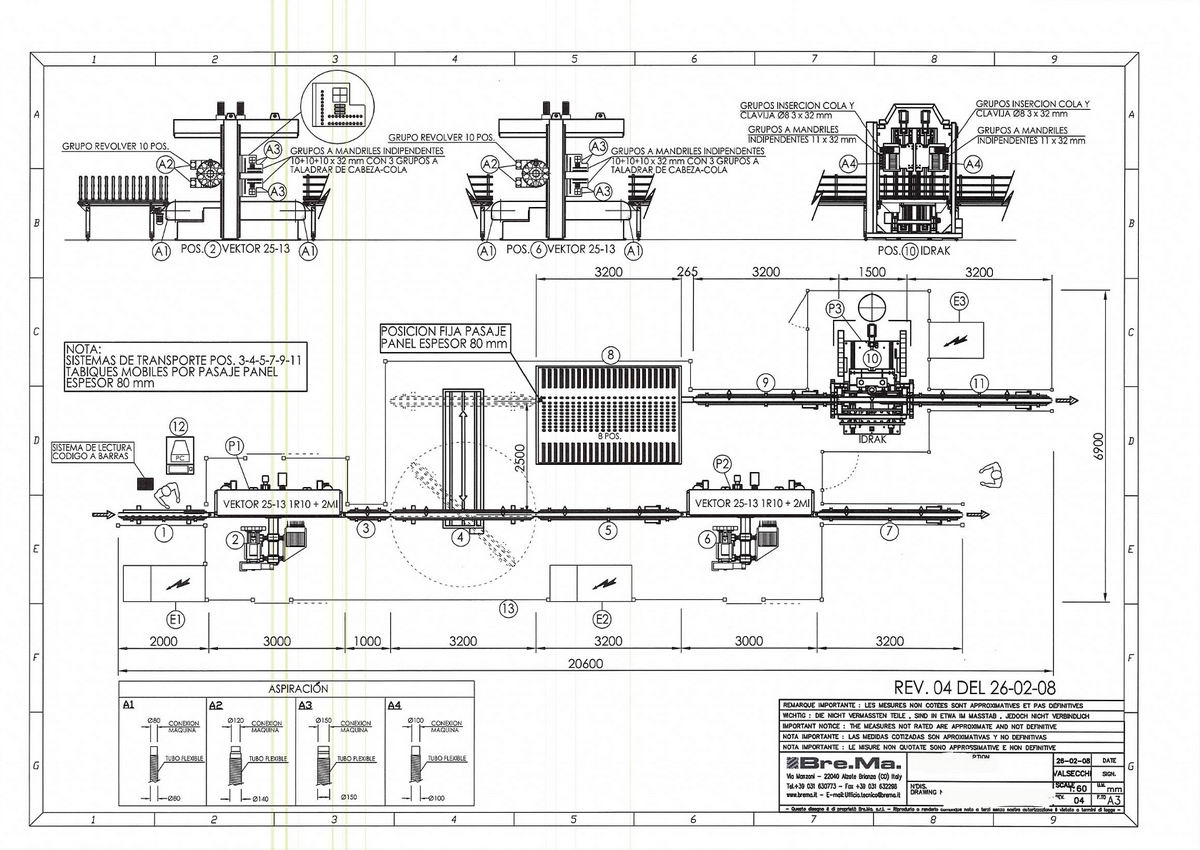

N.C. Flexible Line for Drilling, Routering and Dowels Inserting. Numerical control with “Albatros” software. Total length 20 meters (ca.).  Composed by:

01) Panel Infeeder (panels in vertical position), with motorized belt (2 motors x Kw 0,75),
length mm 2000. With bar code reader

02) CNC (routering and boring machine) Mod. VEKTOR 25-13 / 1R10-2MI
No. 1 Electro-spindle (inverter Kw 7,5) with automatic tools change (revolver with 10 positions)
No. 2 boring heads, each with 20 (10+10) horizontal spindles + 10 vertical spindles +
       6 (3+3) spindles for head drilling (Kw 3,7)

03) Connection transfer, with motorized belt (Kw 0,37 + Kw 0,75), length mm 1000

04) Transfer mm 3200 (180° turnable and/or laterally movable to the left of 2500 mm), with
motorized belt (Kw 0.37 + 1.5) to go straight to the 2nd Vektor or go to Buffer (pos. 8)

05) Connection transfer, with motorized belt (Kw 0,37 + Kw 0,75), length mm 3200

06) CNC (Routering and boring machine) Mod. VEKTOR 25-13 / 1R10-2MI
No. 1 Electro-spindle (inverter Kw 7,5) with automatic tools change (10 positions revolver)
No. 2 boring heads, each with 20 (10+10) horizontal spindles + 10 vertical spindles +
       6 (3+3) spindles for head drilling (Kw 3,7)

07) Outfeed transfer, with motorized belt (Kw 0,37 + Kw 0,75), length mm 3200

08) Accumulation station (Buffer) with 8 positions (for 8 panels), useful length mm 3200
     (belt power Kw 0,37 + Kw 0,75 and feeding power Kw 0,55 + Kw 0,75)

09) Outfeed transfer, with motorized belt (Kw 0,37 + Kw 0,75), length mm 3200

10) CNC (boring and dowels inserting machine) Mod. IDRAK CS
No. 2 Boring heads, each with 11 spindles for head drilling (Kw 3,7)
No. 2 Inserting units, each with 3 glue injectors + 3 dowel inserters

11) Outfeed transfer, with motorized belt (Kw 0,37 + Kw 0,75), length mm 3200
