Description
Description and features:

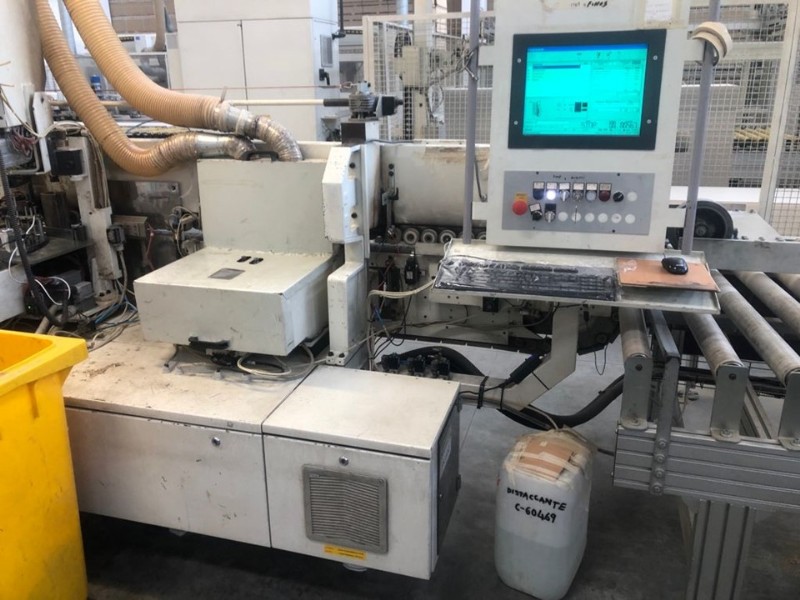

CONTROL SYSTEM
• Numerical control multi axes with PC interface
• Incorporated electrical cabinet
TECHNICAL FEATURES
• Working panel width (min – max): 100 – 3.200 mm
• Working panel length (min – max): 150 – 3.200 mm
• Working panel height with straight edge (min – max): 10-60 mm
• Edge thickness in coils (min – max): 0.3-3 mm
PANEL INTRODUCING AND FEEDING SYSTEM
• Slide driving chain
• Top pressure unit with electronic positioning controlled by NC
• Adjustable in-feeding track
SQUARING UNIT
• In-feed pre-milling unit
GLUING UNIT, LOADING AND PRESSURE OF EDGE
• Anti-adhesive unit
• Gluing unit for EVA glue – Glue tank for hot melt glue and premelter
• Guillotine to cut the edge in rolls with automatic regulation of the shear pressure
• Edge pressure roller with timed rollers on straight profile – Nr. 1 + 5 pressure rollers
EDGEBANDING UNIT
• End trimming unit with nr. 2 motors to cut the excess edge on the front and rear of the panel – Motors with pneumatic tilting from NC
• Fine trimming unit – Automatic pneumatic exclusion.
• Rounding unit with nr. 2 motors for automatic edge corners rounding on top and bottom of the panel
• Milling unit adjustable 0°-90° with automatic intervention . Group with timed intervention and pneumatic movement for horizontal/vertical milling of the panel
• Edge scraping unit for edge finishing in ABS/PVC/PP very thick to eliminate the imperfections derived from previous machining operations on the upper and lower part of the edge – Automatic pneumatic exclusion of the unit
• Glue scraping unit for the removal of excess glue from the join between edge and panel – Automatic exclusion of the unit
• Brushing unit with nr. 2 motors for cleaning and polishing the rounded edge
NORM AND OPTIONAL FOR SECURITY
• Copy of original EC Declaration od Conformity
• Protection and sound-proof cabin of the working units
• Suction system on the top of the protection cabin
