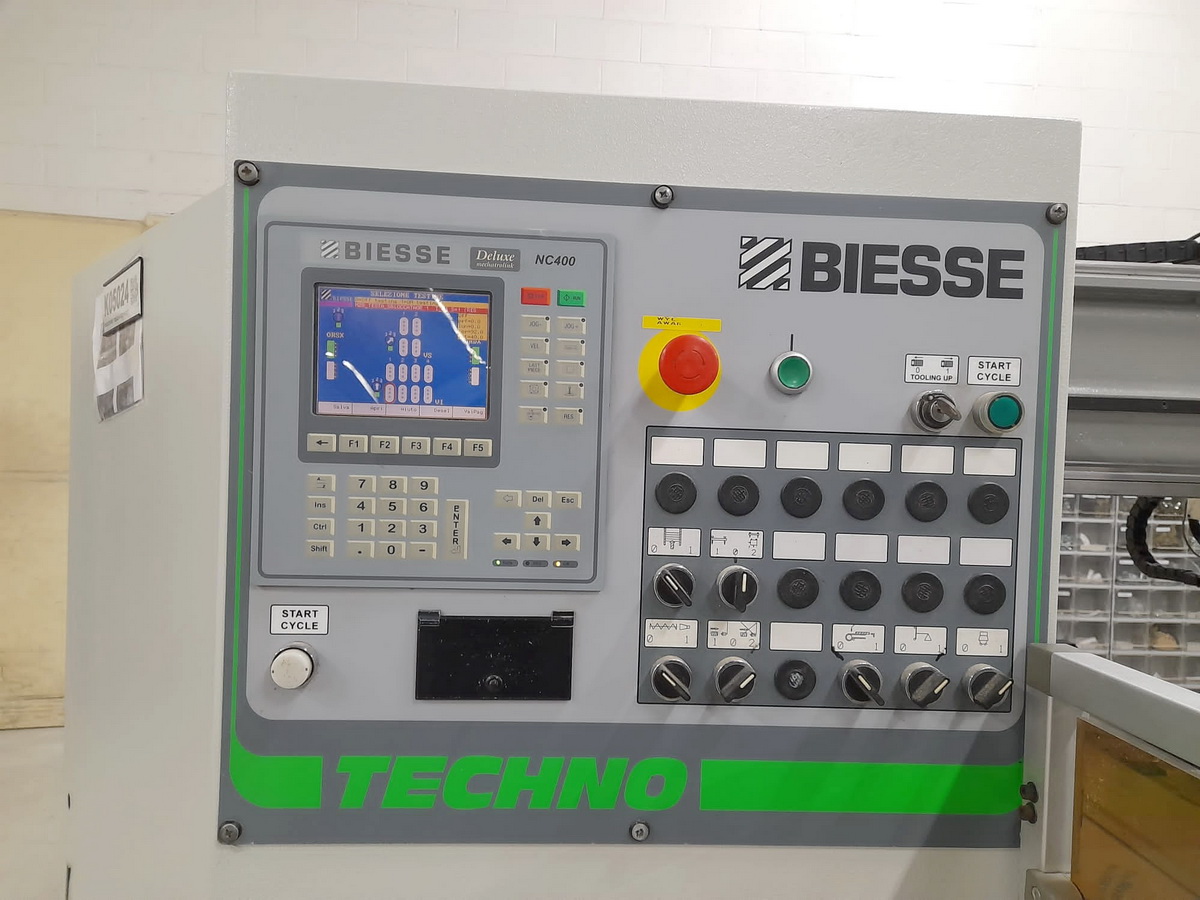

Numerical Control Type NC 400 (with work cycle management software)
Through-feed motorized conveyoring belts (No.) 2
Max. working width (mm) 3200 – Min. working width (mm) 205 (ca.)

No. 2 Horizontal units/supports
Drilling heads for each horizontal unit (N°) 2
Splindles for each horizontal drilling head (N°) 11

No. 4 Bottom vertical units/supports
Drilling heads/blocks for each bottom vertical unit (N°) 2

No. 2 Top vertical units/supports
Drilling heads/block for each top vertical unit (N°) 2

Vertical top pressure clamps (N°) 2
Motorized endless screws to evacuate wastes/chips (N°) 2
Digital quota (axes) display
Total installed power (Kw) 25

The CNC controls the movement (X axe) of the mobile horizontal unit
The CNC controls the movement (Y axe) of the stops

OPTION: Front feed hopper/loader (for narrow pieces: Min 60mm x 260mm)
