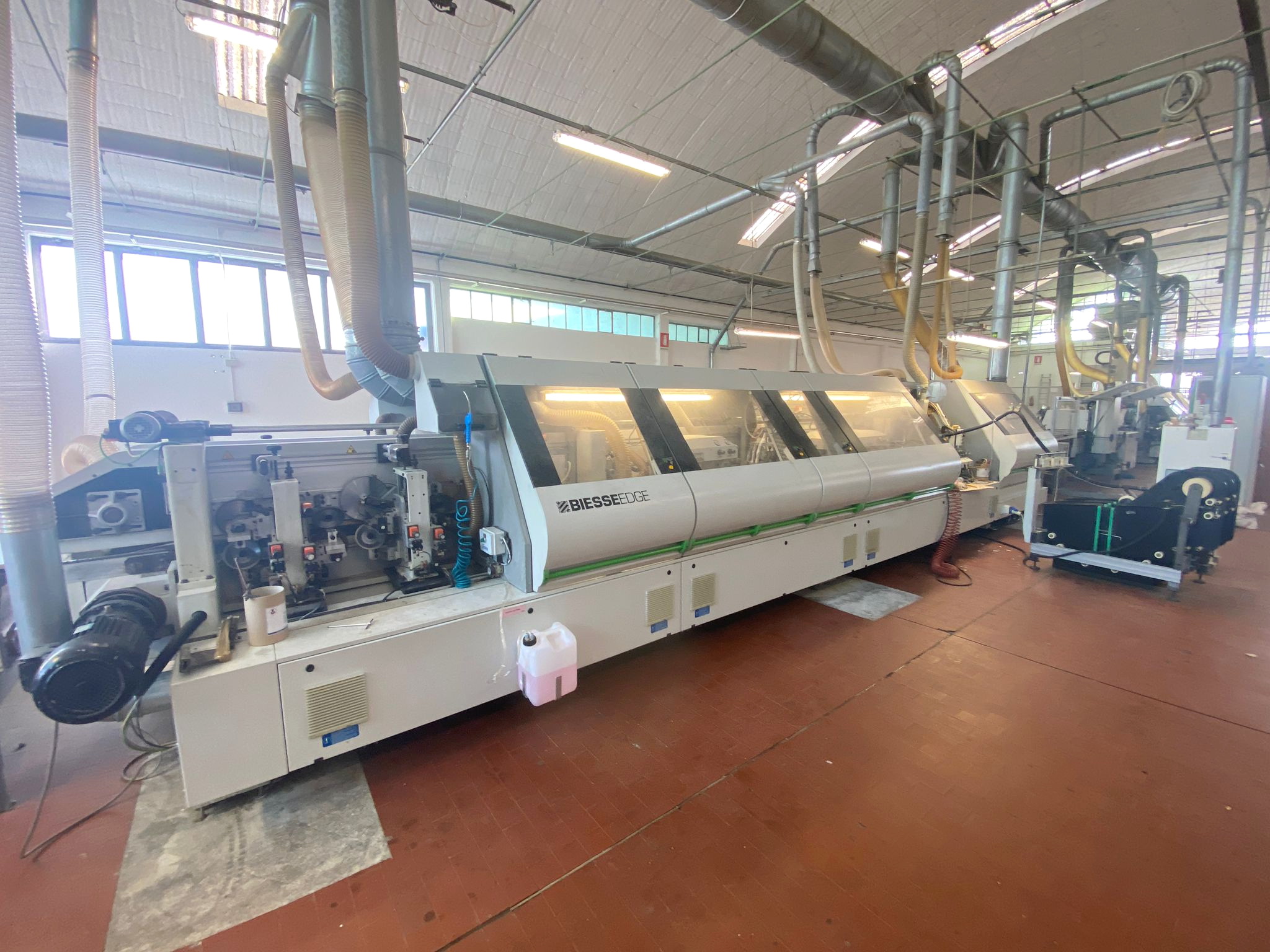

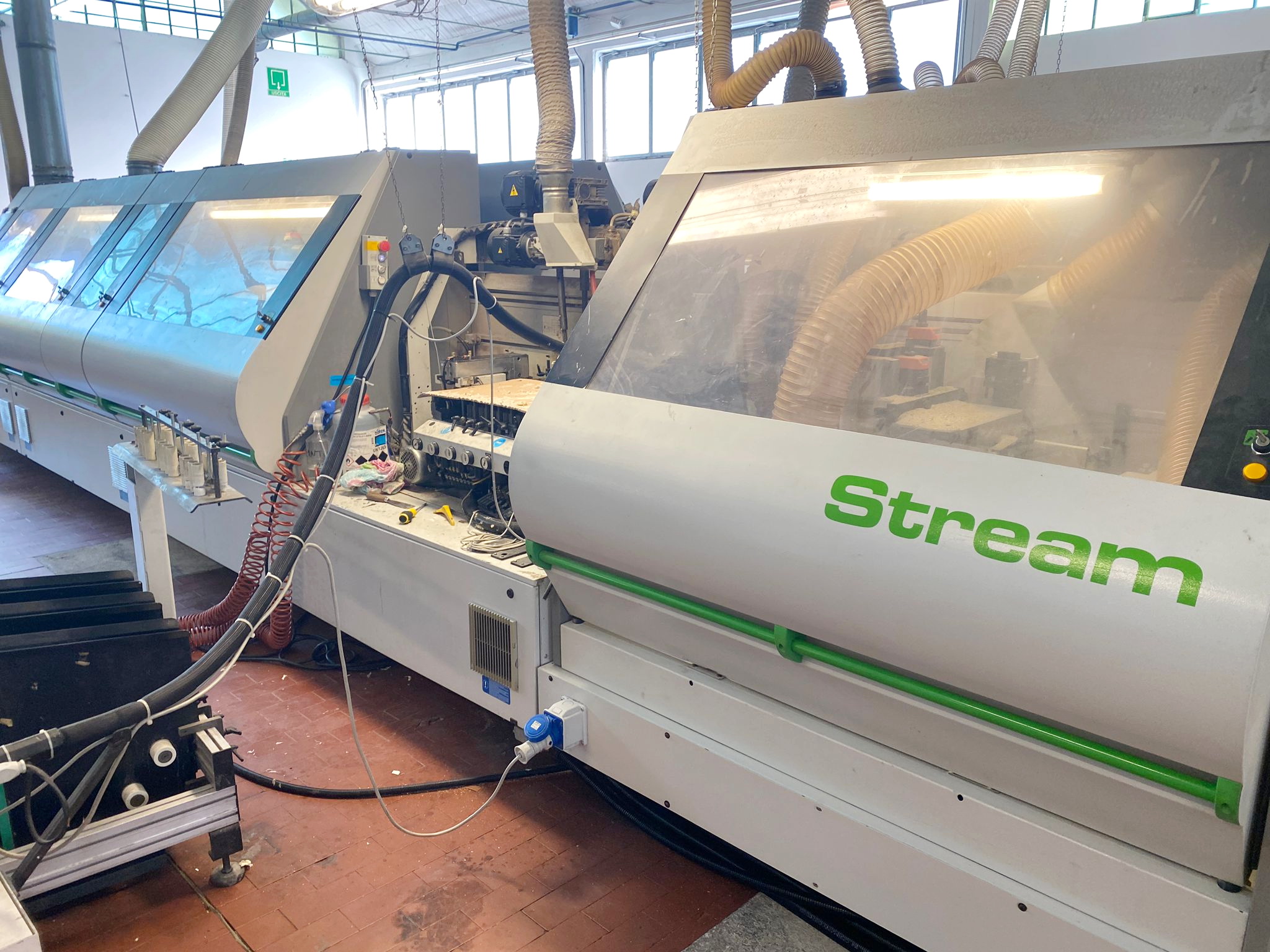

Universal DOUBLE-SIDE SIZING & EDGE BANDING MACHINE (for both 1st and 2nd pass)
Edges (tape) thickness in rolls (min/max) mm 0,3 – 3
Panels thickness (min/max) mm 10 – 60
Working width (min/max) mm 240 – 3200
Numerical Control /Software SINITRA
Adjustable feeding speed (m/min ) 10 – 40 (INVERTER C.N.)
Safety and sound-proof enclosures/cabins
Working line (work units support tables), manual adjustment
Distance (center-axes) of the Disappearing Dogs (mm) 500
SIZING PART (for each side):
Anti-chipping Milling Unit AS 10 PNEU (Kw 8,1)
N° 2 Hogging Units (1 Top + 1 Bottom) DT 10 (Kw 8,1 x 2)
Spraying unit (Anti-sticking liquid)
EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt + Quick Melt Unit) SP3 (HighMelt) Option – PU MC30
Band Pressure zone (N.C. adjustment) . Edge coils supporting unit (No. 6 reels)
Snipping (end-cutting) unit IT 90-M (Kw 0,3 x 2) 28m/min
Fine Trimming unit (Multi-profile) RF 30 (Kw 0,65 x 2) 25°
Corner Rounding unit ( Contour Trimming) AR 34 (Kw 0,35 x 4) Fast System (2 Positions)
Milling grooving Unit 2 x FB 32 (Kw 4,5) (0 – 90°)
Profile edge scraping unit RB 10 – Glue scraping unit RC 05
Spraying Unit (for polishing liquid)
OPTION: Hot Air Heater (to reactivate the color of plastic tape) PH 10
