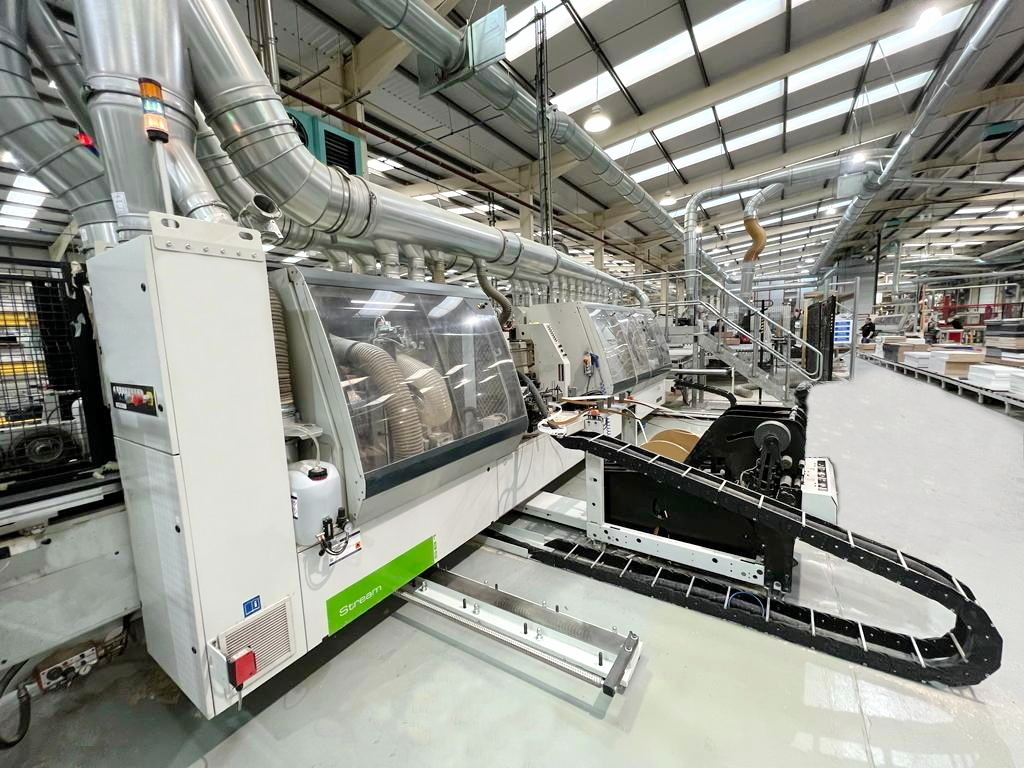

DOUBLE-SIDE SIZING & EDGE BANDING MACHINE – First (1st) machine in a line
Edges (tape) thickness in rolls (min/max) mm 0,3 – 3
Panels thickness (min/max) mm 10 – 60
Working width (min/max) mm 240 – 1200
Numerical Control /Software SINITRA
Adjustable feeding speed (m/min ) 10 – 40 (INVERTER C.N.)
Safety and sound-proof enclosures/cabins
Working line (work units support tables), manual adjustment
SIZING PART (for each side):
No. 2 Hogging Units (1 Top + 1 Bottom) DT 10 (Kw 8,1 x 2)
Jumping Milling Unit FS 30 (Kw 5.8) PNEU – 0° – 90° / Free space
Spraying unit (Anti-sticking liquid)
EDGE-BANDING PART (for each side):
Glueing Unit (P.U.R. Glue + Quick Melt unit) PURBlue EC + EDGE CONTROL EC40 (40 m/min)
Height adjustment of the band by N.C. (Z AXIS)
Band Pressure zone (N.C. adjustment). Edge coils supporting unit (No. 6 reels)
Rough Trimming unit RS10 (2 x Kw 2)
Fine Trimming unit (Multi-profile, by N.C.) RF40 (2 x Kw 1)
Milling grooving Unit FB40 (Kw 5 x 1) 0 – 90°
Profile Scraping unit (Multi-profile, by N.C.) RB40
Glue scraping unit RC 20
Buffing unit SZ30 (2 x Kw 0,37)
OPTION: Hot Air Heater (to reactivate the color of plastic tape) PH 10
