Description

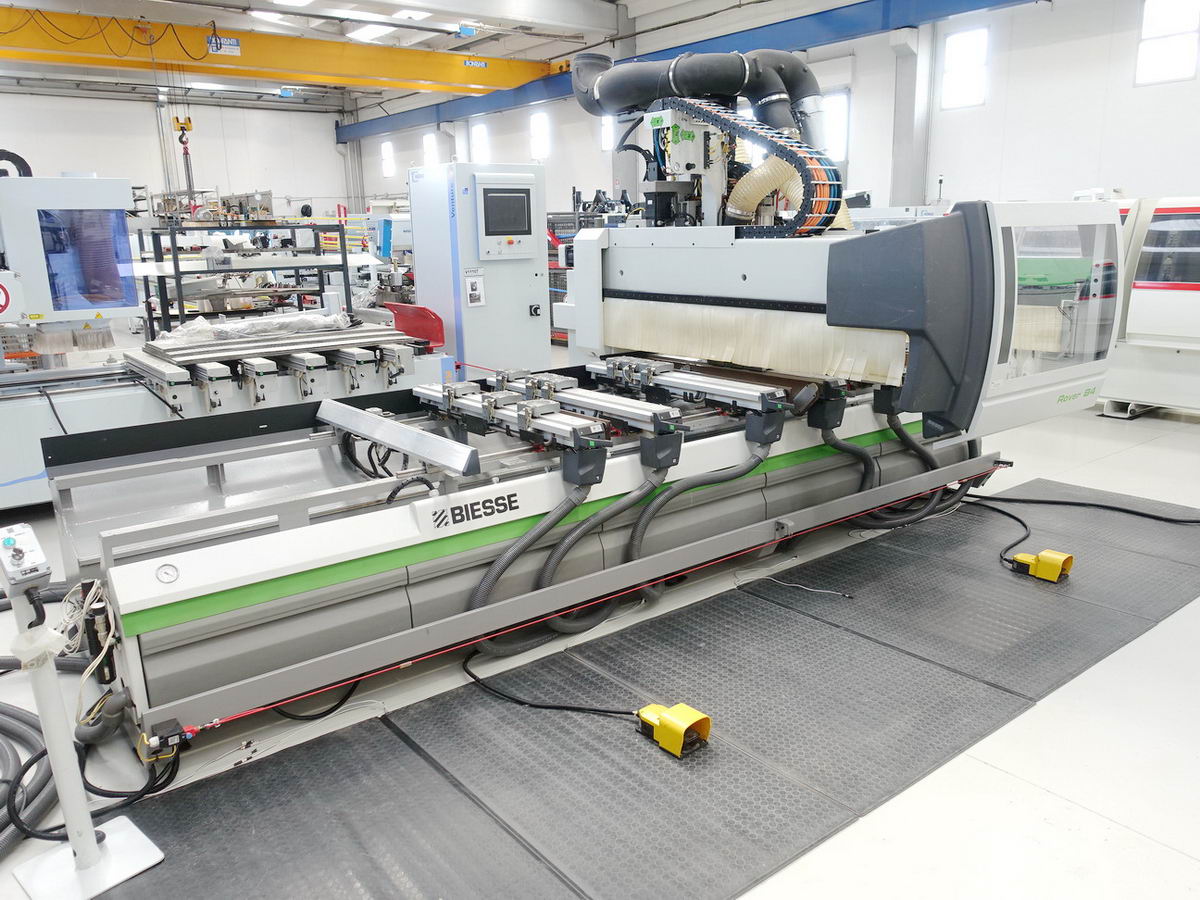

C.N.C. WORKING CENTER (POINT TO POINT) with 4 axis (X-Y-Z-C)
Goose-neck type
Numerical Control XP 600, with Software BiesseWorks
Safety cabin (enclosure) of the working head
Front emergency carpets
Working table with pods and rails
Support rails quantity 6 ATS (mm 1280)
Automatic Tools Changing System 1+1 (tot. 2)
Tools storage plate (No. Of folds- positions) 6 + 12 (revolver)
Max. useful working area (X – Y – Z) mm 3390 x 1342 x 180
Working areas (No.) 2
Vacuum pump (capacity m3/h) 90
Separate electric and command cabinet
WORKING GROUPS (TOP):
– Independent vertical boring spindles (No.) 14
– Independent horizontal boring spindles (No.) 8
– Horizontal Unit with double exit (one side is with Circular Grooving Saw, tiltable 0°- 90°, max
diam. mm 180; other side with horizontal routering bit)
– Vertical electro-spindle ISO 30 (power Kw 12)
