BIESSE + RBO (BIESSE Group) 2 Techno FDT CN + 1 SDT CN + 2 Tornado

Code:
KZ2207

Type:
BORING MACHINE (AUTOMATIC BORING LINE)

Brand:
BIESSE + RBO (BIESSE Group)

Model:
2 Techno FDT CN + 1 SDT CN + 2 Tornado

Description

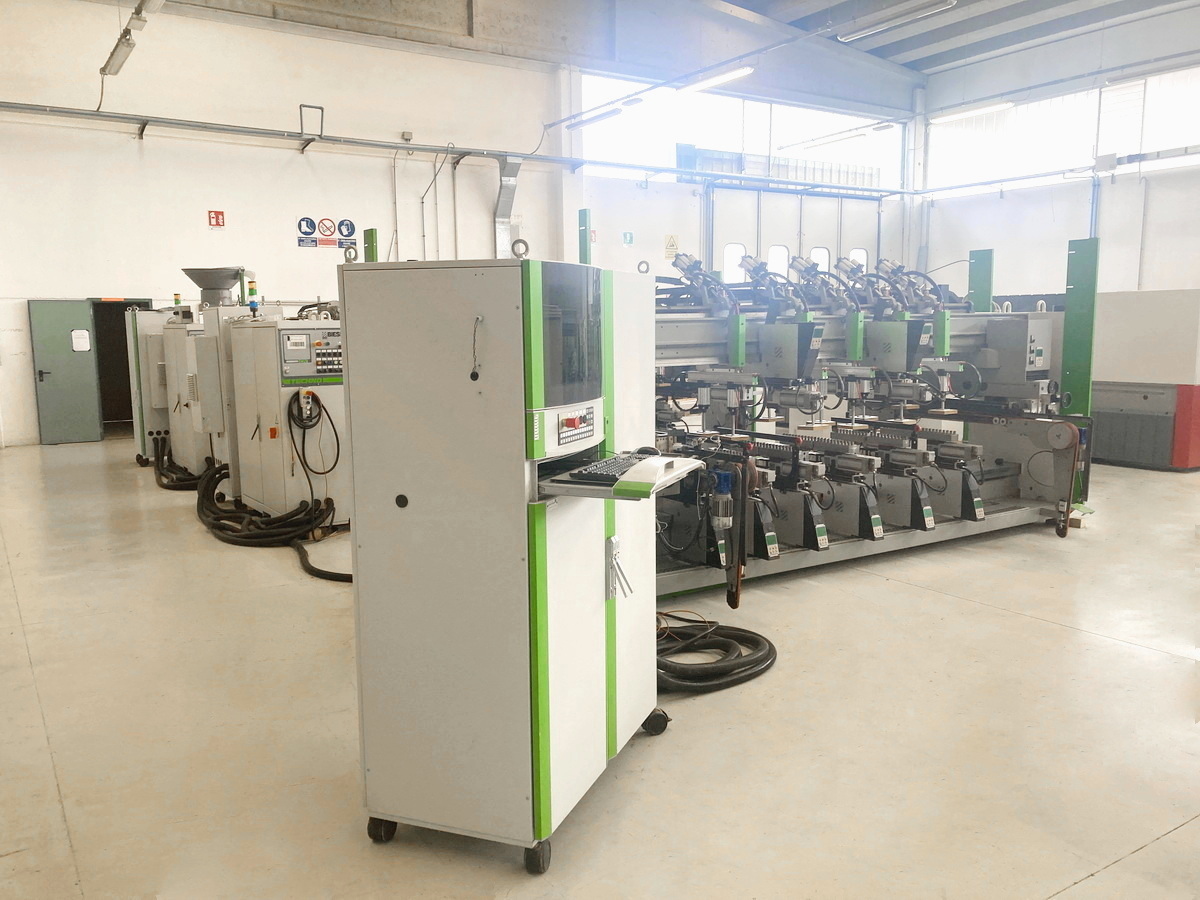

Automatic ELECTRONIC Drilling and Dowels inserting LINE, CNC controlled:
KZ0040) LOADER “RBO” Tornado C 1300 with motorized rollers table and conveyoring belts to in-feed the 1st multi-borer

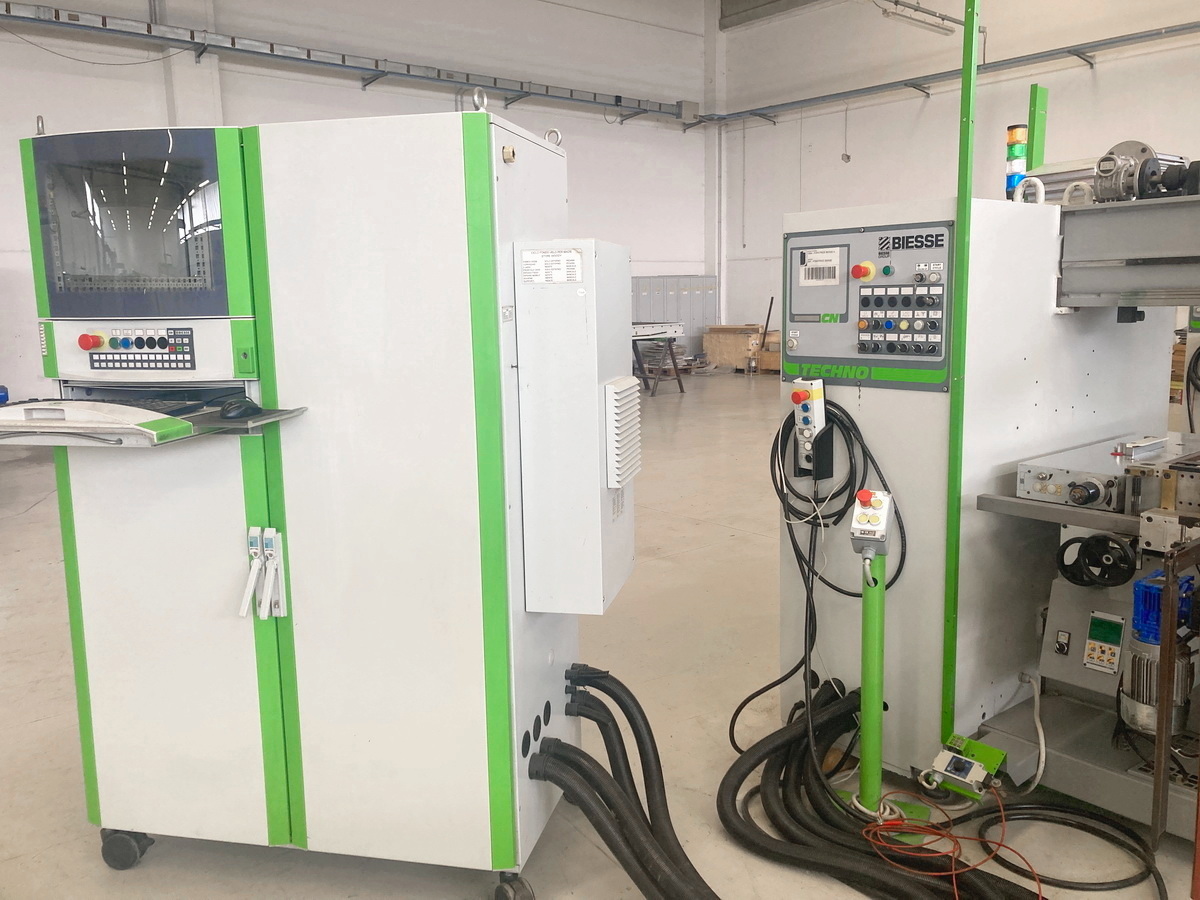

KZ0041) THROUGH-FEED MULTI-BORER “BIESSE” Techno FDT with CNC
– N° 2 horizontal units (each with 2 drilling heads at 11 spindles each, HP 1.8 each),
– N° 7 bottom vertical units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– N° 4 top vertical units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– N° 5 top pressing devices + N° 2 endless screws to evacuate the wastes.
With CNC NC 500 (Software Tooling System + Woodmaster)

KZ0042) THROUGH-FEED MULTI-BORER “BIESSE” Techno FDT with CNC
– No. 2 horizontal units (each with 2 drilling heads at 11 spindles each, HP 1.8 each),
– No. 6 bottom vertical units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– No. 2 top vertical units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– No. 5 top pressing devices + N° 2 endless screws to evacuate the wastes.

KZ0043) THROUGH-FEED MULTI-BORER & DOWELS INSERTER “BIESSE” Techno SDT with CNC
– No. 2 horizontal units (each with 6 inserting nozzles, such as Glue injectors and dowel drivers)
– No. 4 bottom units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– No. 2 top vertical units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– No. 4 Top pressing devices + No. 2 endless screws to evacuate the wastes.

KZ0044) STACKER “RBO” Tornado SC/FE 1300 with motorized rollers table and conveyoring
belts out-feed from 2nd multi borer (and dowels inserter)
