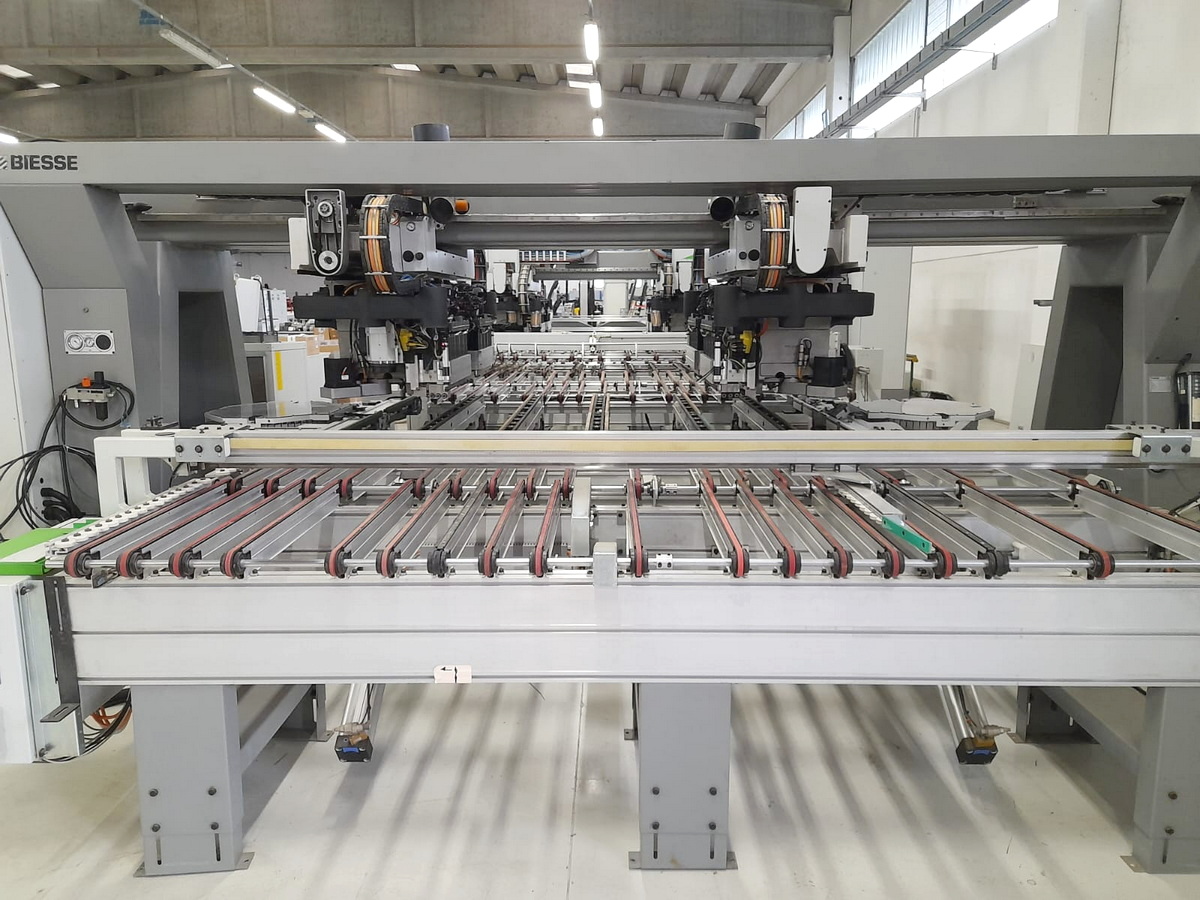

Gantry (Portal) machine, belonging to the line (SOFIT code: JZ1030)
Movable panel (workpiece), movable working head (Horizontal position of the panel/workpiece)
Numerical Control with Software BiesseWorks
Safety cabin (enclosure) of the working heads

Panels (workpieces) feeding by No. 5 motorized belts

Minimum workpieces dimensions (X – Y – Z) mm 240 x 140 x 12
Maximum workpieces dimensions (X – Y – Z) mm
Two panels simultaneously processables (in Y axe) mm 800 + mm 800

Motorized carpet to evacuate chips and wastes
Separate electric and command cabinet
Total installed power (Kw) 39

WORKING GROUPS (TOP) – No. 4 HEADS:
No. 128 Independent vertical boring spindles (4 heads x 32 spindles = 128 tot.)
No. 36 Independent horizontal boring spindles (4 heads x 9 spindles = 36 tot.)

No. 2 Vertical electro-spindle (ISO 30), motor power (2 x Kw 3,7)
No. 2 Automatic Tools Changing System ((1 x drill bits + 1 x router cones)
No. 4 Tools storage systems (2 x No. 56 of folds for drill bits + 2 x No 3 folds for router cones)

No. 2 predispositions to install other 2 electro-spindles
